Description
The WEL-RGP28 features a USB-AM connector with a UL2725 cable.

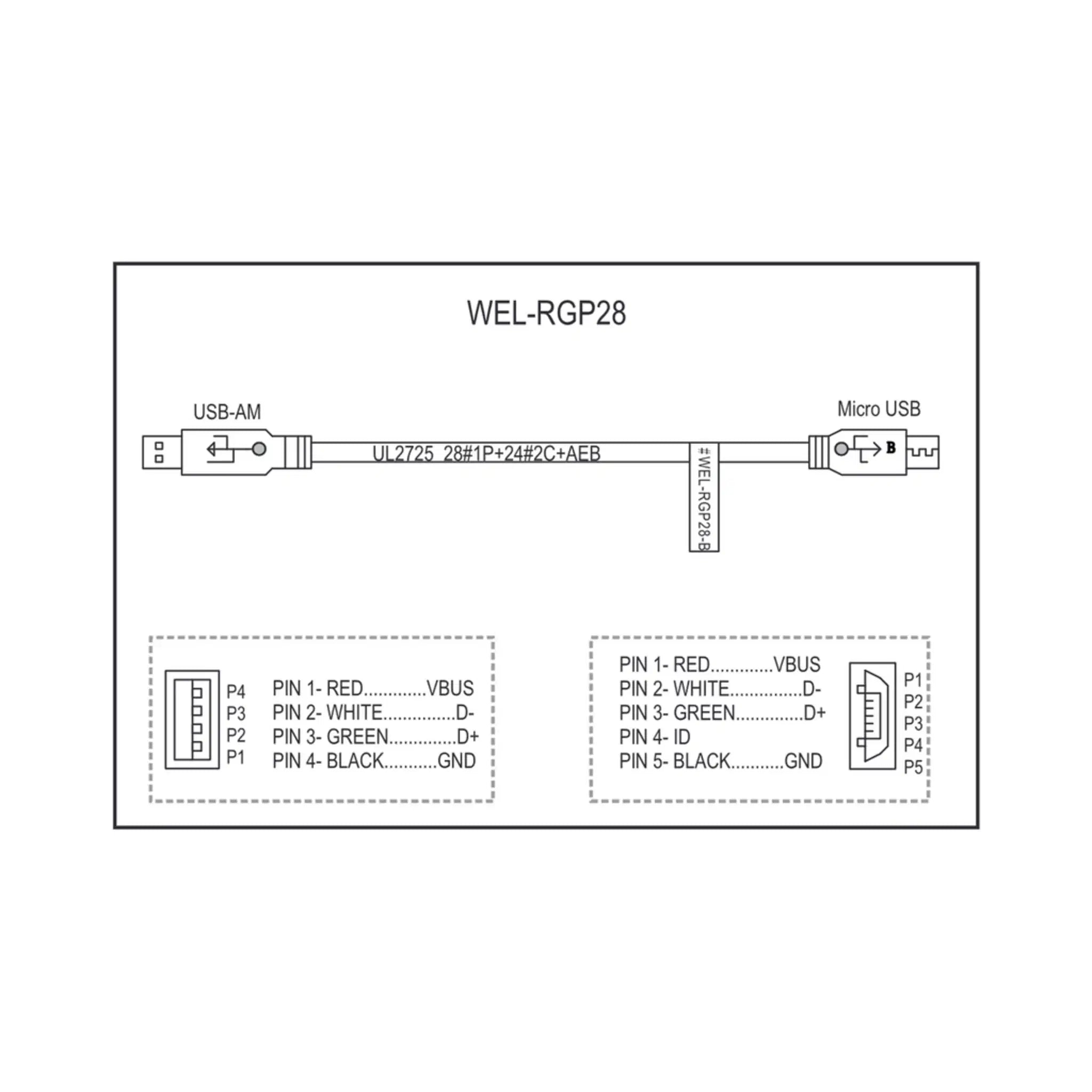

WEL-RGP28 Interface Details
WEL-RGP28
USB-AM
Cable: UL2725 28#1P+24#2C+AEB
Connector: Micro USB
Micro USB Pin Configuration (Part 1)
| Pin | Color | Function |
|---|---|---|
| P4 PIN 1 | RED | VBUS |
| P3 PIN 2 | WHITE | D- |
| P2 PIN 3 | GREEN | D+ |
| P1 PIN 4 | BLACK | GND |
Micro USB Pin Configuration (Part 2)
| Pin | Color | Function |
|---|---|---|
| PIN 1 | RED | VBUS |
| PIN 2 | WHITE | D- |
| PIN 3 | GREEN | D+ |
| PIN 4 | N/A | ID |
| PIN 5 | BLACK | GND |
Technical Specifications
| Brand | ICT |
