Description
WEL-RID04 is a 12 V DC extension cable for RS232 A0 interface, designed to extend connectivity for ICT WEL-RL705-1 harness setups.
WEL-RID04 RS232 A0 Interface Cable
| Interface | Used Voltage | Usage |
|---|---|---|
| RS232 A0 | 12V DC | Extension Wire for WEL-RL705-1 |

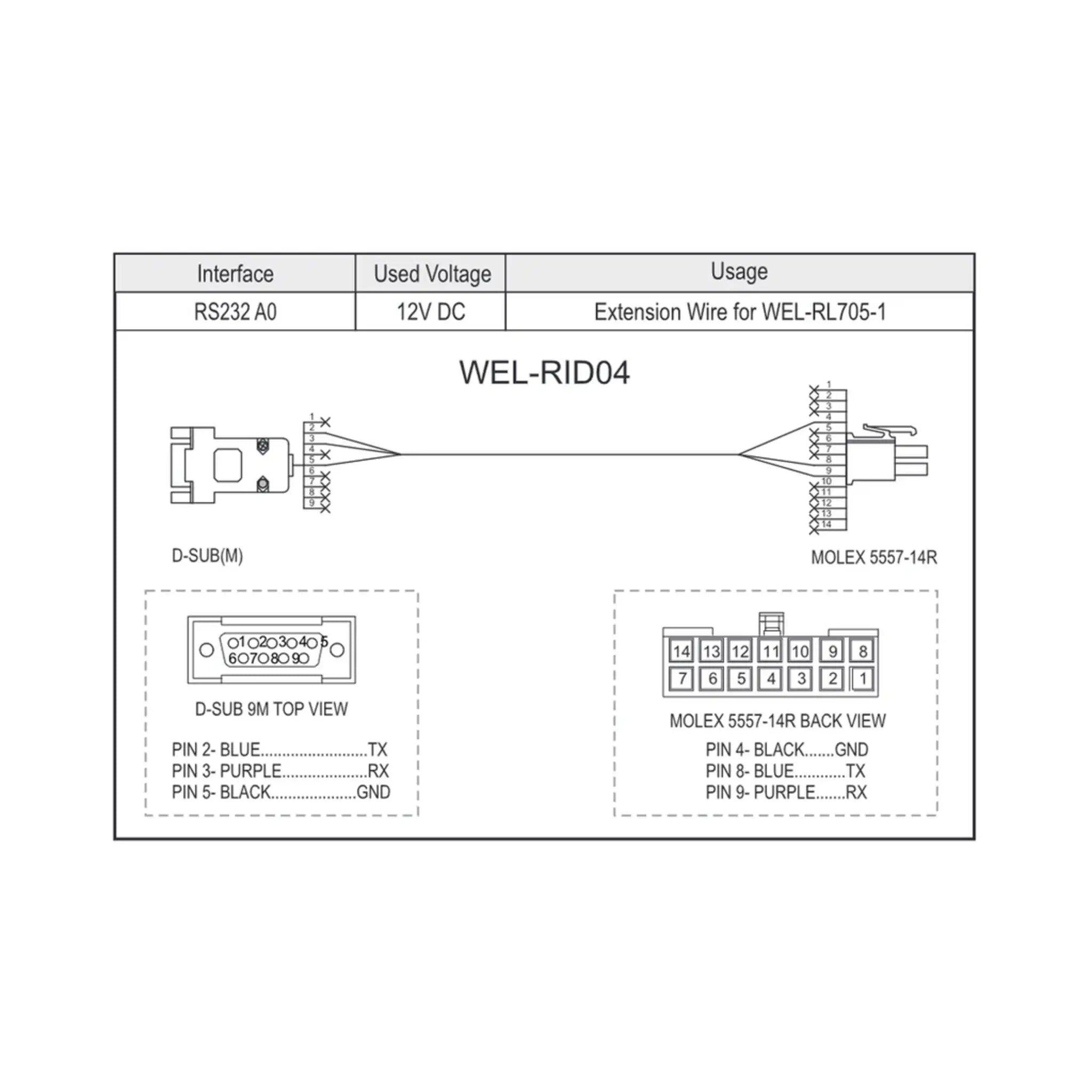

D-SUB (M) & MOLEX 5557-14R Pin Configuration
D-SUB 9M (Top View)
| Pin | Color |
|---|---|
| PIN 2 | BLUE |
| PIN 3 | PURPLE |
| PIN 5 | BLACK |
MOLEX 5557-14R (Back View)
| Pin | Color |
|---|---|
| PIN 4 | BLACK |
| PIN 8 | BLUE |
| PIN 9 | PURPLE |
Technical Specifications
| Brand | ICT |
