Description
The WEL-RNK10-1 supports RS232 and ICT Protocol interfaces using 12V DC

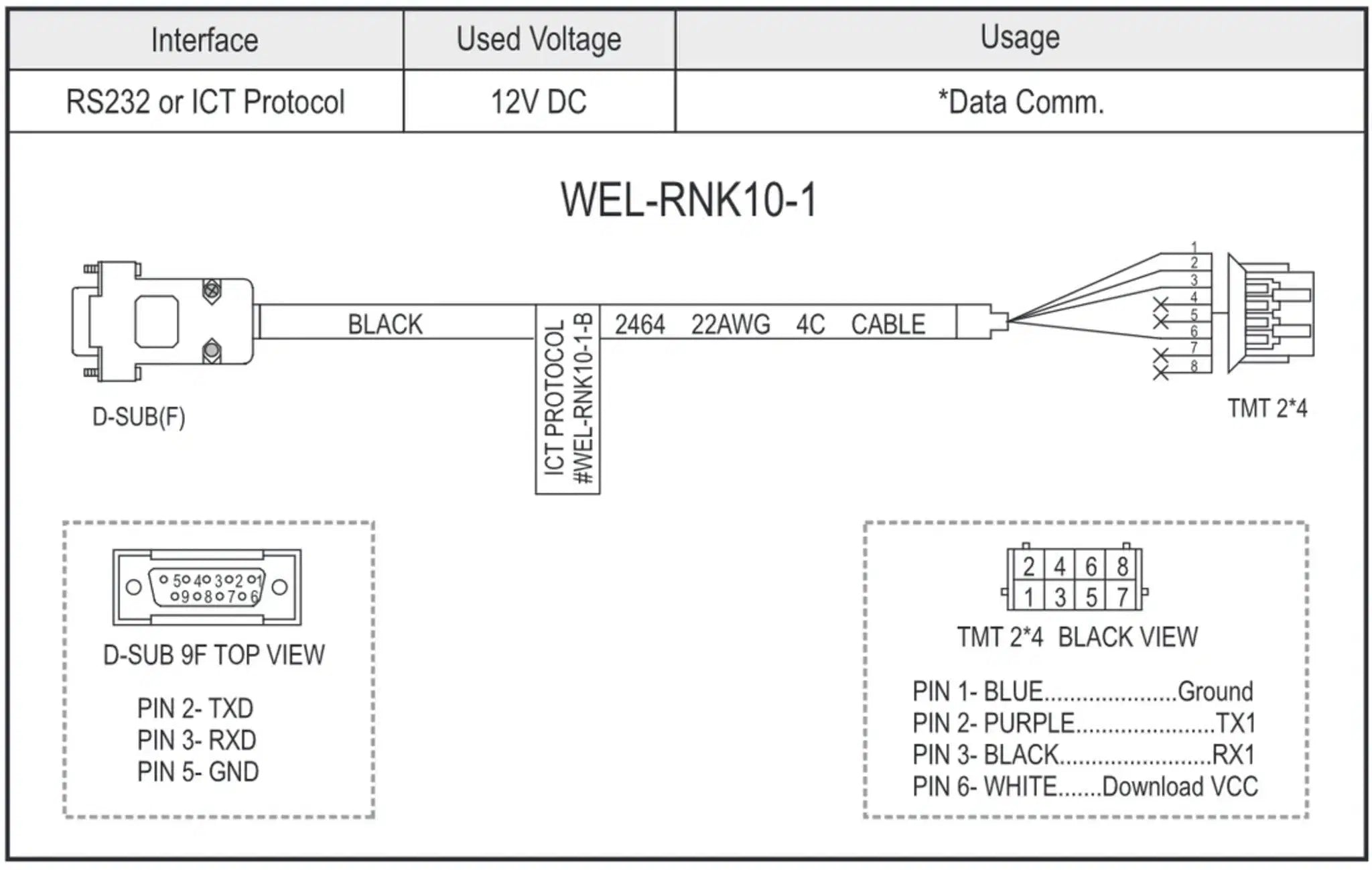

WEL-RNK10-1 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| RS232 or ICT Protocol | 12V DC | *Data Comm. |
WEL-RNK10-1
Connectors
- BLACK D-SUB(F)
- BLACK ICT PROTOCOL #WEL-RNK10-1-B
Cable Specifications
Cable: 2464 22AWG 4C CABLE
TMT 2*4
D-SUB 9F TOP VIEW
| Pin | Function |
|---|---|
| PIN 2 | TXD |
| PIN 3 | RXD |
| PIN 5 | GND |
TMT 2*4 BACK VIEW
| Pin | Color | Function |
|---|---|---|
| PIN 1 | BLUE | Ground |
| PIN 2 | PURPLE | TX1 |
| PIN 3 | BLACK | RX1 |
| PIN 6 | WHITE | Download VCC |
Technical Specifications
| Brand | ICT |
