ICT Bill Validator Selection Guide
PA7-E, LX7 Series and TAO-A — key differences, power options, stackers and service advantages
Quick Comparison
| Model | Power | Stacker | Key Advantage | Common Application |
|---|---|---|---|---|
| PA7-E | 110V or 12V | 400 or 800 notes | New PA7 replacement with side USB updating | PA7 replacement and upgrades |
| LX7-2 | 12V DC | 200 or optional 600 notes | 12V operation plus JCM ID003 support | Gaming and amusement equipment |
| LX7-1 | 12V with 110V adapter | 200 or optional 600 notes | External AC-to-DC power adapter | 110V machines using 12V LX7 |
| LX7-A | 110V built in | 200 or optional 600 notes | No external adapter required | 110V applications and POG machines |
| TAO-A | 110V or 12V | Typically 500 notes | High-capacity removable cassette | Higher-volume locations |
Product Details

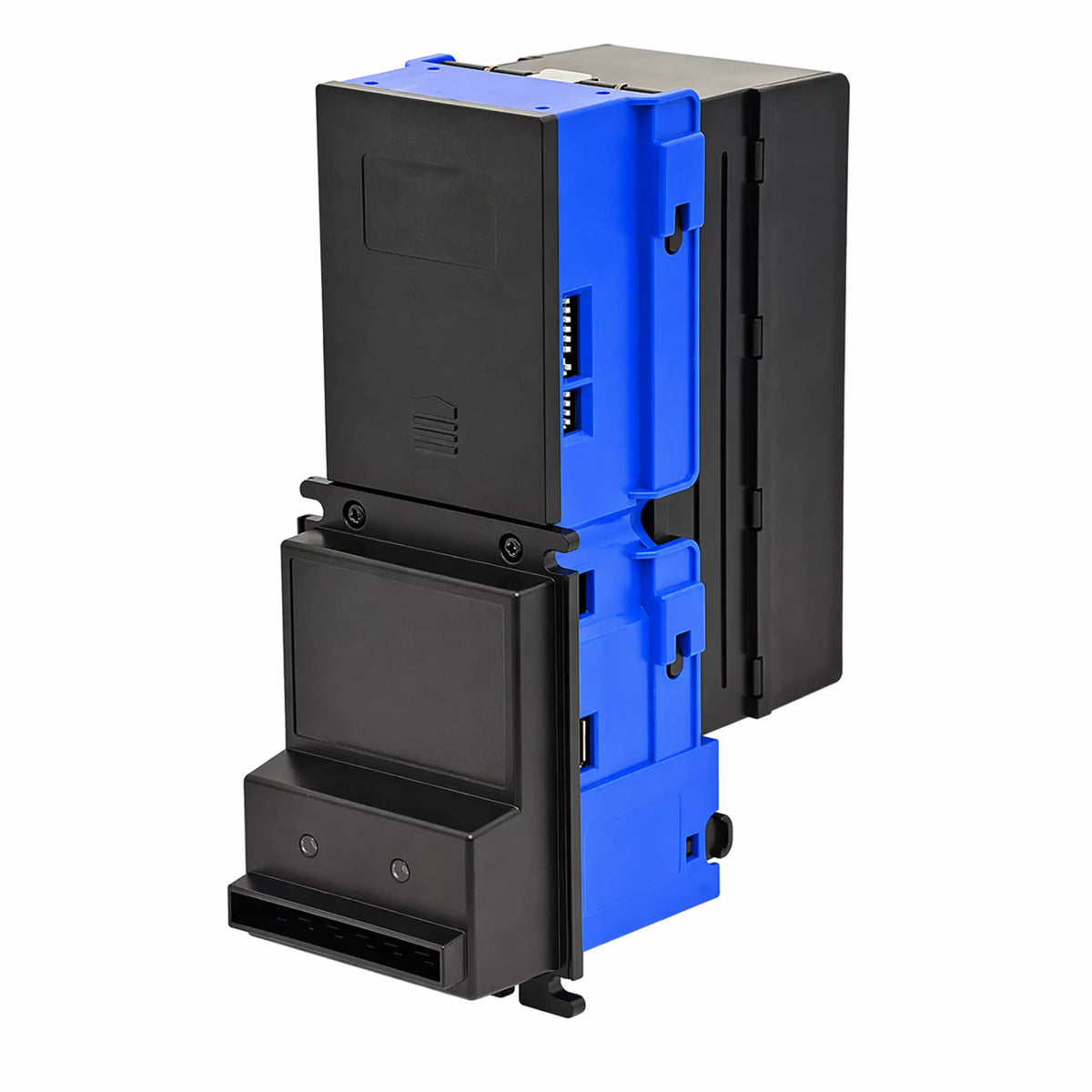

ICT PA7-E
The PA7-E is the new replacement for the standard PA7.
One of the biggest improvements is the new USB port located on the side of the validator. This makes firmware and currency software updates much easier.
The PA7-E also uses a new-style ROHS-certified cable. The cable itself has been updated, but the 9-pin Molex connector that plugs into the machine maintains the same pin layout.
The new side-mounted USB connection makes servicing and updating the PA7-E significantly easier than previous PA7 models.
PA7-E models equipped with the 800-note stacker are currently available in limited quantities. Additional inventory is expected to be available next month.
ICT LX7-2
The LX7-2 is the 12V version for equipment that already supplies the correct low-voltage power.
The LX7 can be configured with a lockable cashbox and is also available with an optional 600-note stacker box.
The LX7 supports the JCM ID003 communication protocol. This is an important advantage when integrating the validator into gaming machines and platforms that already use ID003 communication. It makes the LX7 an excellent option for both new installations and replacement applications in gaming equipment.

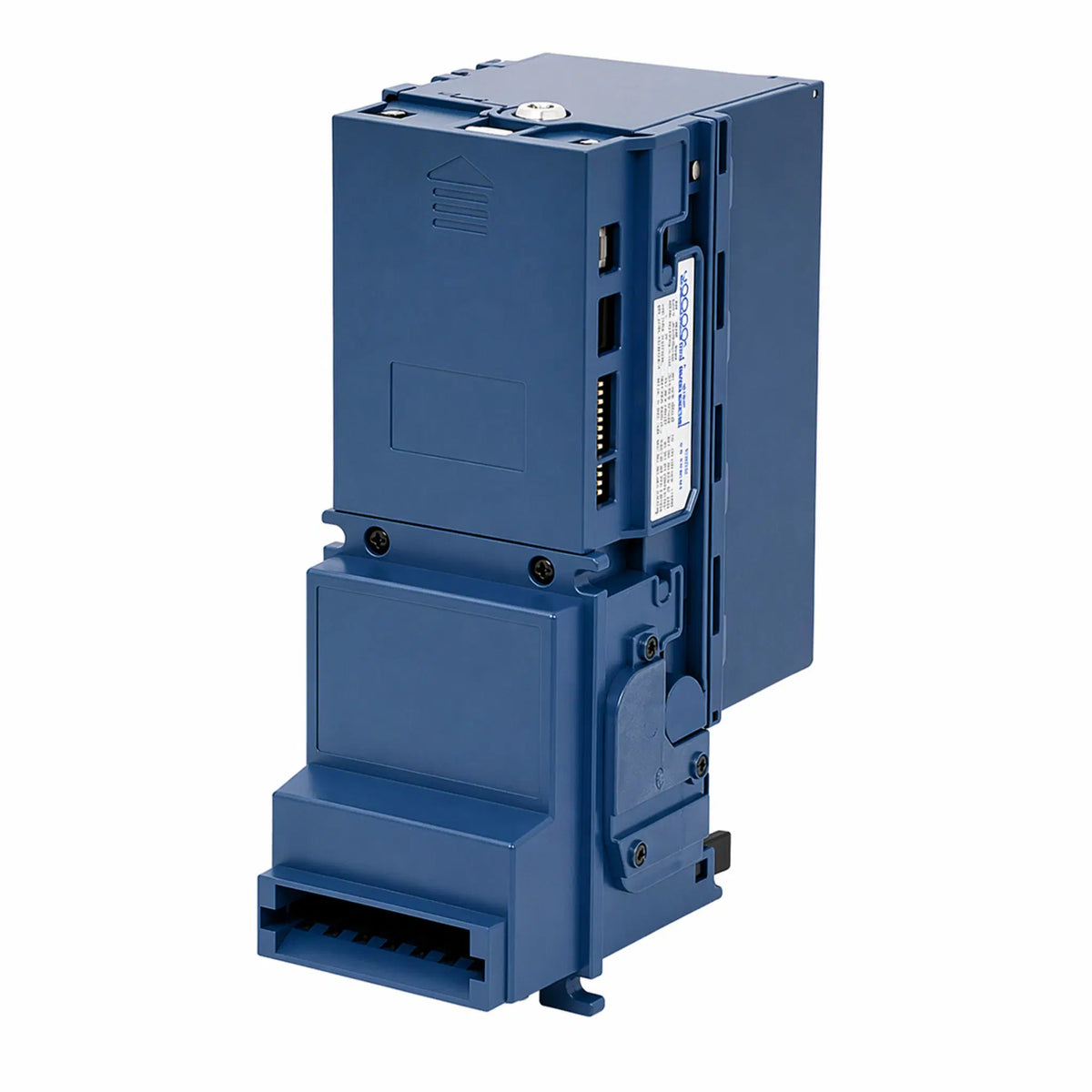

ICT LX7-1
The LX7-1 is a 12V LX7 supplied with a 110V external power adapter cable.
This configuration is ideal when the machine provides 110V AC but the application calls for a 12V LX7.
The AC-to-DC conversion is handled by the external adapter rather than being built directly into the validator.
View LX7-1 Product

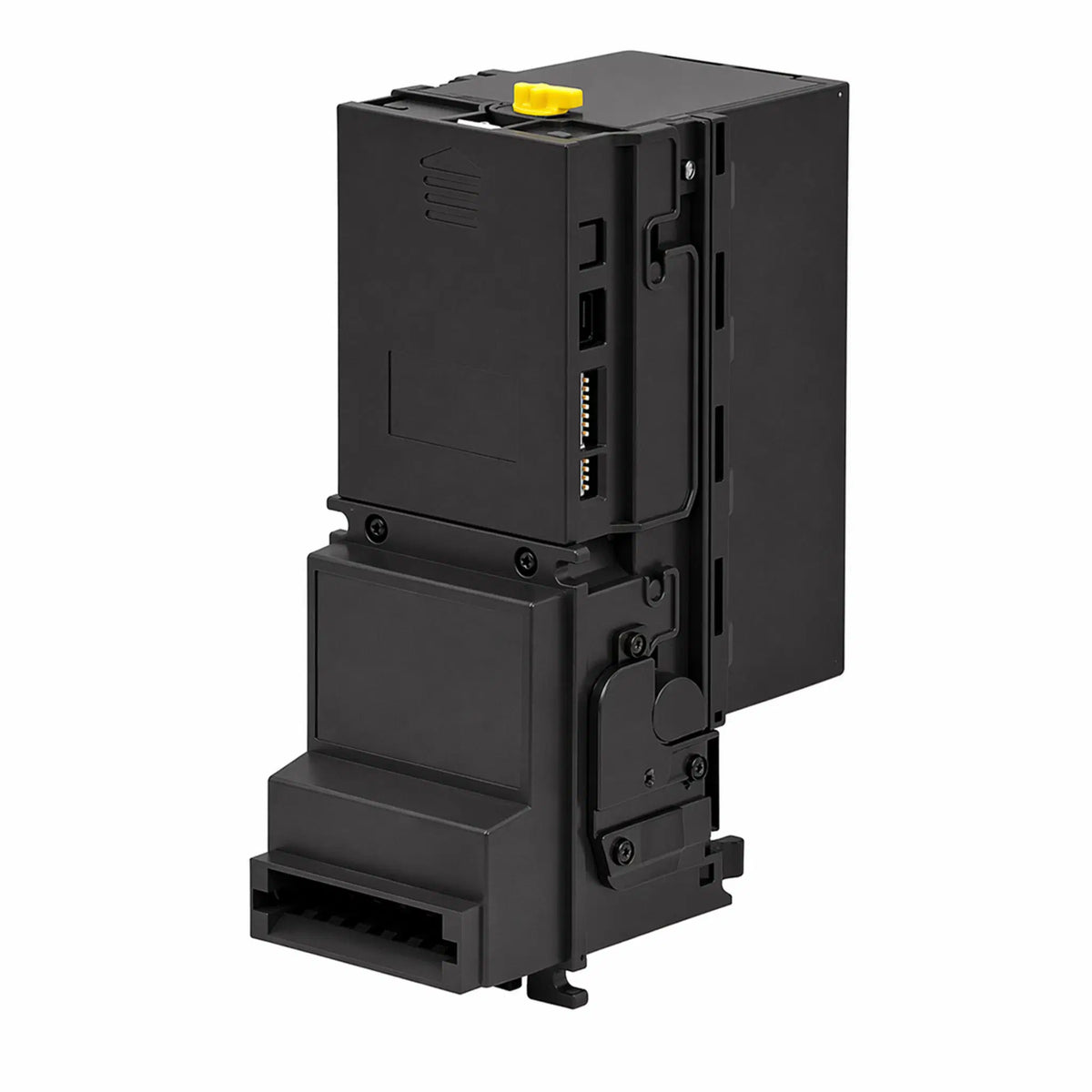

ICT LX7-A
The LX7-A is the self-contained 110V version of the LX7.
Unlike the LX7-1, the LX7-A does not require a separate external power adapter. The AC power supply is built into the validator configuration.
The LX7-A uses a standard AC power cable and is also commonly used in POG machine applications.
Additional LX7 features include four-way bill insertion, removable cashbox design, auto calibration and USB firmware updating.
View LX7-A Product

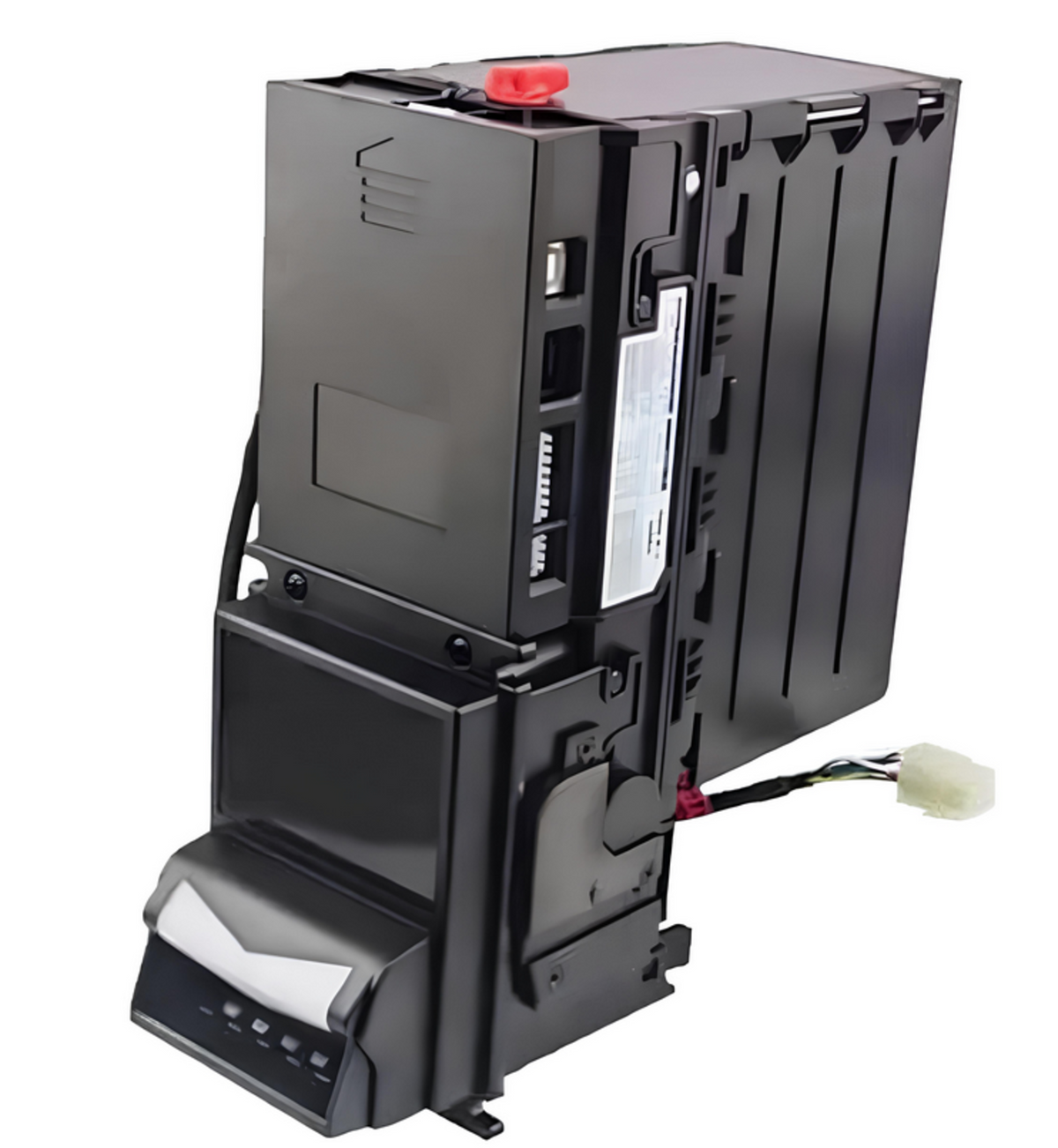

ICT TAO-A
Most customers purchase the TAO-A in the 110V configuration with a 500-note stacker box.
This makes the TAO-A an excellent choice for higher-volume locations where more cash capacity is required between collections.
The TAO-A is also available in 12V configurations.
The TAO-A family offers lockable cassette options, allowing the cashbox itself to remain secured during removal and cash collection.
View TAO-A ProductLX7 & TAO-A Modular Cashbox
The LX7 uses the same core bill-validation technology as the TAO-A, but is available at a lower overall cost.
Another major service advantage is that both the LX7 and TAO-A have a motor built into the cashbox/stacker assembly.
If a stacking problem occurs, a technician can simply swap the cashbox with a known-good cashbox.
This quickly helps determine whether the problem is located in the cashbox/stacker assembly or in the validator itself.
A defective stacker assembly can often be corrected simply by replacing the cashbox rather than replacing the complete bill validator.
Why Resellers Choose the LX7
The ICT LX7 uses the same core bill-validation technology as the TAO-A, providing excellent performance, reliability and serviceability at a lower overall cost.
The LX7 is also an exclusive product available through E & D Trading / BillAcceptors.us.
For our reseller customers, this creates an excellent opportunity to offer a high-quality ICT stacker bill validator while maintaining better profit margins for resale.
For applications that do not require the larger TAO-A configuration, the LX7 provides an excellent balance of price, performance, reliability and serviceability.
The LX7 supports the JCM ID003 communication protocol, making it easier to integrate into many gaming machines and gaming platforms that already use ID003 communication.
Warranty Protection
Bill validators purchased from BillAcceptors.us include excellent warranty protection.
Warranty coverage is subject to applicable warranty terms and conditions.
Cashbox & Security Options
This allows the cassette itself to remain locked during removal, transport and cash collection.
The LX7 is also available with an optional 600-note stacker box, while the TAO-A is commonly supplied with a 500-note stacker.
WEL706 Serial Communication Cable
The ICT WEL706 serial cable works with ICT stacker bill validators that have an RJ45 communication connection on the side.
This allows the same serial cable to be used across multiple compatible ICT stacker bill validator models, helping simplify installations and service inventory.
The machine and validator must still be configured for the correct communication protocol.
Which Model Should You Choose?
| Your Requirement | Recommended Model |
|---|---|
| Replacing an older PA7 and want easier USB updating | PA7-E |
| Machine already supplies 12V DC | LX7-2 |
| Need a 12V validator but the machine supplies 110V AC | LX7-1 |
| Want a self-contained 110V validator without an external power adapter | LX7-A |
| Gaming machine integration requiring JCM ID003 communication | LX7 Series |
| Need higher-capacity 500-note cash handling | TAO-A |
| Need a lockable removable cash cassette | LX7 or TAO-A |
| Looking for TAO-A technology at a lower acquisition cost and better reseller margin | LX7 Series |
Send E & D Trading the model number or a clear photo of the label on your existing bill validator. We can help identify the correct voltage, interface, bezel, stacker capacity, currency configuration and replacement model for your machine.
