Descripción

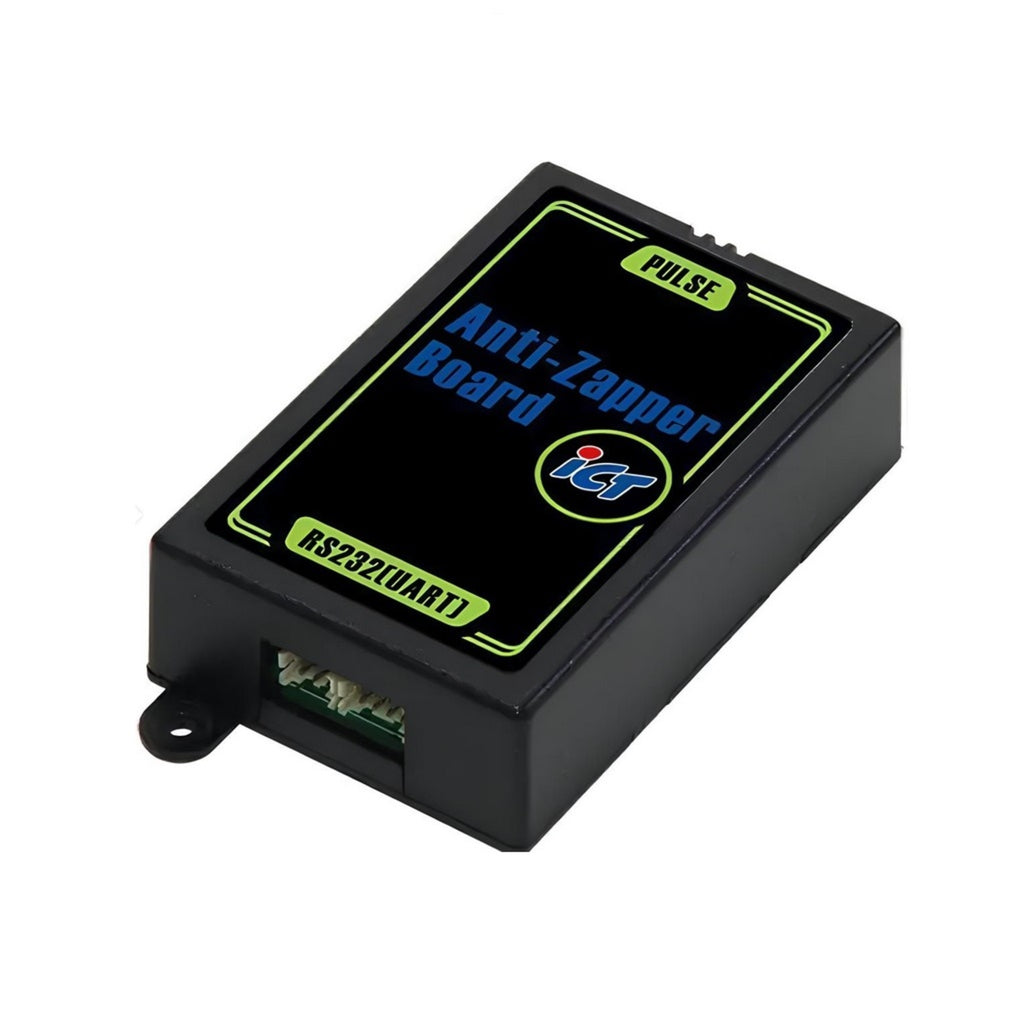

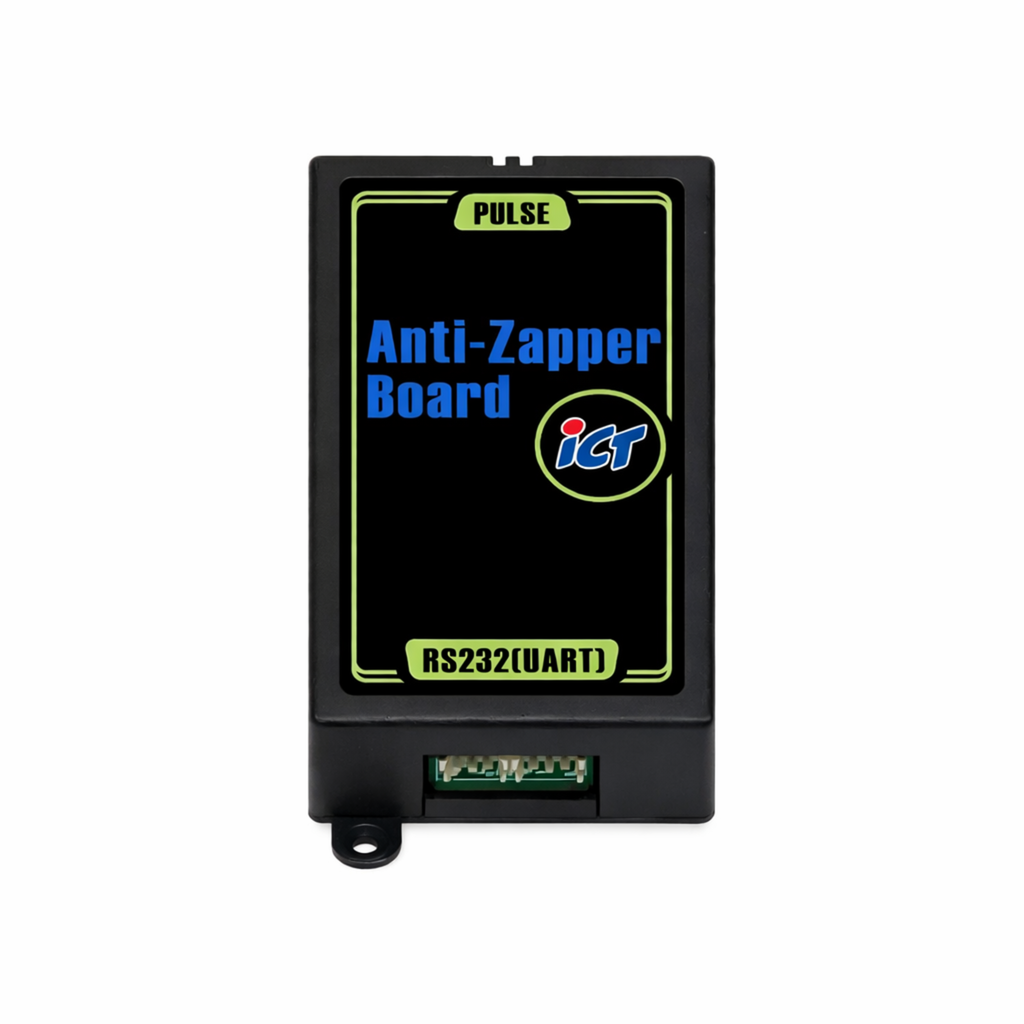

The ICT AZB-11 Anti-Zapper Board (110V with Fanout Cable) is designed to protect ICT systems from electromagnetic interference while ensuring stable communication between connected components.
This unit converts RS232 (UART) communication into a pulse interface, making it ideal for vending and amusement systems. The included fanout cable allows flexible wiring and easier integration.
Built for durability and reliability, the AZB-11 integrates communication conversion, power handling, and protection into a compact design suitable for standard operating environments.
Key Features
- Anti-zapper protection from electrical interference
- Converts RS232 (UART) to Pulse interface
- Compatible with ICT A6, TAO-A, and PA7 systems
- 110V AC operation
- Fanout cable for flexible installation
- Supports credit relay and inhibit signals
- Compact and durable design
Technical Specifications
- Product Type: Anti-Zapper Board
- Model: AZB-11
- Brand: ICT
- Interface: Pulse
- Input Communication: RS232 (UART)
- Power Supply: 110V AC
- Power Consumption: Approx. 200 mA
- Cable Type: Fanout Cable
- Dimensions: 55 × 85 × 25 mm
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
Especificaciones técnicas
| Brand | ICT |
| Voltage | 110v |
| Condition | New |
