Descripción

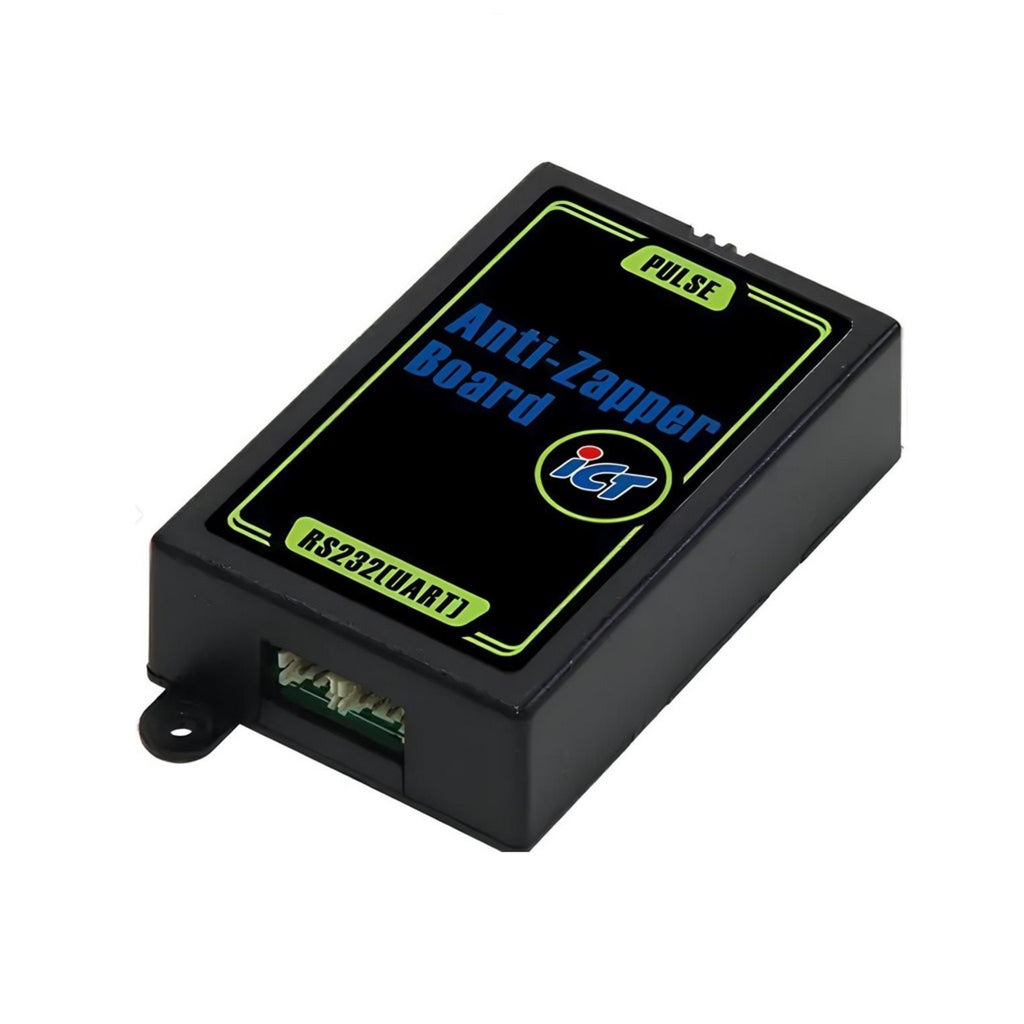

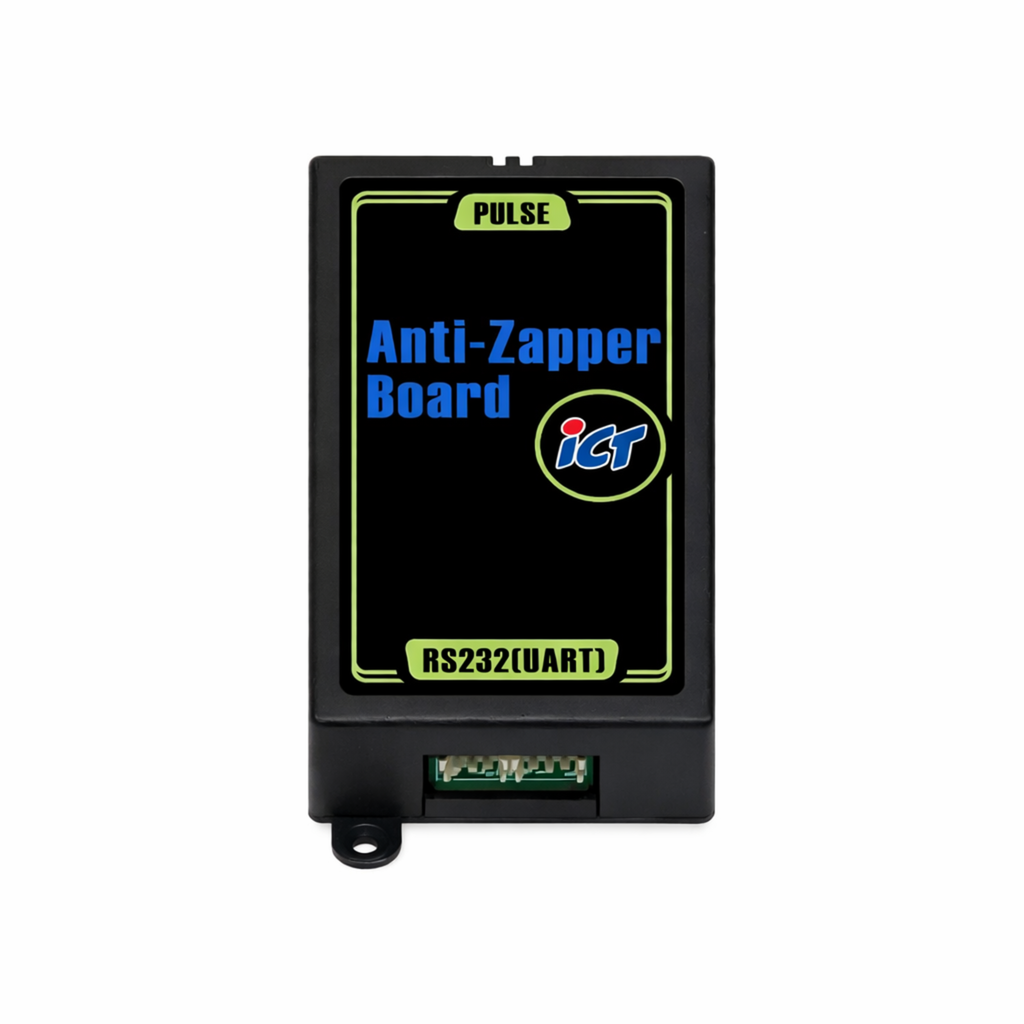

The ICT AZB-2A Anti-Zapper Board (12VDC with 9-Pin Molex) is designed to protect ICT systems from electromagnetic interference and zapper-related disruptions while ensuring stable communication between connected components.
This model operates on 12V DC power and converts RS232 (UART) communication into a pulse interface, making it suitable for vending and amusement systems that require pulse protocol integration. The 9-pin Molex connector allows secure and efficient installation.
Installed between system components, this anti-zapper board helps maintain signal stability and protects sensitive electronics in standard operating environments.
Key Features
- Anti-zapper protection from electrical interference
- Converts RS232 (UART) to Pulse interface
- Compatible with ICT A6, TAO-A, and PA7 systems
- 12V DC power configuration
- 9-pin Molex connector for secure installation
- Supports credit relay and inhibit control signals
- Compact and durable industrial design
Technical Specifications
- Product Type: Anti-Zapper Board
- Model: AZB-2A
- Brand: ICT
- Interface: Pulse
- Input Communication: RS232 (UART)
- Power Supply: 12V DC
- Power Consumption: Approx. 200 mA
- Connector Type: 9-Pin Molex
- Dimensions: 55 × 85 × 25 mm
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
Especificaciones técnicas
| Brand | ICT |
| Voltage | 12v |
| Condition | New |
