Descripción

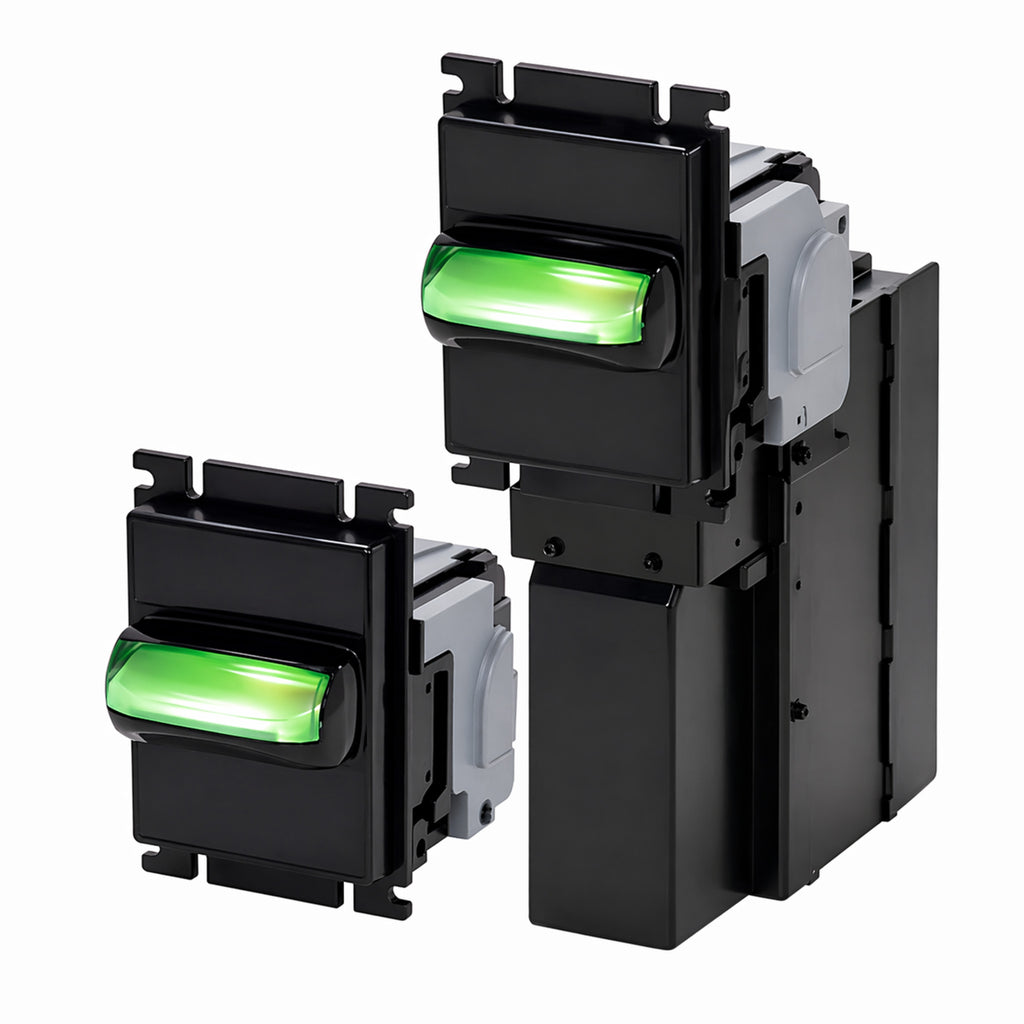

The ICT L704DO601i2# Bill Validator (L Series) is designed for reliable and efficient bill validation in vending, gaming, and amusement systems.
According to the L Series installation guide , the validator features a new generation verification system, auto-calibration, and fast bill processing, helping improve acceptance accuracy and reduce bill jams.
This model operates on 12V DC power and supports Pulse and ICT104 interfaces, allowing flexible integration into compatible systems.
It features a stackerless configuration, meaning it is designed to operate with an external cash handling system rather than an internal cashbox. The validator supports 71mm bill width (O Type bezel), suitable for a wide range of banknotes.
This unit also includes the WEL-RU706 harness, ensuring proper connectivity and installation compatibility.
Key Features
- New generation verification system
- Supports Pulse and ICT104 interfaces
- Includes WEL-RU706 harness
- Four-way bill insertion
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade support
- Easy maintenance design
- Power Supply: 12V DC (10.8V–16V DC)
- Stacker: Stackerless (no internal cashbox)
- Bezel Type: 71mm (O Type Bezel)
- Bill Width Accepted: 71mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse, Serial |
| Bezel Type | Standard |
| Denomination Acceptance | DOP: 50, 100, 200, 500, 1000, 2000 |
| Condition | New |
