Descripción

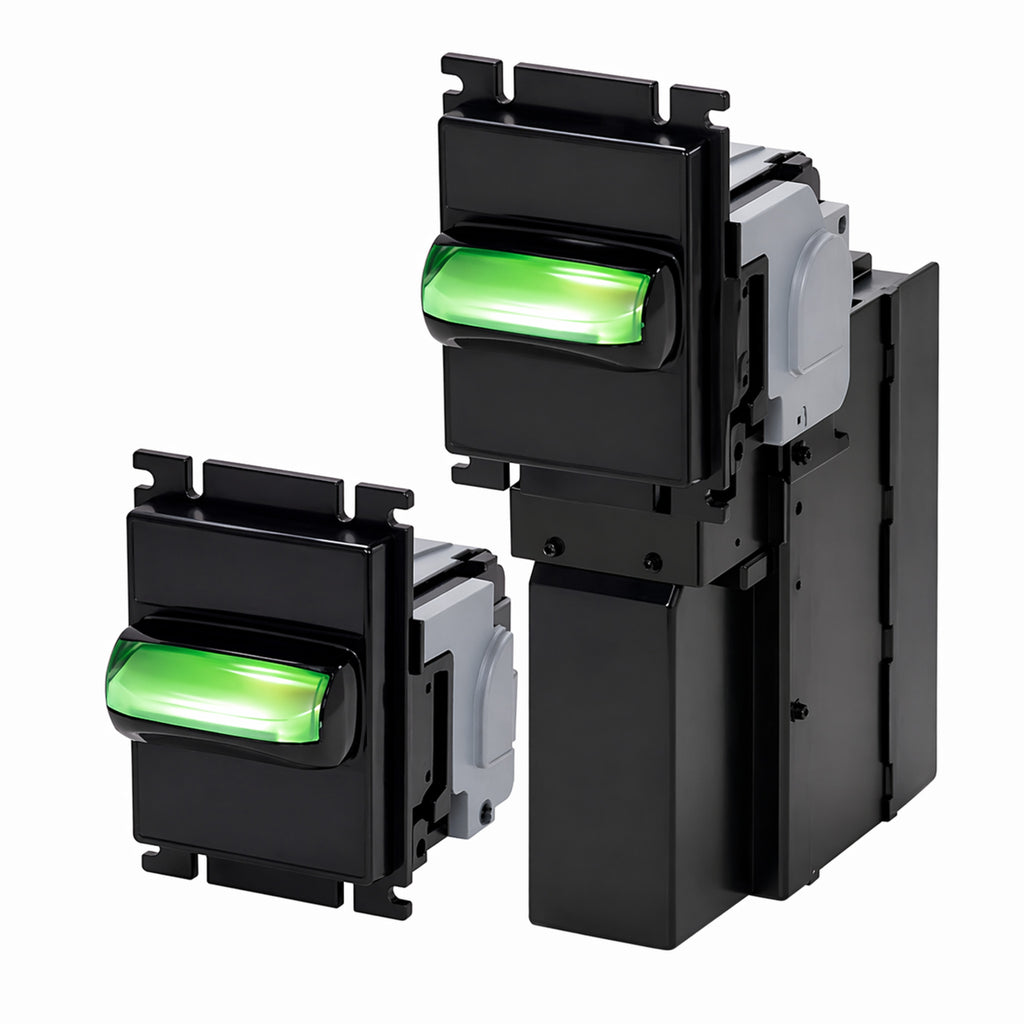

The ICT L704MX553i1#5 Bill Validator (L Series) is designed for reliable and efficient bill validation in vending, gaming, and amusement systems.
According to the L Series installation guide , the validator features a new generation verification system, auto-calibration, and fast bill processing, helping improve acceptance accuracy and reduce bill jams.
This model operates on 12V DC power and supports Pulse and ICT104U interfaces, allowing flexible integration into compatible systems.
It is equipped with a 500 note cashbox (P5 configuration) and supports 67mm bill width (A Type bezel), making it suitable for standard banknote handling applications.
Key Features
- New generation verification system
- Supports Pulse and ICT104U interfaces
- Supports 67mm bill width (A Type bezel)
- Interface / Protocol: Pulse / ICT104U
- Power Supply: 12V DC (10.8V–16V DC)
- Stacker Capacity: 500 notes (P5 cashbox)
- Bezel Type: 67mm (A Type Bezel)
- Bill Width Accepted: 67mm
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | MXP: 20, 50, 100, 200, 500 |
| Condition | New |
