Descripción

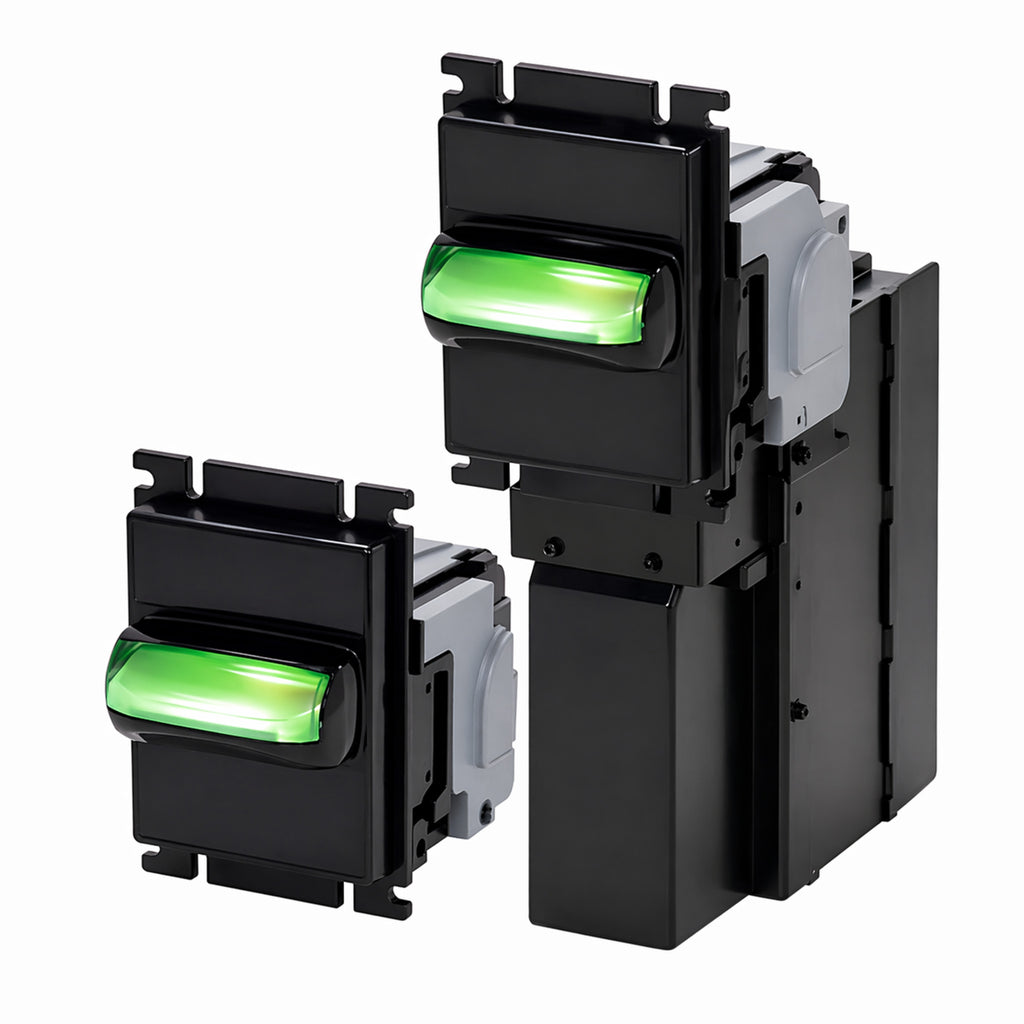

The ICT L709DO651i2S Bill Validator (L Series) is designed for reliable and efficient bill validation in vending, gaming, and amusement systems.
According to the L Series installation guide , the L Series incorporates a new generation verification system, auto-calibration, and fast bill processing, improving acceptance accuracy and reducing bill jams.
This model operates on 12V DC power and supports multiple communication protocols including Pulse, MDB_US, ICT104U, and ICT104V, allowing flexible integration into a wide range of systems.
It is equipped with a 500 note stacker (P5 configuration) and supports 71mm bill width, making it suitable for high-volume cash handling environments.
Key Features
- New generation verification system
- Supports Pulse, MDB_US, ICT104U, ICT104V interfaces
- Supports 71mm bill width
- Four-way bill insertion
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade support
- Easy maintenance design
- Power Supply: 12V DC (10.8V–16V DC)
- Stacker Capacity: 500 notes (P5 cashbox)
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse, Serial, MDB |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | DOP: 50, 100, 200, 500, 1000, 2000 |
| Condition | New |
