Descripción

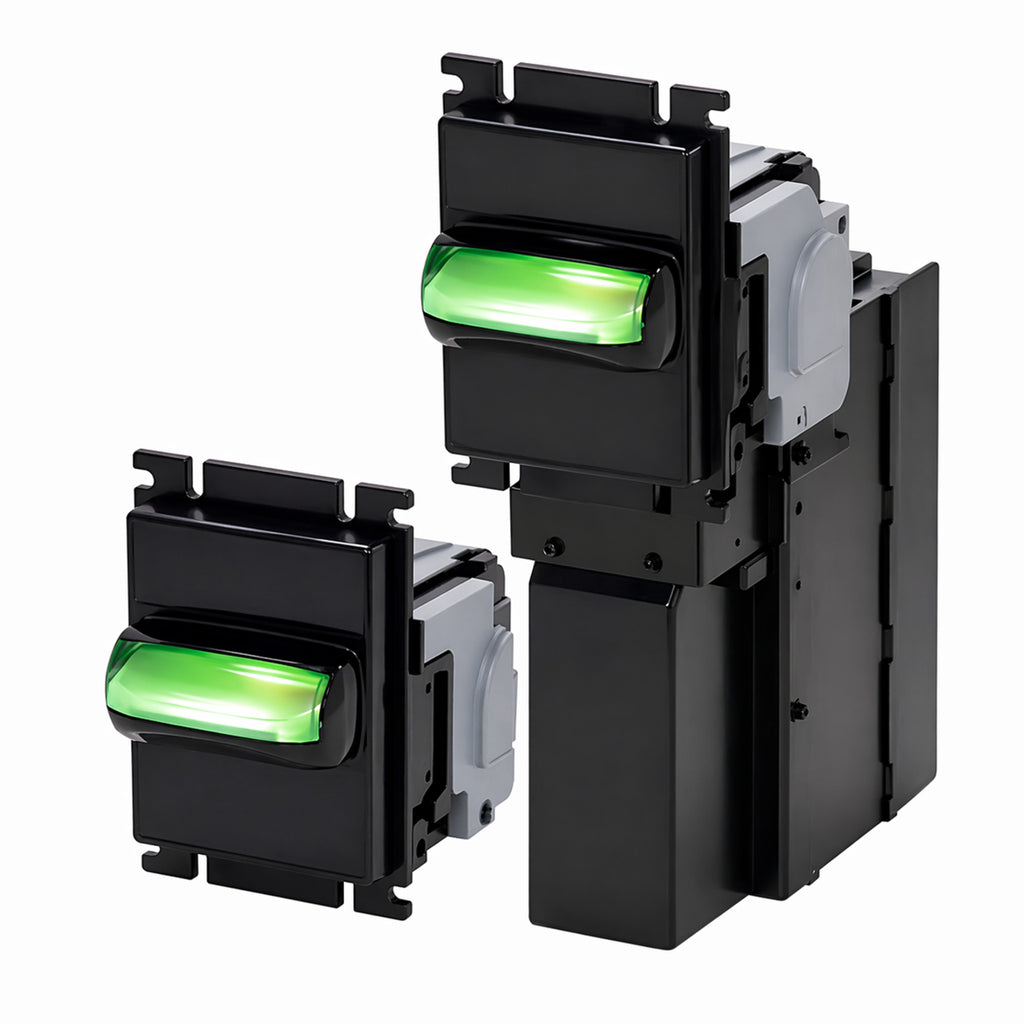

The ICT L70SHN550iA Bill Validator (L Series) is a next-generation bill acceptor designed for reliable and efficient cash handling in vending, gaming, and amusement systems.
According to the L Series manual, this validator features a new verification system design, auto-calibration, and multi-currency support, ensuring improved acceptance accuracy and reduced jamming .
This model operates on 12V DC power and supports Pulse, IGT, and ID003 interfaces, allowing flexible integration into different systems.
It is equipped with a 500 note stacker and supports 67mm bill width, making it suitable for standard currency handling applications.
Key Features
- New generation verification system
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade capability
- Easy maintenance design
- Interface / Protocol: Pulse / IGT / ID003
- Power Supply: 12V DC (10.8V–13.2V DC)
- Bill Width Accepted: 67mm
- Bill Insertion: Four-way acceptance
- Acceptance Rate: Up to 96% or higher
- Transaction Time: Approx. 3 seconds (typical)
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | HNL: 5, 10, 20, 50, 100, 500 |
| Condition | New |
