Descripción

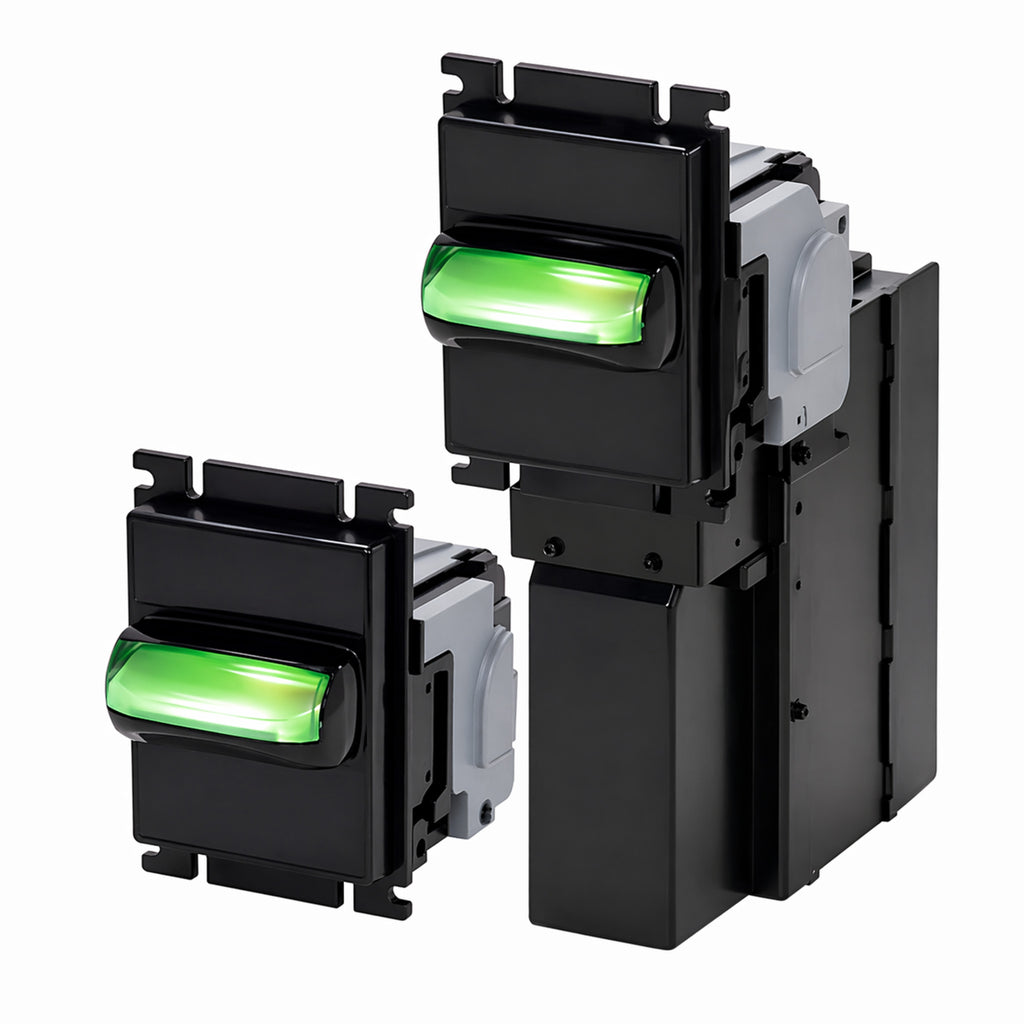

The ICT L70TNI751i2 Bill Validator (L Series) is a high-performance bill acceptor designed for reliable and efficient cash handling in vending, gaming, and amusement systems.
According to the L Series manual, this validator features a new verification system, auto-calibration, and multi-currency capability, ensuring high accuracy and reduced bill jams .
This model operates on 12V DC power and supports Pulse, IGT, and RS232 A0 interfaces, providing flexible integration across various systems.
It is equipped with a 500 note stacker and supports 71mm bill width, making it suitable for handling a wide range of banknotes.
Key Features
- New generation verification system
- 12V DC operation
- Supports Pulse, IGT, RS232 A0 interfaces
- Supports bill width up to 71mm
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade capability
- Easy maintenance design
- Bill Width Accepted: 71mm
- Bill Insertion: Four-way acceptance
- Acceptance Rate: Up to 96% or higher
- Transaction Time: Approx. 3 seconds (typical)
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | NIO: 10, 20, 50, 100, 200, 500, 1000 |
| Condition | New |
