Descripción

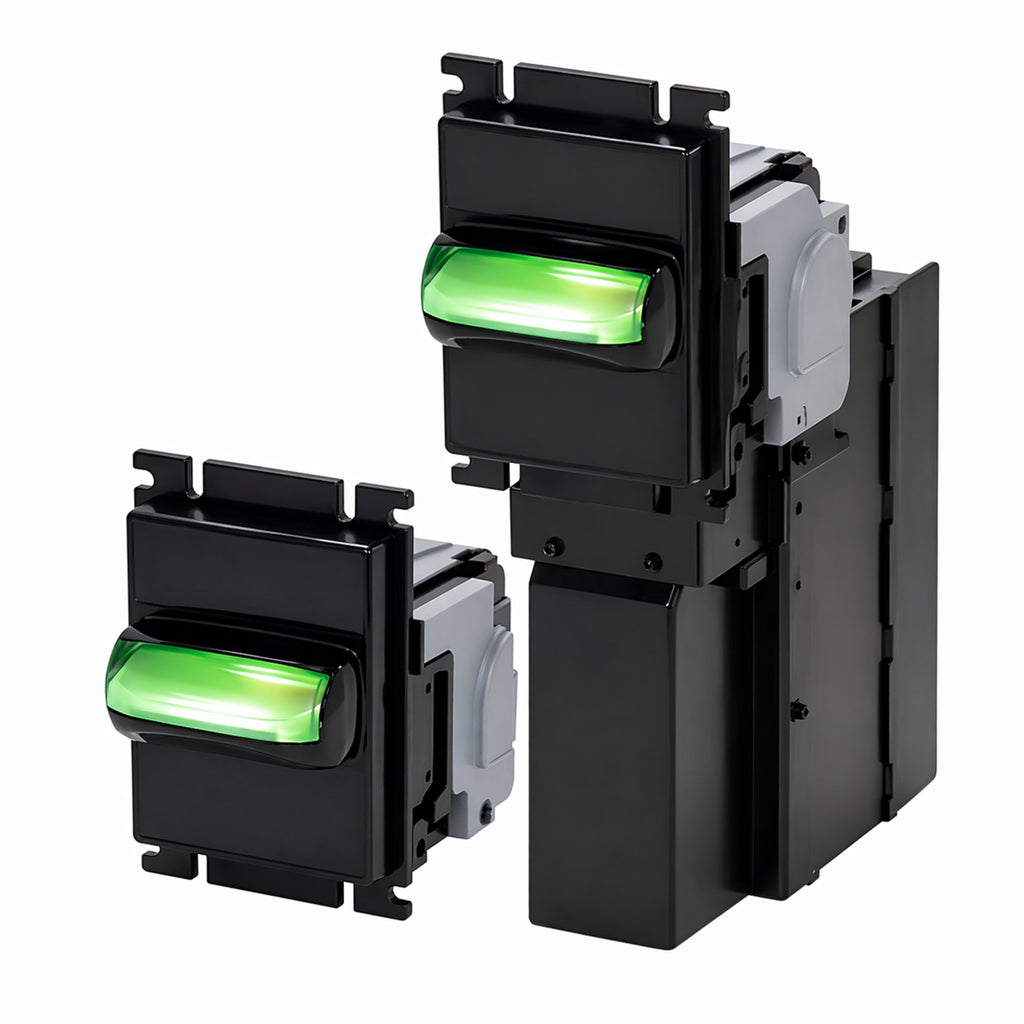

The ICT L70XCO701i2 Bill Validator (L Series) is designed for efficient and reliable bill validation in vending, gaming, and amusement systems.
The L Series features an advanced verification system, auto-calibration, and durable construction to improve acceptance accuracy and reduce bill jams .
This model operates on 12V DC power and supports Pulse, IGT, and RS232 A0 interfaces, allowing flexible integration into various systems.
It is a stackerless configuration, meaning it is designed to work with external cashbox systems instead of an internal note stacker. The validator supports 71mm bill width, making it suitable for handling a wide range of banknotes.
Key Features
- Advanced bill validation system
- Supports Pulse, IGT, RS232 A0 interfaces
- Stackerless design (external cash handling)
- Supports 71mm bill width
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware update support
- Easy maintenance design
- Interface / Protocol: Pulse / IGT / RS232 A0
- Power Supply: 12V DC (10.8V–13.2V DC)
- Stacker: Stackerless (no internal cashbox)
- Bill Width Accepted: 71mm
- Bill Insertion: Four-way
- Acceptance Rate: Up to 96% or higher
- Transaction Time: Approx. 3 seconds (typical)
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | COP: 1000, 2000, 5000, 10000, 20000, 50000, 100000 |
| Condition | New |
