Descripción

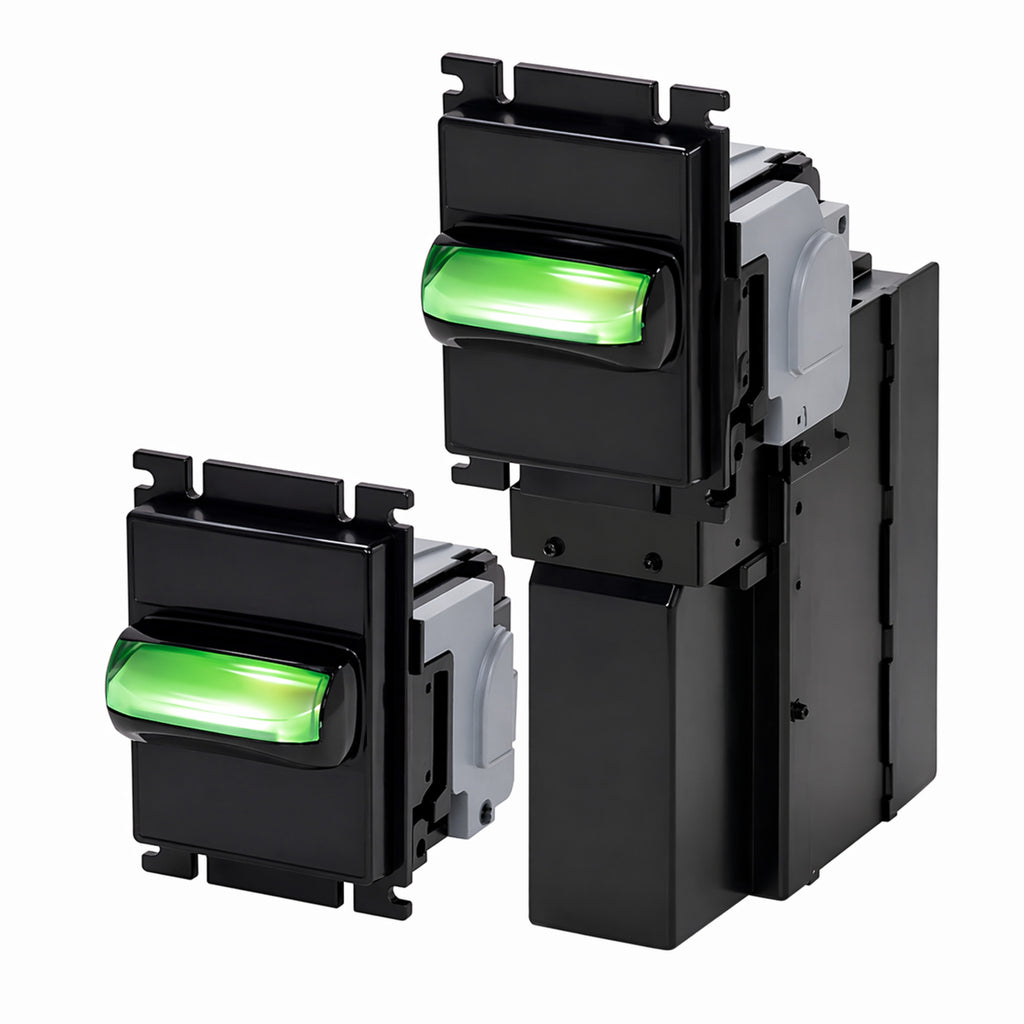

The ICT L70XCO751i2+ Bill Validator (L Series) is a high-performance bill acceptor designed for vending, gaming, and amusement systems.
According to the L Series installation guide , this validator features a new generation verification system, auto-calibration, and fast bill processing, helping improve acceptance accuracy and reduce bill jams.
This model operates on 12V DC power and supports Pulse, IGT, and RS232 A0 interfaces, allowing flexible integration across different systems.
It is equipped with a 500 note cashbox (P5 configuration) and supports 71mm bill width, making it suitable for high-capacity cash handling environments.
Key Features
- New generation verification system
- Four-way bill insertion
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade support
- Easy maintenance design
- Interface / Protocol: Pulse / IGT / RS232 A0
- Power Supply: 12V DC (10.8V–16V DC)
- Stacker Capacity: 500 notes (P5 cashbox)
- Bill Width Accepted: 71mm
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | COP: 1000, 2000, 5000, 10000, 20000, 50000, 100000 |
| Condition | New |
