Descripción

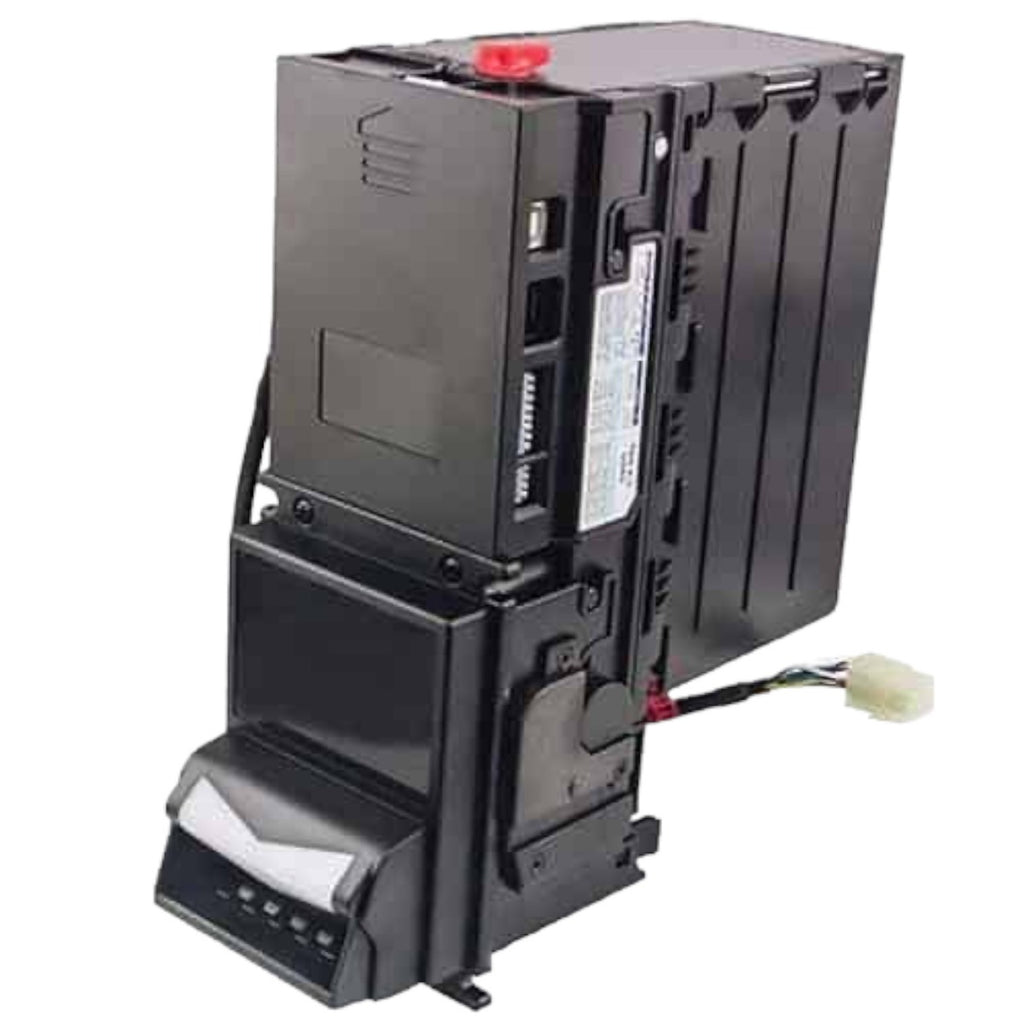

The ICT TAO-A2PB2-USD6Q Bill Validator (TAO-A/V I Series) is designed for secure bill validation with a lockable cashbox system.
The TAO-A/V I series supports four-way bill insertion and provides an acceptance rate of 96% or higher, with a transaction speed of approximately 3 seconds per bill .
This model operates on 12V DC power and supports Pulse interface .
It includes a standard bezel and comes with a cover mounting kit for installation.
This validator is configured for U.S. Dollar (USD) and accepts: $1, $5, $10, $20, $50, $100 (6 bills)
Key Features
- Acceptance rate of 96% or higher
- Transaction speed approx. 3 seconds per bill
- Standard bezel design
- Cover mounting kit included
- Lockable removable cashbox
- Four-way bill insertion
- Auto-calibration
- USB interface available for firmware update
- Bill Insertion: Four-way acceptance
- Bill Width Accepted: 62–66 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
Especificaciones técnicas
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 200 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | USD: $1, $5, $10, $20, $50, $100 |
| Condition | New |
