Descripción

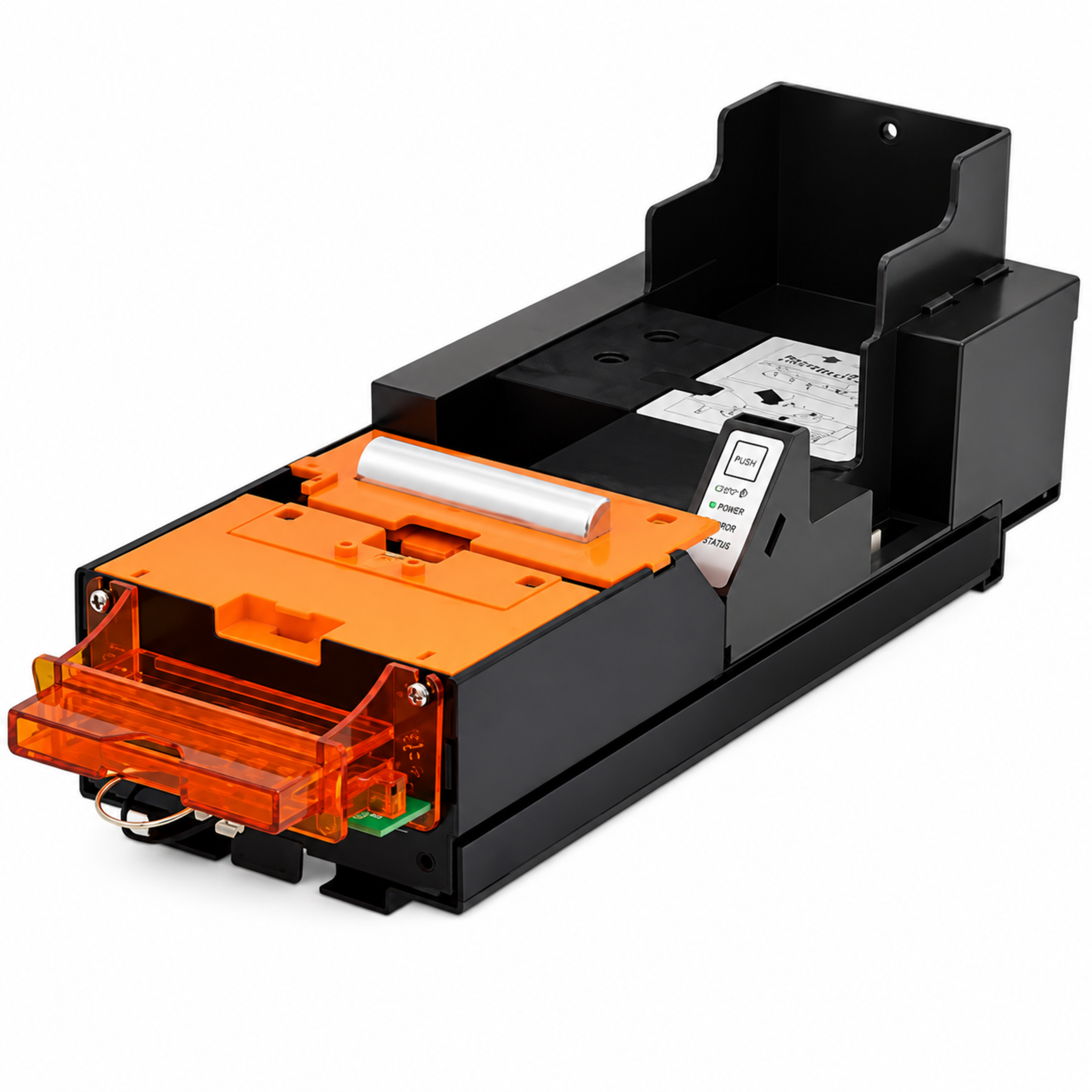

The ICT TP1R2B11E0a Fortune Ticket Printer (Fortune Series) is designed for high-speed and reliable ticket printing in gaming, vending, and kiosk applications.
This model operates on 24V DC power and supports RS232 (ICT protocol) communication, ensuring compatibility with ticket-based systems.
It uses direct thermal printing technology to deliver clear and high-quality ticket output with a resolution of 203 dpi (8 dots/mm).
The printer supports high-speed printing up to 120 mm/s, providing fast transaction processing in busy environments.
With an approximate capacity of 200 tickets, the unit is ideal for TITO (Ticket In Ticket Out) systems and supports barcode printing such as Interleaved 2 of 5.
Key Features
- RS232 (ICT protocol) interface support
- Direct thermal printing method
- High-speed printing (up to 120 mm/s)
- 203 dpi print resolution (8 dots/mm)
- Supports barcode printing (Interleaved 2 of 5)
- Approx. 200 ticket capacity
- Hot-swappable design
- Easy maintenance and durable construction
- Series: ICT Fortune Printer Series
- Power Supply: 24V DC (±10%)
- Printing Speed: Up to 120 mm/s
- Ticket Size: Length 156±1 mm / Width 65±1 mm / Thickness 0.1 mm
- Ticket Material: Thermal paper
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Humidity: 10%–50% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 24v |
| Condition | New |
