Descripción

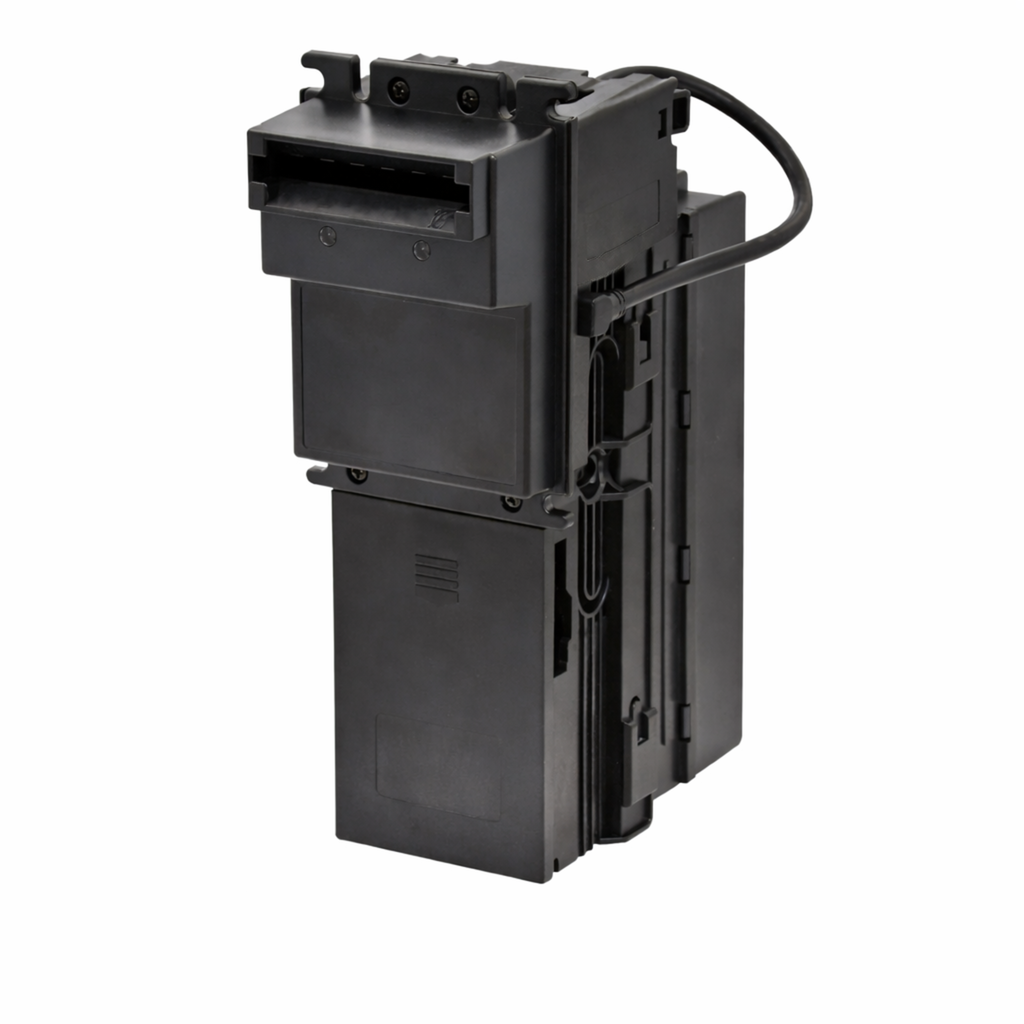

The ICT V7P-2UA31UC7 Bill Validator (V7P Series) is designed for high-performance bill validation in vending and amusement machines, offering flexibility and reliable operation across multiple currency configurations.
Operating on 12V DC power, this validator supports the ICT104U (RS232) protocol, making it suitable for machines requiring ICT communication. It delivers a high acceptance rate of 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring smooth and efficient performance.
This model features dual-currency firmware, supporting both U.S. Dollar (USD) and Canadian Dollar (CAD) configurations. Currency selection is controlled through DIP switch settings, allowing operators to switch between supported currencies as needed.
Equipped with a 300-bill stacker capacity, it is ideal for medium-traffic environments. The double bezel design (73mm) improves bill insertion and enhances user interaction.
Designed for indoor use, the V7P validator provides durability, auto-calibration, and consistent long-term performance.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Supports ICT104U (RS232) protocol
- Model: V7P-2UA31UC7
- Series: ICT V7P
- U.S. Dollar (USD): $1, $5, $10, $20, $50, $100
- Canadian Dollar (CAD): C$5, C$10, C$20
- Interface / Protocol: ICT104U (RS232)
- Bezel Type: Double Bezel (73mm)
- Bill Width Accepted: 62–72 mm
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
- Installation: Indoor
Especificaciones técnicas
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Serial |
| Stacker Capacity | 300 Bills |
| Bezel Type | Double Bezel |
| Denomination Acceptance | USD $1, $5, $10, $20, 50, 100 and CAD $5, $10, $20 |
| Condition | New |
