Descripción

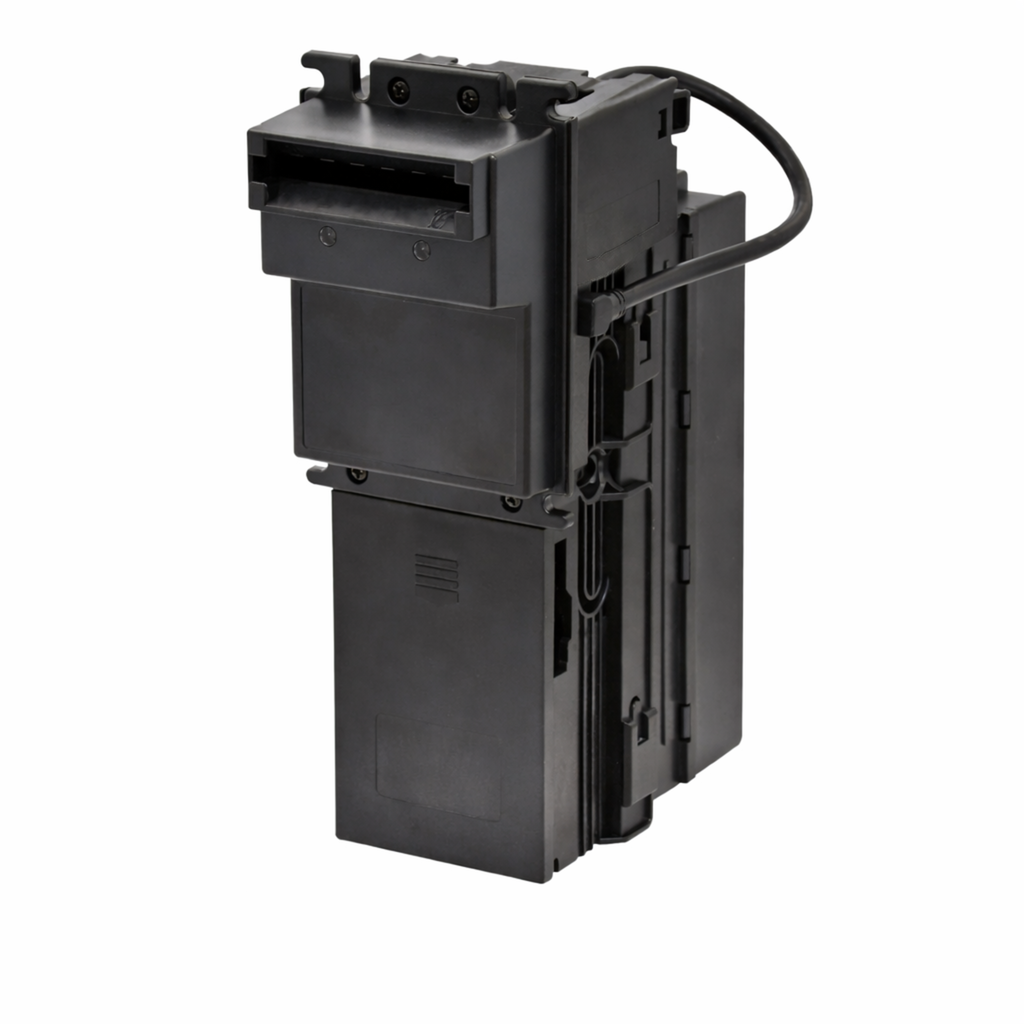

he ICT V7P-2UA31US6 Bill Validator (V7P Series) is designed for reliable and efficient bill validation in vending and amusement machines, offering stable performance and flexible system integration.
Operating on 12V DC power, this validator supports the ICT104U (RS232) protocol, making it ideal for machines requiring ICT communication. It delivers a high acceptance rate of 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring smooth and efficient operation.
This model is configured for U.S. Dollar (USD) currency and supports multiple denominations, making it suitable for vending and amusement applications across U.S. regions.
Equipped with a 300-bill stacker capacity, it is ideal for medium-traffic environments. The double bezel design (70mm) enhances bill insertion guidance and improves user interaction.
Designed for indoor use, the V7P validator offers durability, auto-calibration, and dependable long-term performance.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Supports ICT104U (RS232) protocol
- 12V DC operation
- 300-bill stacker capacity
-
Double bezel design (70mm)
- Accepts: $1, $5, $10, $20, $50, $100
- Four-way bill insertion
- Auto-calibration for improved accuracy
- Bill Width Accepted: 62–70 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
- Installation: Indoor
Especificaciones técnicas
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Serial |
| Stacker Capacity | 300 Bills |
| Bezel Type | Double Bezel |
| Denomination Acceptance | $1-$100 |
| Condition | New |
