Descripción

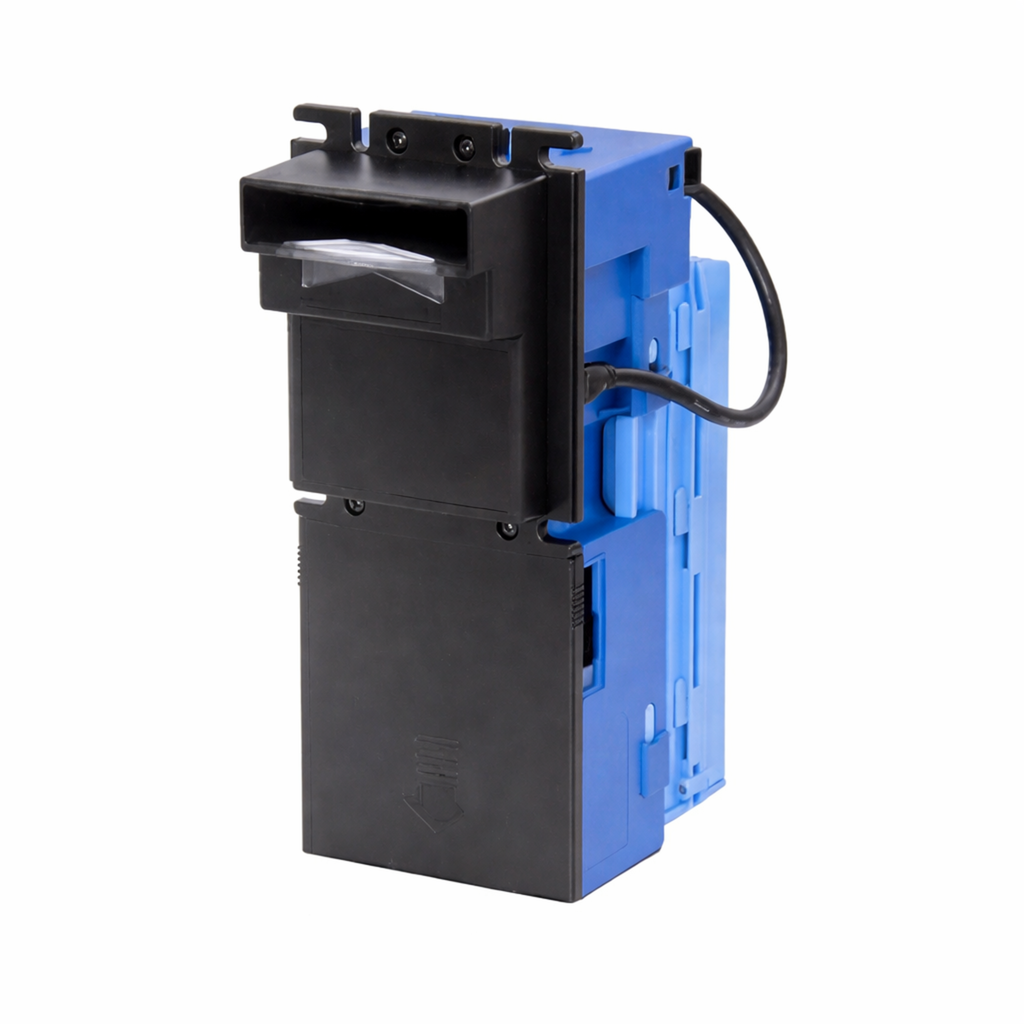

The ICT XBA-34DNMUC7 Bill Validator (XBA Series) is a high-performance bill acceptor designed for vending and amusement machines, offering superior accuracy, fast processing, and flexible multi-currency support.
Built with advanced wide-angle bill insertion and a multi-color optical sensor, this validator achieves an industry-leading acceptance rate of 98% or higher, ensuring reliable operation even in demanding environments . It processes transactions in approximately 2.5 seconds per bill, improving efficiency in high-traffic applications .
Operating on 34V DC power, the unit supports MDB, Pulse, and ICT104U (RS232) communication protocols, allowing seamless integration with a wide range of vending and gaming systems .
This model features dual-currency firmware (UCD7) and supports both U.S. Dollar (USD) and Canadian Dollar (CAD). According to the dip-switch configuration sheet, the validator can be set to accept USD only, CAD only, or both currencies simultaneously, providing flexibility for multi-region installations .
With a 400-bill stacker capacity, it is suitable for medium to high-traffic environments. The standard bezel design ensures easy installation and smooth bill insertion.
Designed for durability, the XBA series includes anti-fishing protection, auto-calibration, and firmware upgrade support via USB.
Key Features
- High acceptance rate of 98% or higher
- Fast transaction speed (~2.5 seconds per bill)
- Supports MDB, Pulse, and ICT104U (RS232) interfaces
- Dual currency support: USD & CAD
- Selectable modes: USD only / CAD only / Both
- Wide-angle bill insertion
- Anti-fishing security design
- Auto-calibration optical sensor
- USB firmware upgrade support
- Bill Width Accepted: 62–77 mm
- Operating Temperature: -20°C to 60°C
- Humidity: 30%–95% RH (non-condensing)
- Installation: Indoor / Semi-harsh environments
Technical Specifications
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | Pulse, MDB, Serial |
| Stacker Capacity | 400 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | USD $1, $5, $10, $20 and CAD $5, $10, $20 |
| Condition | New |
