Descripción

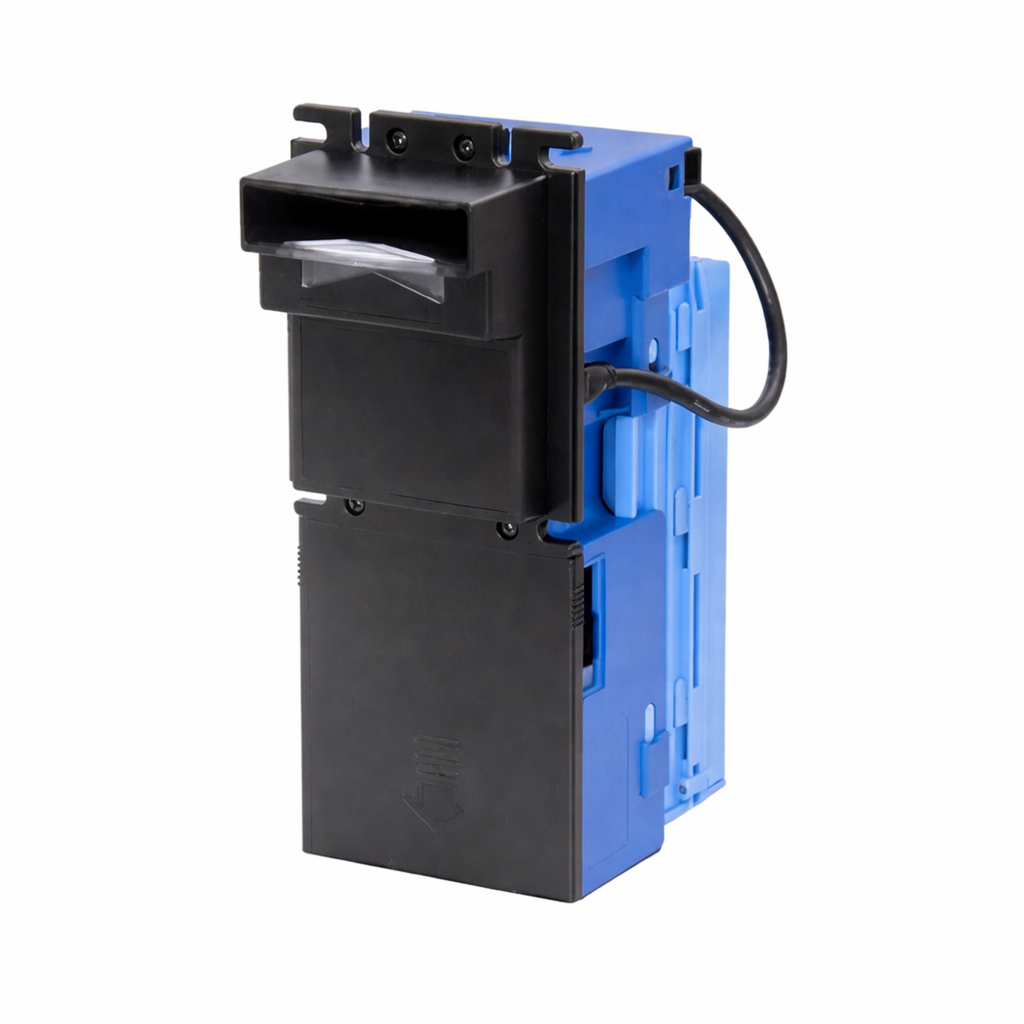

The ICT XBA-34DNMUY7 Bill Validator (XBA Series) is designed for bill validation with stable performance and multiple interface support.
This model supports wide-angle bill insertion and uses a multi-color optical sensor to achieve an acceptance rate of 98% or higher. It processes transactions in approximately 2.5 seconds per bill .
Operating on 34V DC power, the validator supports multiple communication protocols including MDB, Pulse, ICT002U, ICT104U, and ICT104V, providing compatibility with systems using these interfaces .
This validator is configured for Uruguayan Peso (UYU) and supports seven denominations: 20, 50, 100, 200, 500, 1000, and 2000 .
It includes a 400-bill stacker capacity and a standard bezel design.
The XBA series includes auto-calibration, anti-fishing structure, and firmware upgrade capability.
Key Features
- Acceptance rate of 98% or higher
- Transaction speed approx. 2.5 seconds per bill
- Wide-angle bill insertion
- Auto-calibration
- Anti-fishing structure
- Firmware upgrade support
- Bill Width Accepted: 62–77 mm
- Operating Temperature: -20°C to 60°C
- Humidity: 30%–95% RH (non-condensing)
- Installation: Indoor / Outdoor
Technical Specifications
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | Pulse, MDB, Serial |
| Stacker Capacity | 400 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | UYU: 20, 50, 100, 200, 500, 1000, 2000 |
| Condition | New |
