Descripción

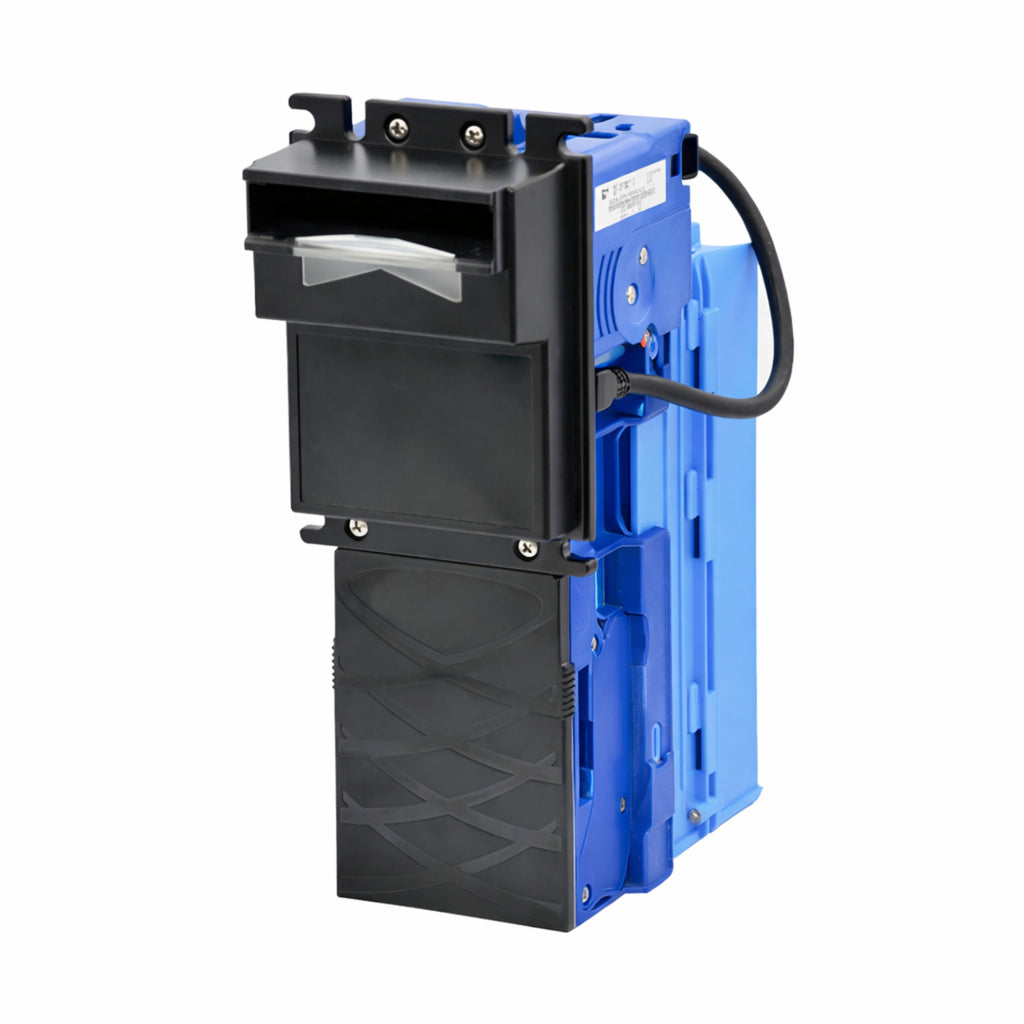

The ICT XBAm-34FNMIL3 XBA Mini Bill Validator (XBA-mini Series) is designed for bill validation with compact structure and reliable performance.
The XBA-mini supports wide-angle banknote insertion and provides an acceptance rate of 98% or higher. It processes transactions in approximately 2.5 seconds per bill .
The unit supports MDB interface and operates on 34V DC power, making it suitable for vending, kiosk, and amusement applications .
This model is configured for Israeli New Shekel (ILS) and accepts the following denominations:
20, 50, 100, 200 (4 bills) (from your provided supported bill image)
It includes a standard bezel design and a 400-bill stacker capacity, ideal for high-usage environments.
The XBA-mini series features advanced optical sensor technology, auto-calibration, and high resistance to ambient light conditions.
Key Features
- Acceptance rate of 98% or higher
- Transaction speed approx. 2.5 seconds per bill
- Standard bezel design
- Supports Israeli New Shekel (ILS)
- Wide-angle bill insertion
- Auto-calibration
- Optical sensor system
- High immunity to ambient light
- Bill Width Accepted: 62–74 mm
- Bill Length Accepted: 120–180 mm
- Operating Temperature: -15°C to 60°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
- Installation: Indoor / Outdoor
Especificaciones técnicas
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 400 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | ILS: 20, 50, 100, 200 |
| Condition | New |
