Descripción

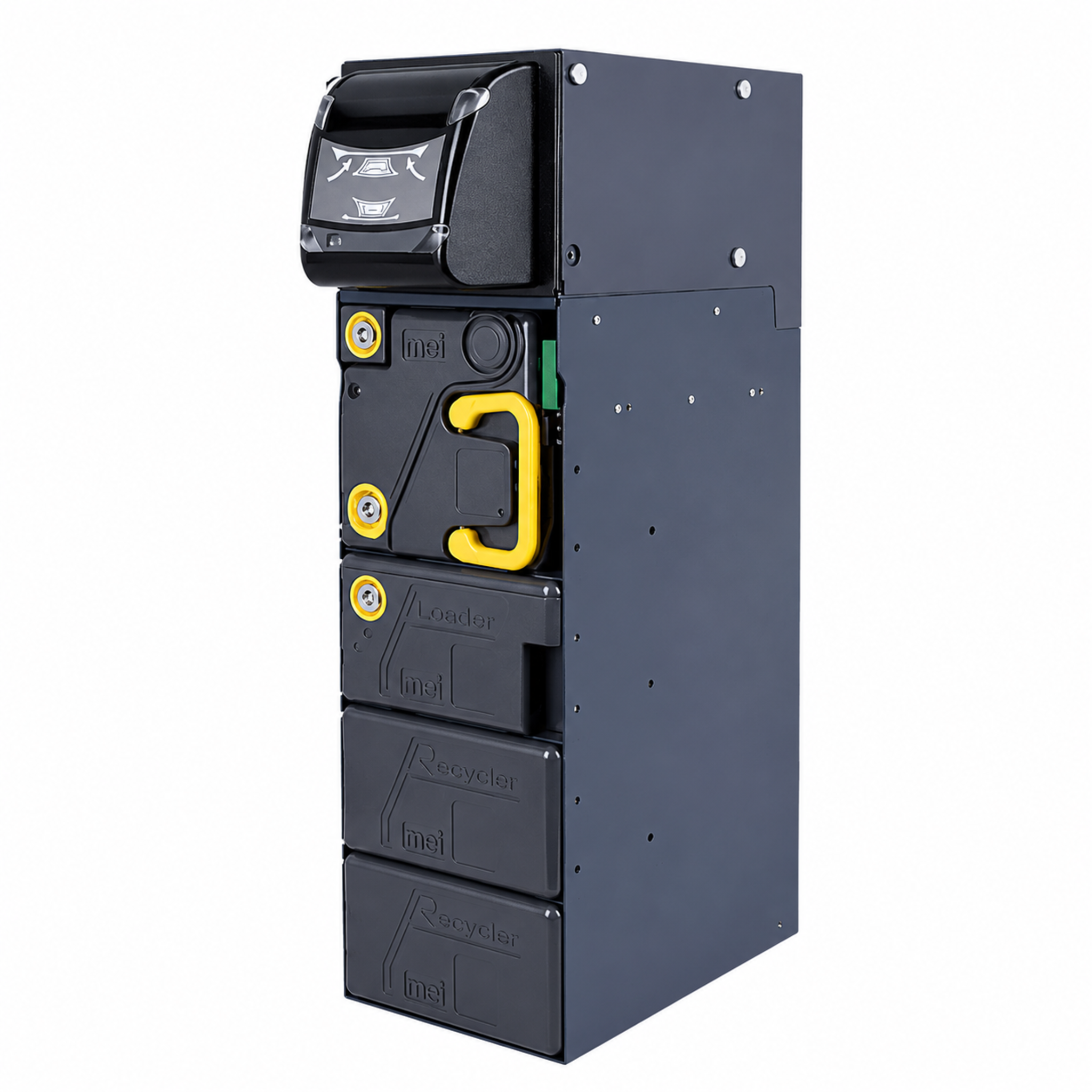

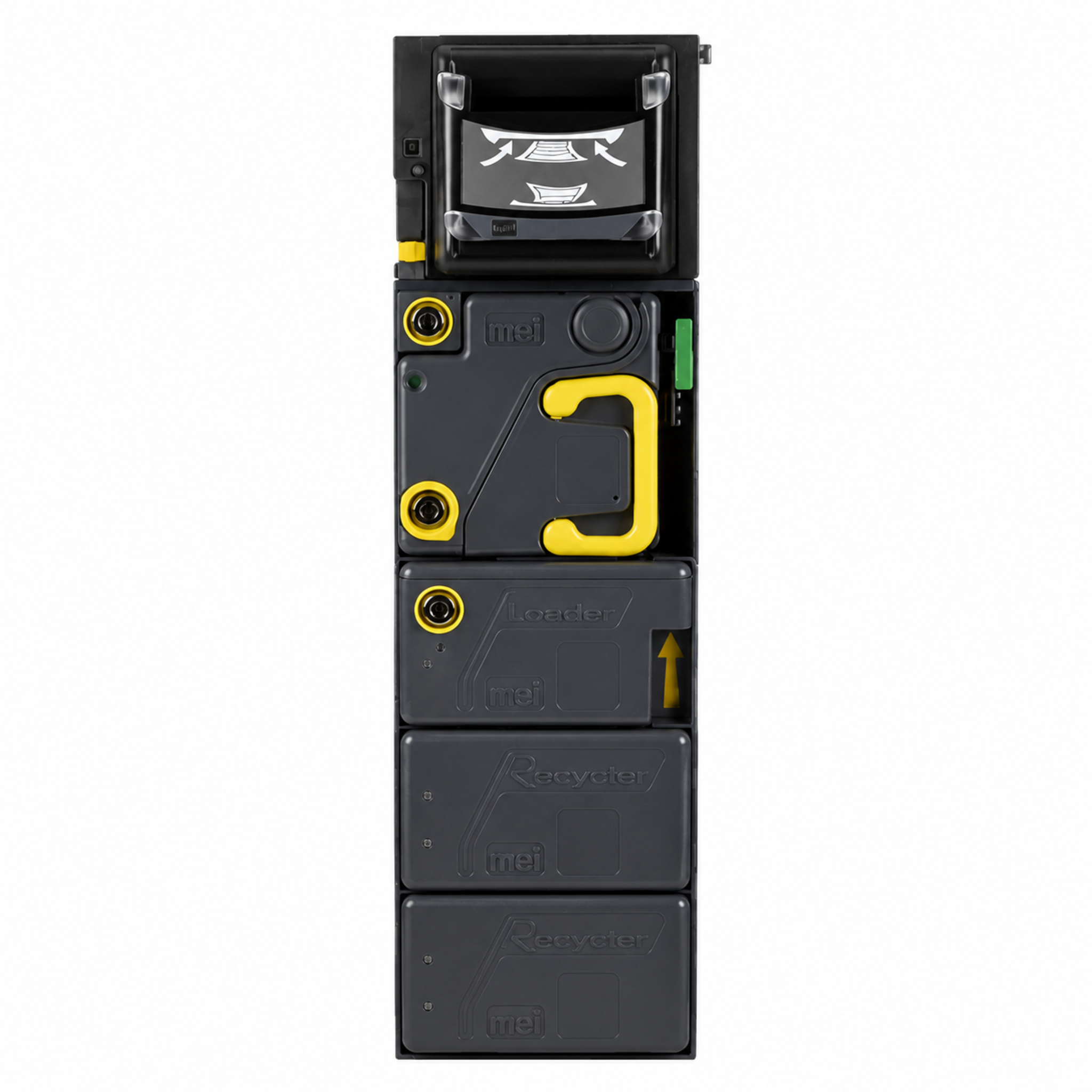

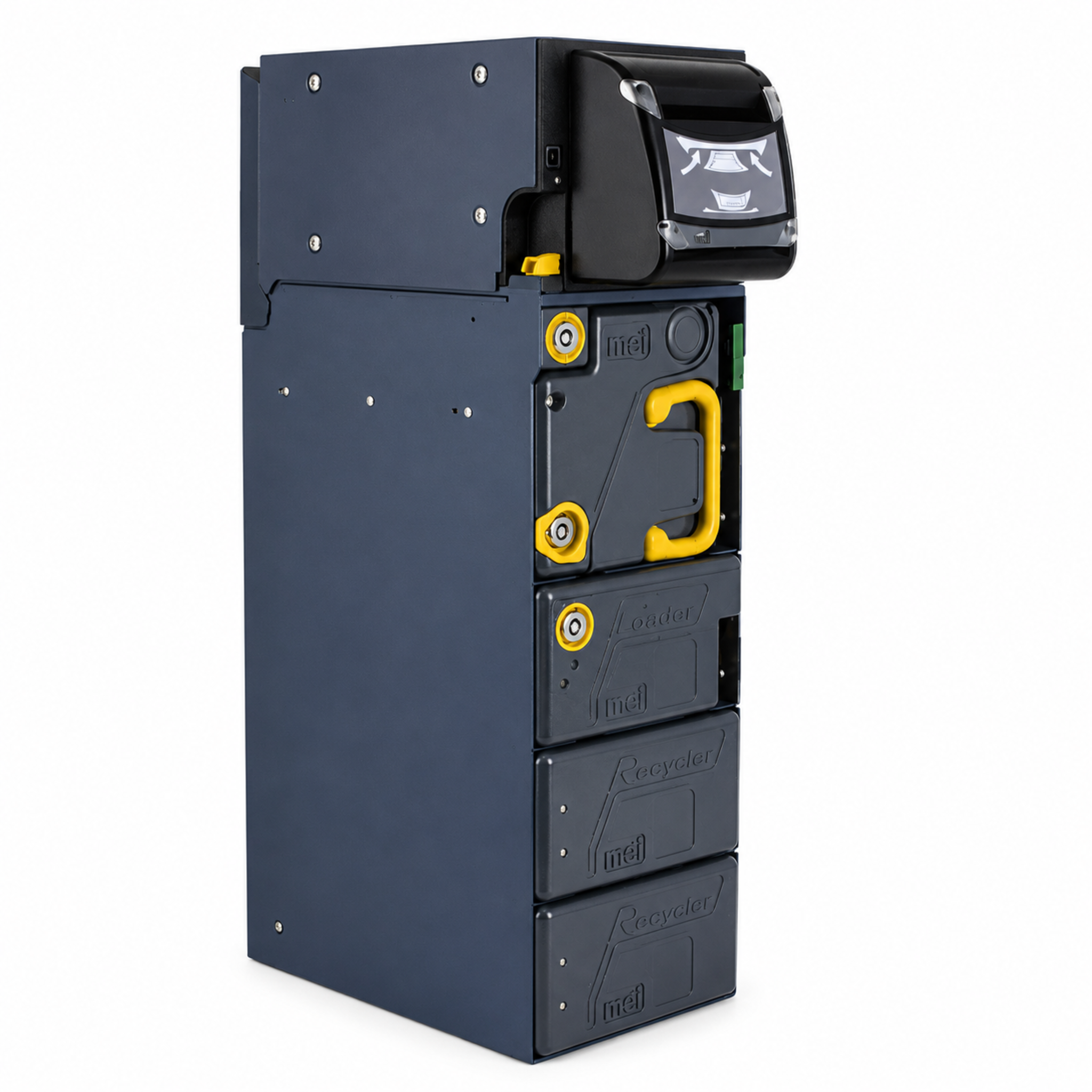

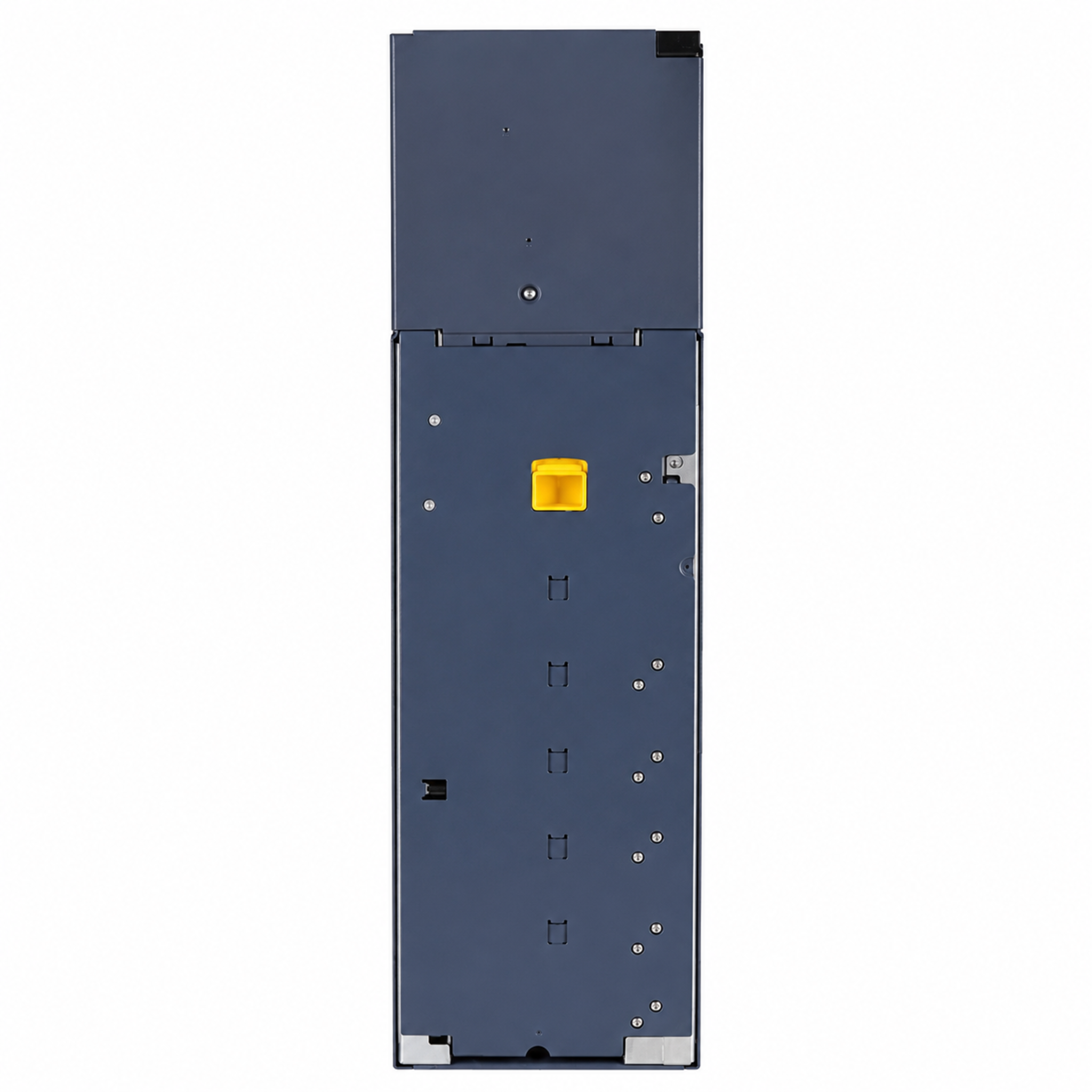

The MEI BNR310 M Full Unit is a complete BNR Advance banknote recycler system consisting of the Main Module B2 and Chassis assembly. Designed for secure cash management, advanced note validation, and reliable banknote recycling, it delivers dependable performance for professional payment environments.
Key Features
- Full Unit Configuration
- Main Module B2
- Chassis Assembly
- BNR Advance Series
- Banknote Recycler System
- Supports Up To 6 Recycled Denominations
- Optical Validation Sensors
- USB Communication Interface
- Remote Firmware Updates
- Remote Note Set Updates
- High Acceptance Accuracy
- Secure Cash Management
- Modular Architecture
- Closed-Loop Cash Recycling
- Genuine MEI Product
- Model: BNR310 M
- Product Type: Full Unit
- Main Module: B2
- Assembly: Chassis
- Series: BNR Advance
- Dimensions (Closed): 604 mm × 165 mm × 275 mm
- Dimensions (Open): 604 mm × 165 mm × 336 mm
- Note Validation Range: 60–83 mm Width, 120–190 mm Length
- Interface Supported: USB
- Denominations Recycled: Up To 6
- Note Memory Capacity: Up To 150 Notes, Four Ways
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -40°C To 70°C
- Operating Humidity: 15% To 95% Relative Humidity
- Firmware Updates: Remote Software Updates For Firmware And Note Sets
- Acceptance Rate: 98% Or Higher
- Power Requirements: 24VDC (-10% / +20%)
- Current Consumption:
- Standby: 0.5A
- Accepting: 8A
- Validation Sensors: Optical Sensors
Technical Specifications
| Brand | Crane MEI |
| Voltage | 24v |
| Condition | New |
