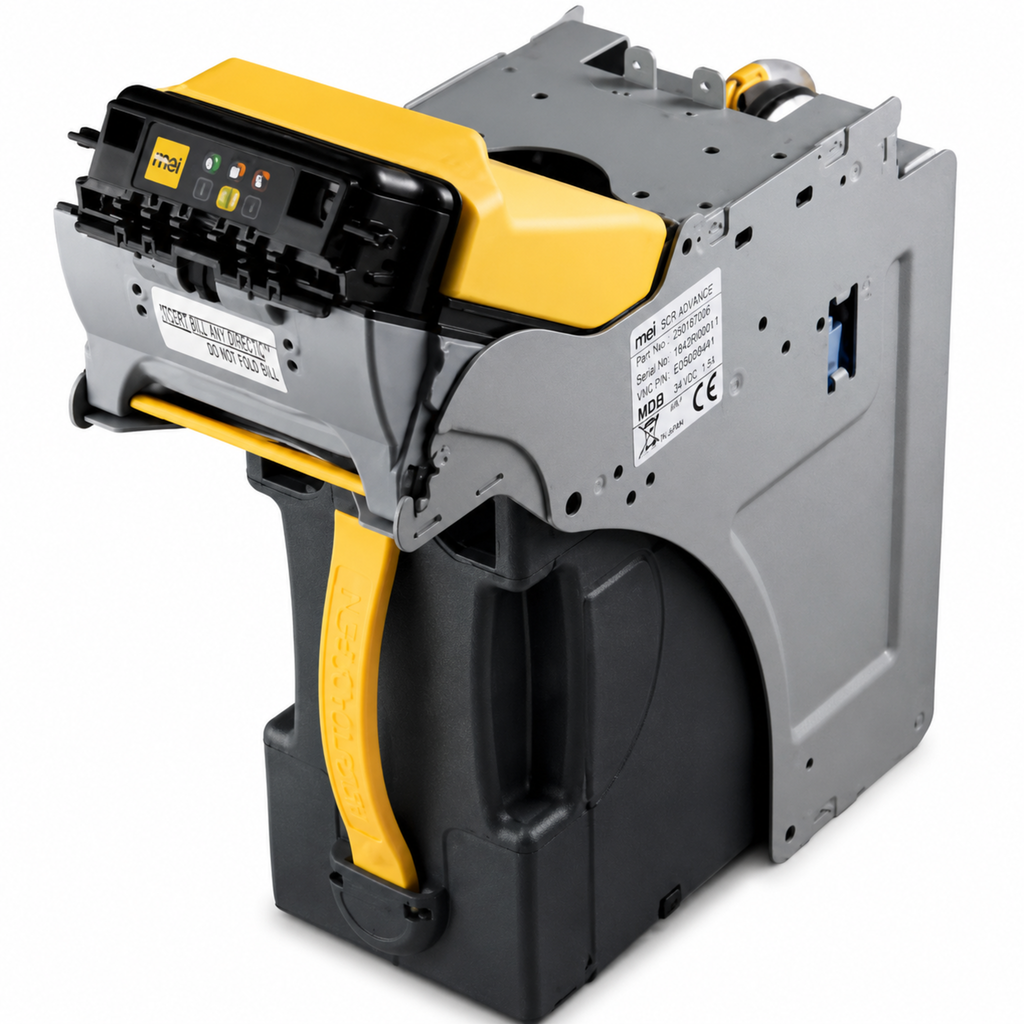

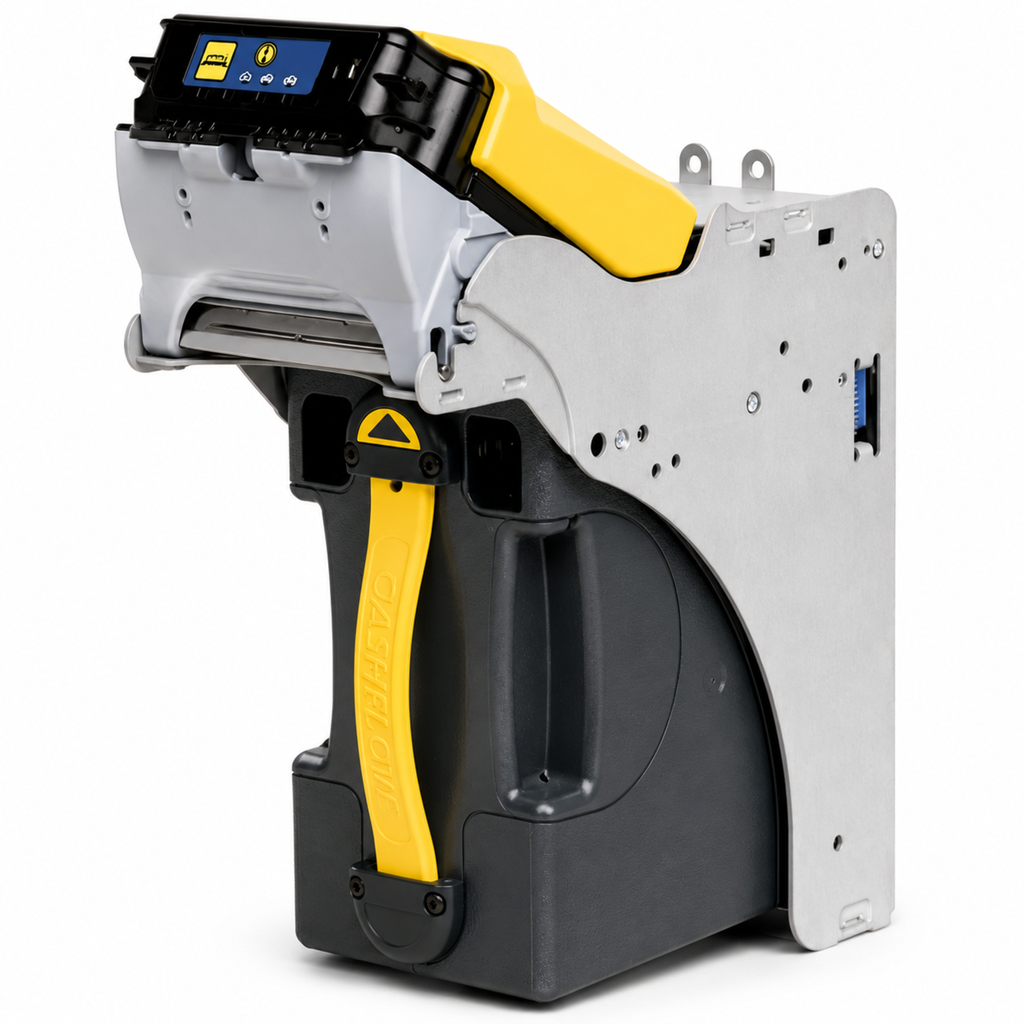

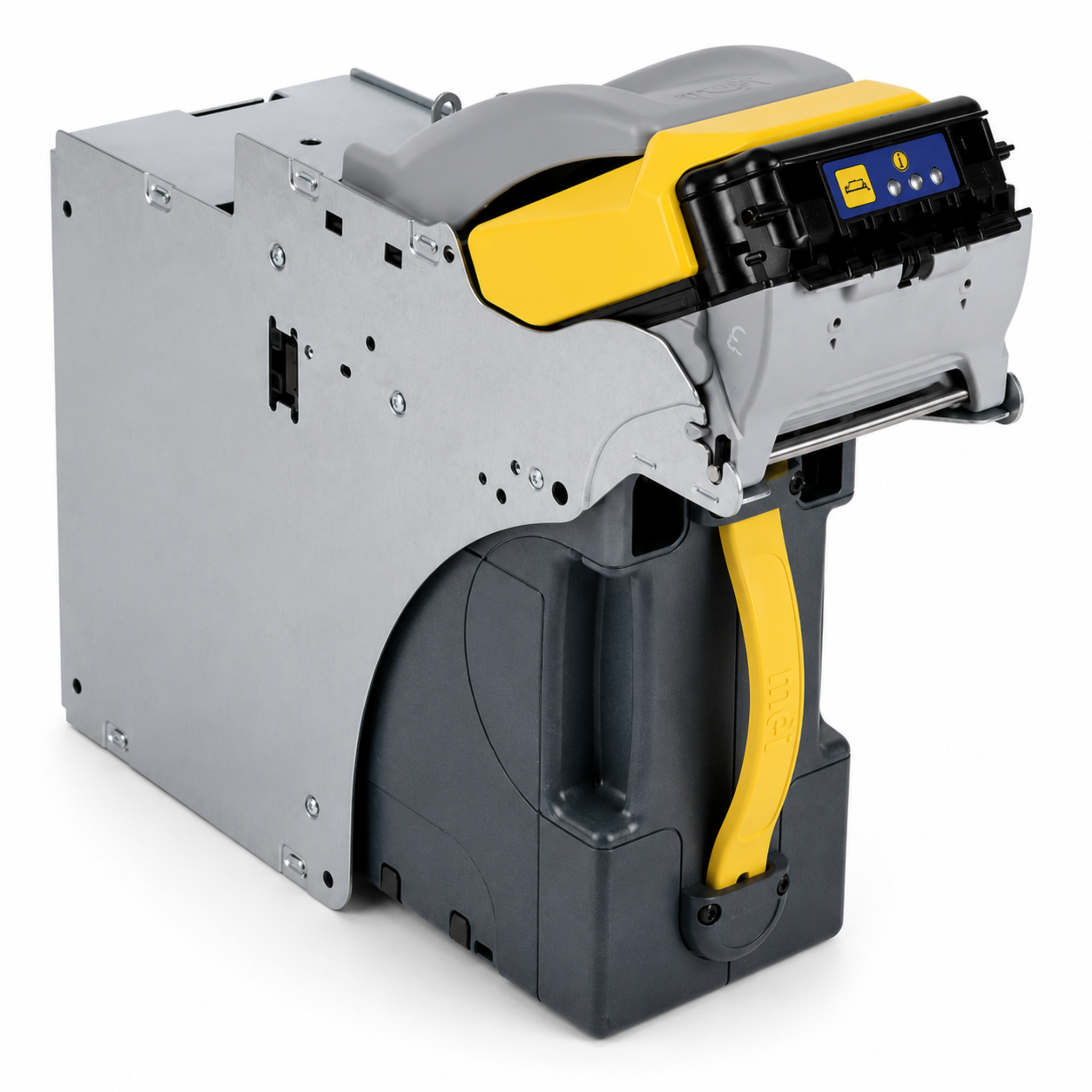

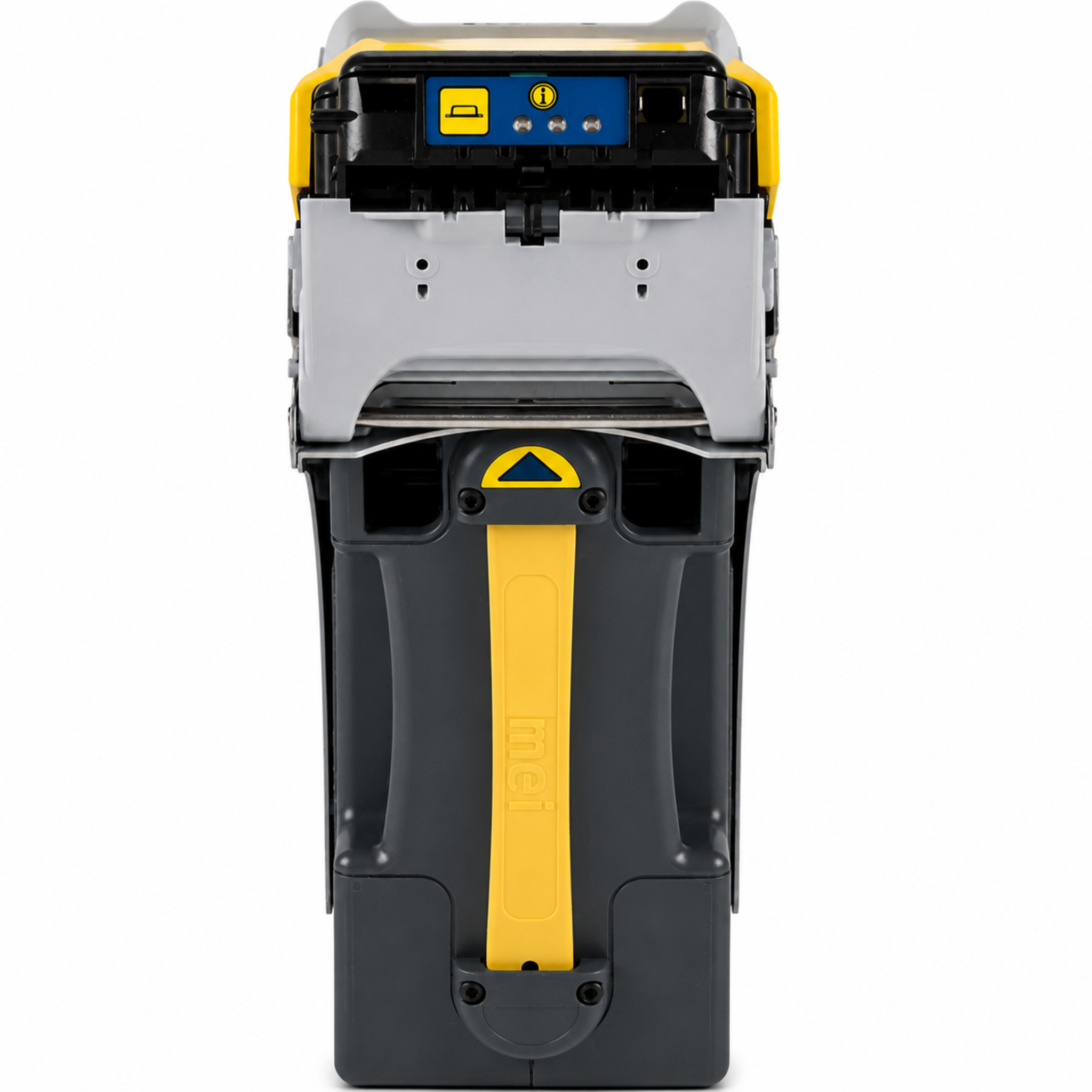

The MEI SCN6617 RS232 SC Advance Upstacker Note Validator is a high-performance banknote validator featuring RS232 communication, Upstacker configuration, advanced note recognition technology, and barcode ticket acceptance. Designed for gaming, kiosk, retail, and unattended payment applications, it delivers reliable note validation, enhanced cash handling flexibility, and exceptional operational efficiency.
Key Features
- SC Advance™ Note Validator
- SCN6617 RS232 Model
- RS232 Communication Interface
- Upstacker Configuration
- Packaged Unit Design
- High First-Pass Acceptance Rate
- Supports Over 140 Global Currencies
- Advanced Recognition Technology
- Barcode Ticket Acceptance
- Four-Way Note Acceptance
- Full Spectral Note Analysis
- Advanced Anti-Fraud Protection
- Sealed Note Path Design
- Anti-Skew Note Transport System
- Fast Note-To-Note Processing
- Durable Industrial Construction
- Low Maintenance Requirements
- Easy Firmware Updates
- Enhanced Machine Uptime
- OEM MEI Product
- Product Type: Note Validator
- Series: SC Advance™
- Model: SCN6617 RS232
- Configuration: SCN66
- Communication Interface: RS232
- Cash Handling Type: Upstacker
- Package Type: Packaged Unit
- Acceptance Rate: 98% Or Greater
- Currency Support: Over 140 Currencies
- Note Acceptance: Four-Way Acceptance
- Note Width: 62 mm – 83 mm
- Note Length: 120 mm – 166 mm
- Escrow: One Note Or One Barcode Coupon
- Transaction Speed: Approximately 2.3 Seconds To Stack
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -30°C To 70°C
- Humidity: 5% To 95% Non-Condensing
- Power Input: 12V – 28VDC
- Standby Power Consumption: 10 Watts
- Accepting Power Consumption: 30 Watts
- Stacking Power Consumption: 70 Watts
Technical Specifications
| Brand | Crane MEI |
| MPN | 252003164P1 |
| Voltage | 12V – 28VDC |
| Condition | New |
