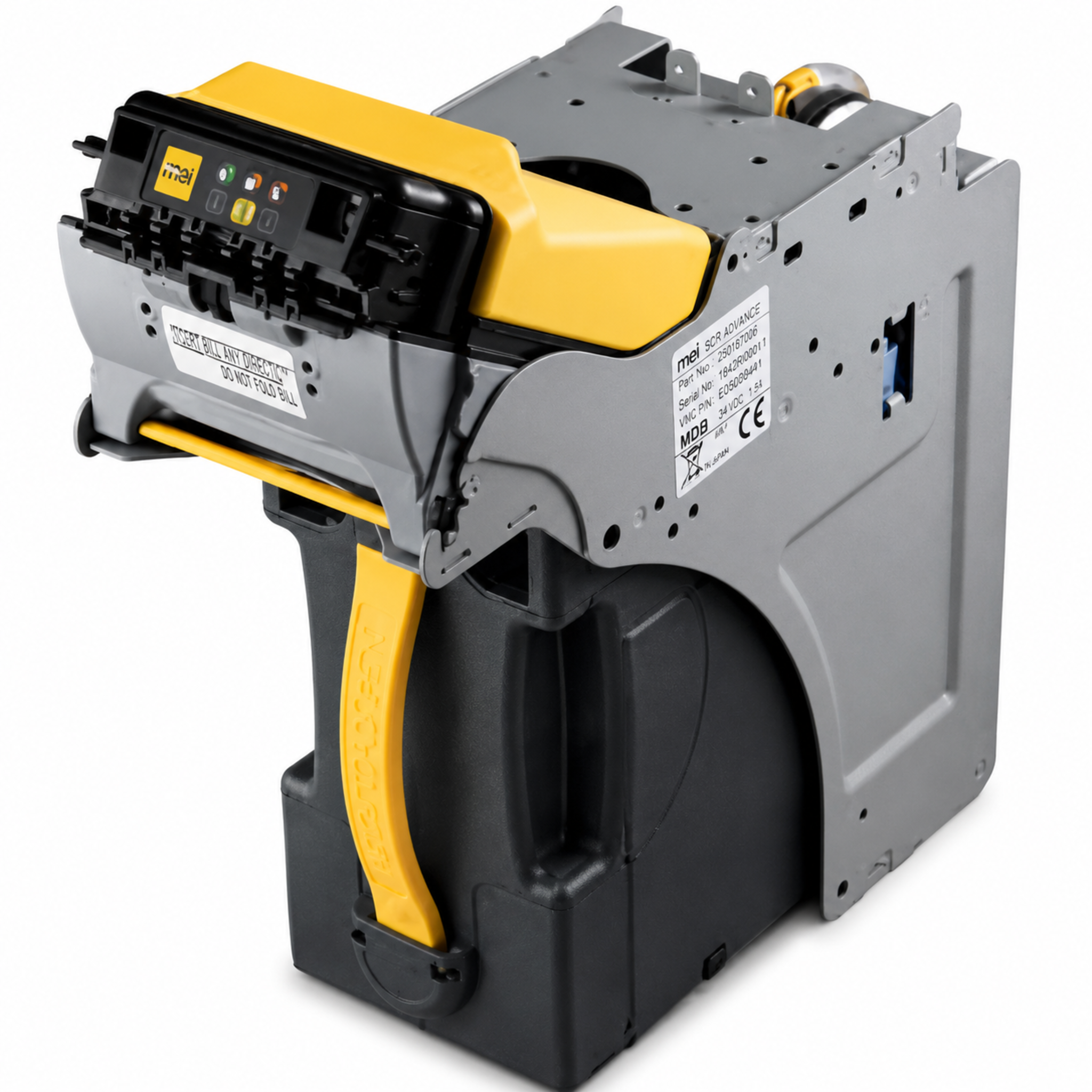

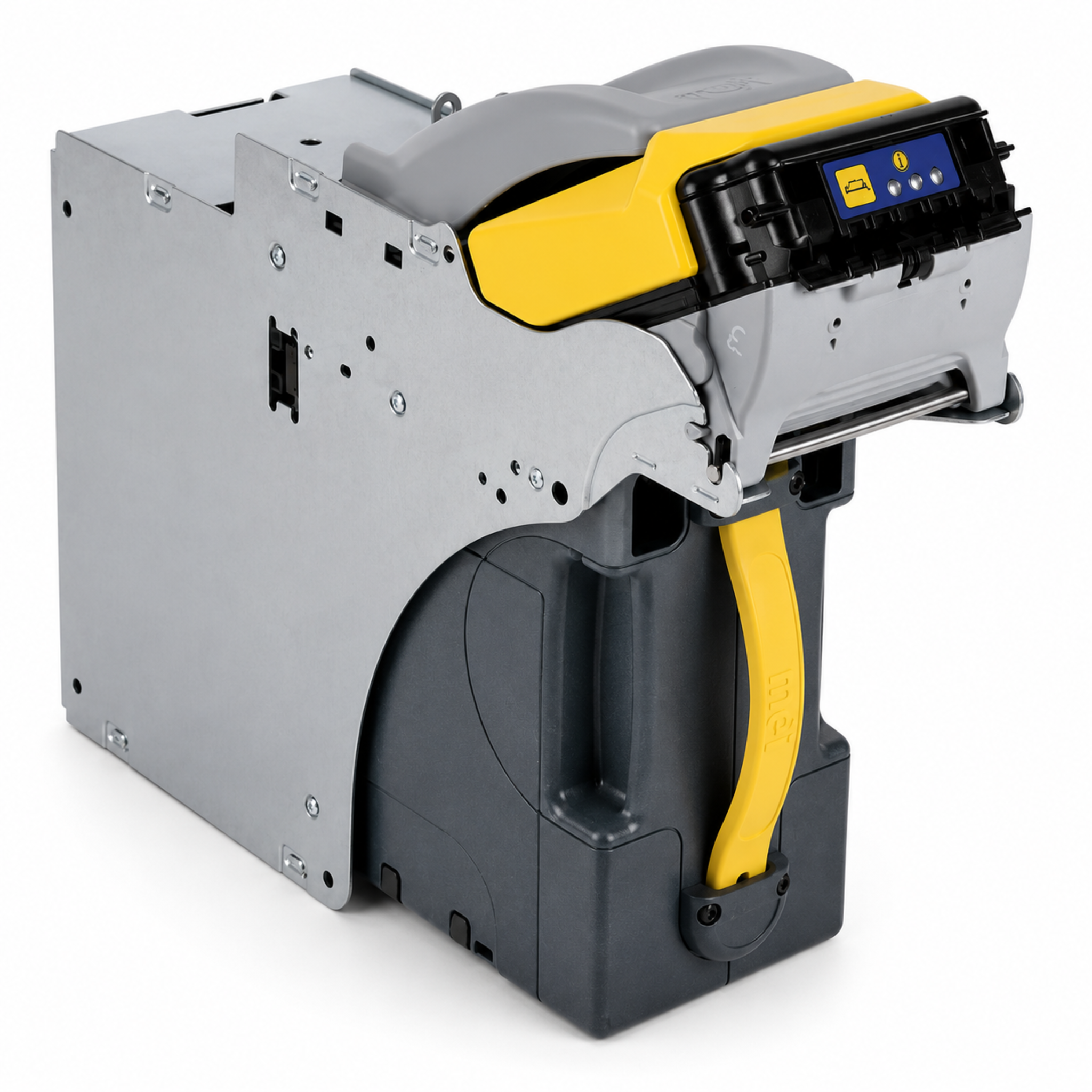

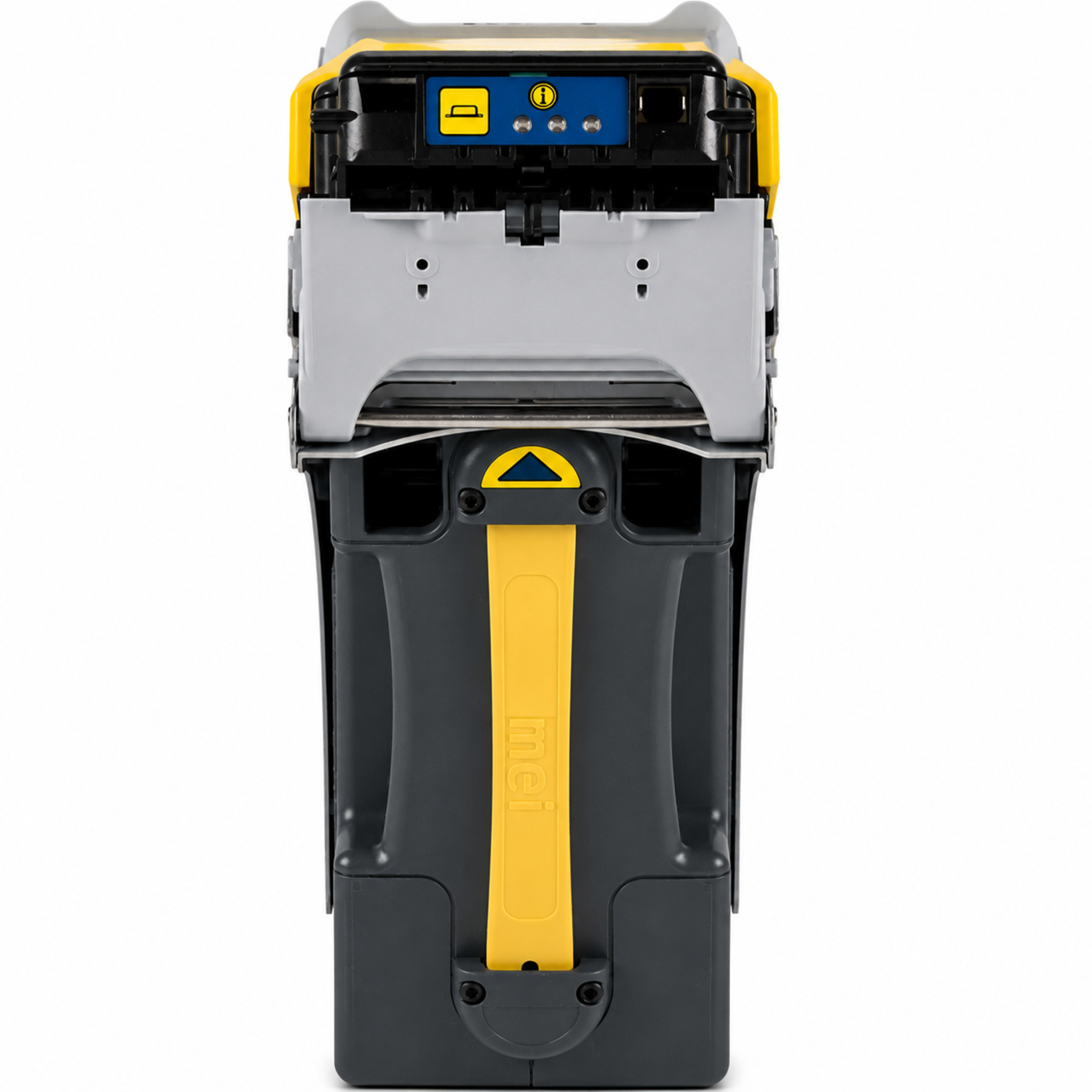

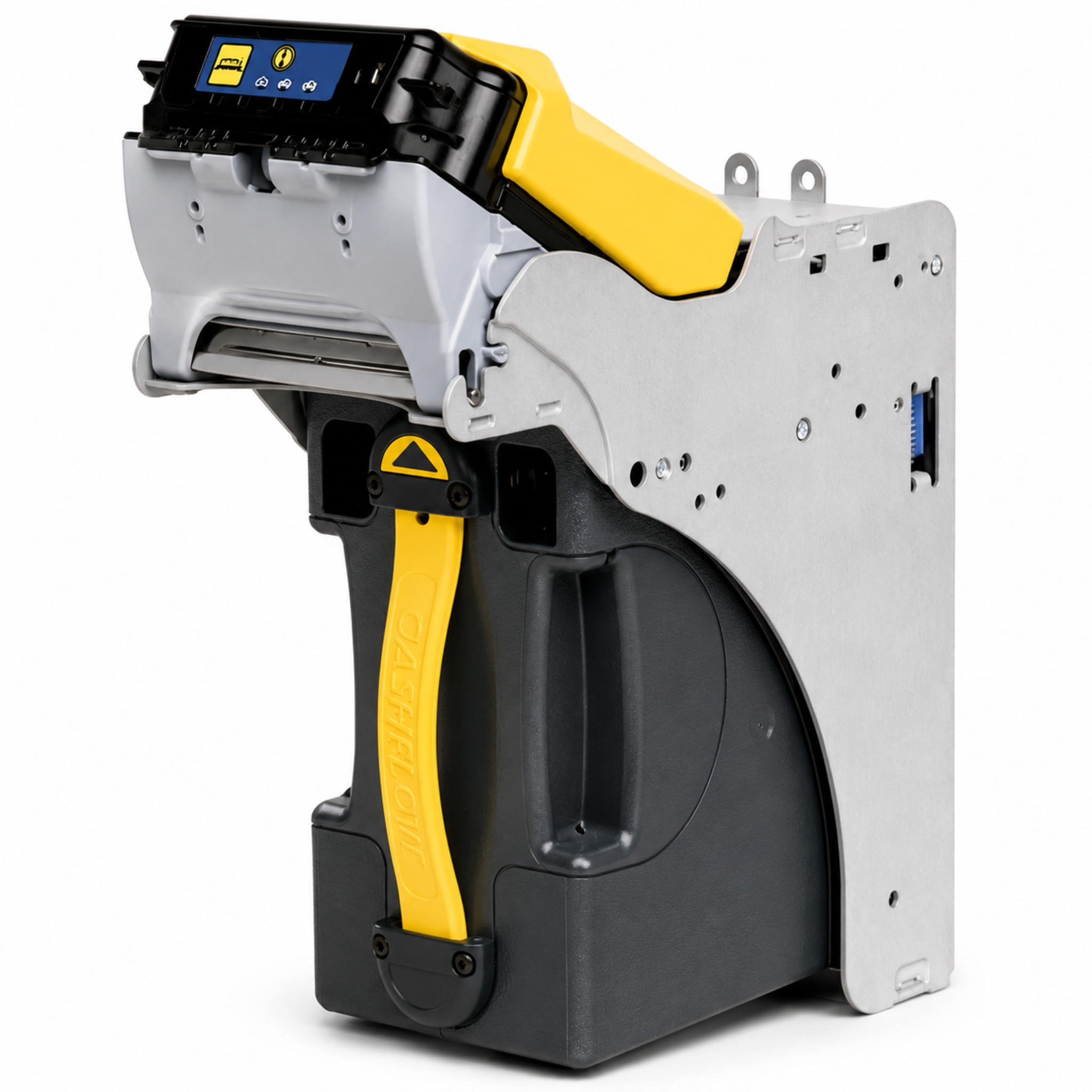

The MEI SCN6627R RS232 Enhanced SC Advance Note Validator is a high-performance banknote validator featuring RS232 communication, Enhanced firmware configuration, and advanced note recognition technology. Designed without barcode reading capability, this validator is ideal for gaming, kiosk, vending, retail, and unattended payment applications Key Features
Key Features
- Genuine MEI SC Advance™ Note Validator
- SCN6627R RS232 Enhanced Configuration
- RS232 Communication Interface
- Enhanced Firmware Platform
- Without Barcode Reader
- Advanced Note Recognition Technology
- High First-Pass Acceptance Rate
- Supports Multiple Global Currencies
- Four-Way Bill Insertion
- Full Spectral Note Validation
- Advanced Anti-Fraud Protection
- Sealed Note Path Design
- Anti-Skew Transport Technology
- Fast Note Processing
- Durable Industrial Construction
- Improved Security Features
- Easy Firmware Updates
- Low Maintenance Requirements
- High Reliability Performance
- OEM Factory Configuration
- Product Type: Banknote Validator
- Series: SC Advance™
- Model: SCN6627R RS232
- Configuration: SCN66
- Communication Interface: RS232
- Firmware Type: Enhanced
- Barcode Reader: Not Included
- Acceptance Rate: 98% Or Greater
- Currency Support: Multiple Global Currencies
- Note Insertion: Four-Way Acceptance
- Note Width Range: 62 mm – 83 mm
- Note Length Range: 120 mm – 166 mm
- Escrow Capacity: One Note
- Processing Speed: Approximately 2.3 Seconds
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -30°C To 70°C
- Humidity Range: 5% To 95% Non-Condensing
- Input Voltage: 12V – 28VDC
- Standby Power Consumption: 10 Watts
- Accepting Power Consumption: 30 Watts
- Peak Power Consumption: 70 Watts
Technical Specifications
| Brand | Crane MEI |
| MPN | 252002146P1 |
| Voltage | 12V – 28VDC |
| Condition | New |
