Descripción

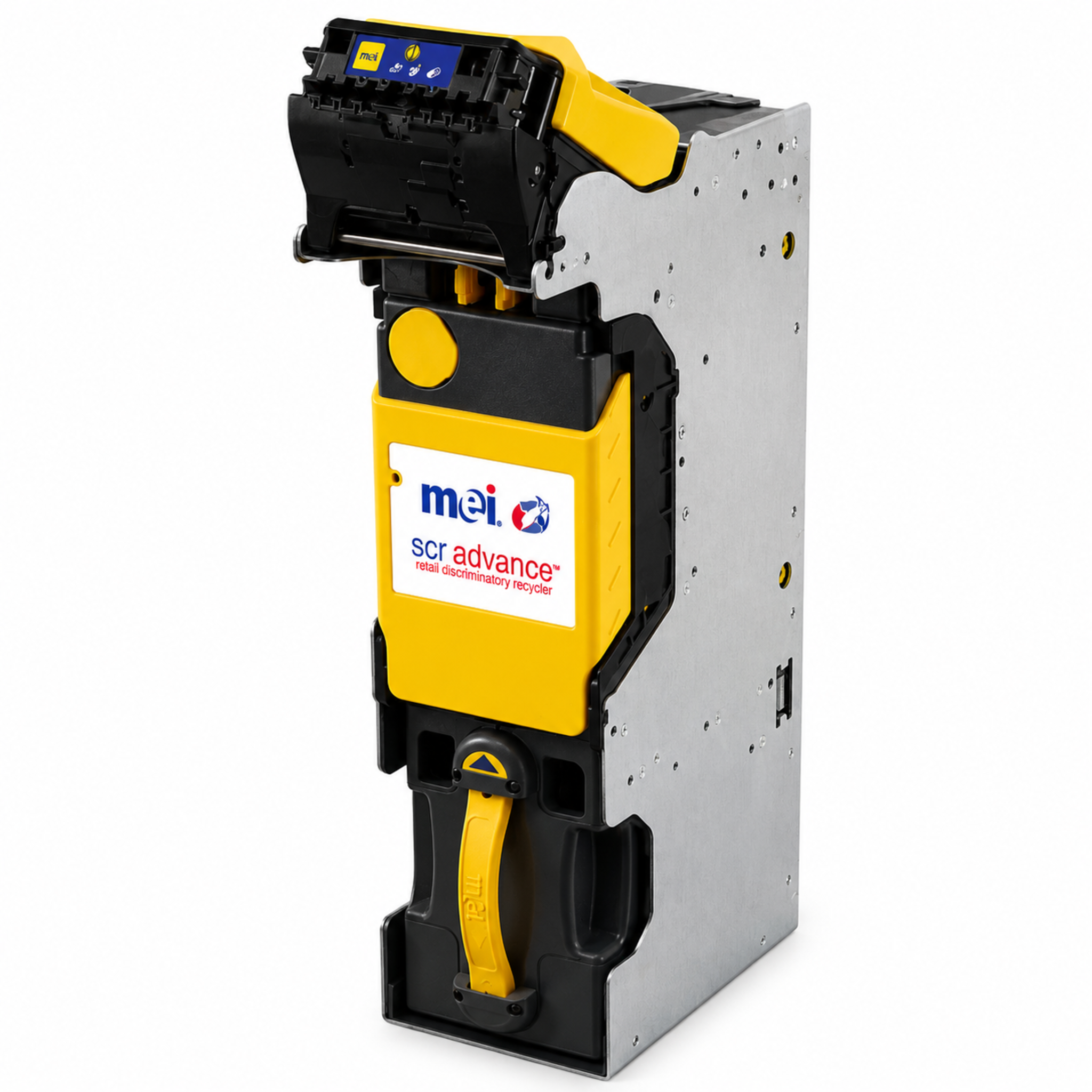

The MEI SCR8327 Banknote Recycler Module is a compact SCR Advance™ cash recycling module featuring Single Note Escrow (SNE) operation, RS232 communication, 2-denomination recycling, and Latch security. Designed for gaming, kiosk, retail, and self-service payment applications, it delivers reliable banknote acceptance, recycling, and payout performance while minimizing operating costs.
Key Features
- SCR Advance™ Banknote Recycler Module
- SCR8327 Model
- SCNR8327 Recycler Assembly
- SNE (Single Note Escrow)
- RS232 Communication Interface
- 2-Denomination Recycling
- Latch Security Configuration
- SC Advance™ Acceptor Technology
- Anti-Skew Banknote Processing
- High First-Pass Acceptance Rate
- Spiral Drum Recycling Technology
- Compact Footprint Design
- Single Note Payout
- Universal Currency Support
- Robust Accounting Functions
- Maintenance-Friendly Construction
- Remote Firmware Updates
- Remote Note Set Updates
- Reduced Downtime
- Low Cost Of Ownership
- High Reliability Performance
- Product Type: Banknote Recycler Module
- Series: SCR Advance™
- Model: SCR8327
- Configuration: SNE
- Recycler Assembly: SCNR8327
- Interface: RS232
- Protocol: REBDS
- Recycling Denominations: 2
- Escrow Type: Single Note Escrow
- Recycling Technology: Spiral Drum Recycling
- Recycled Notes Capacity: 2 × 60 Note Drums
- Payout Type: Single Note
- Operating Temperature: 0°C To +60°C
- Inlet Width: Up To 83 mm
- Power Supply: 24 VDC (-10% / +20%)
- Maximum Current Consumption: 6 Amps
- Software Updates: Remote Firmware And Note Set Updates
- ADA / DDA Compliant Consumer Zone
- Security Type: Latch
- Height: 489 mm
- Width: 114 mm
- Depth: 236 mm
- Weight: 7.57 kg
Technical Specifications
| Brand | Crane MEI |
| MPN | 252802007P1 |
| Voltage | 24v |
| Condition | New |
