WEL-RM044 Wiring Harness Cable | AMP 172340-1 to BLK-15*2(KEY) | 12V DC

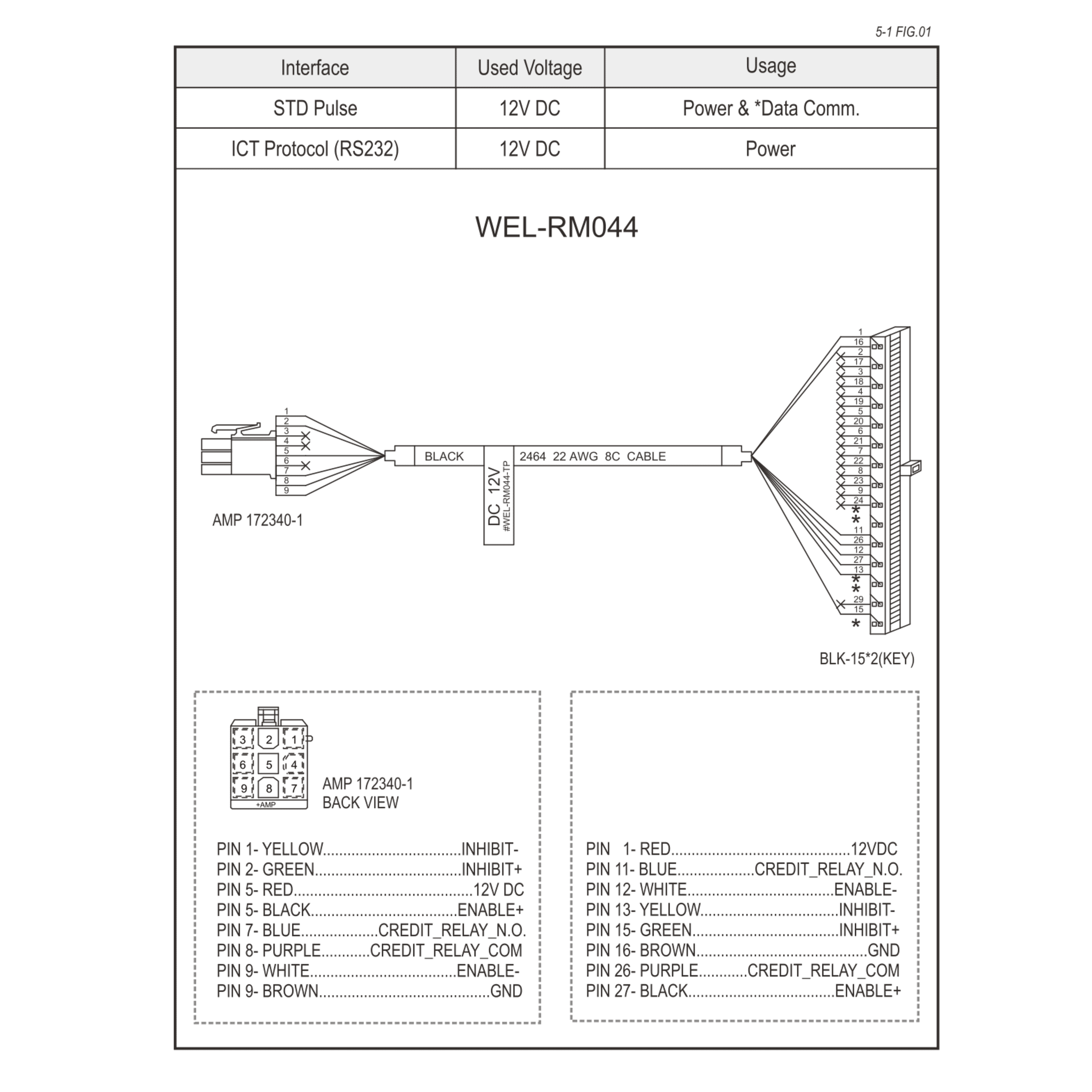

The WEL-RM044 is a 12V DC wiring harness cable designed to connect an AMP 172340-1 plug to a BLK-15*2(KEY) connector. Based on the wiring diagram, this harness supports STD Pulse operation for power and data communication, and ICT Protocol (RS232) for power.

This harness includes clearly mapped pin assignments for essential functions such as 12V DC power, ground, Enable + / Enable -, Inhibit + / Inhibit -, Credit Relay N.O., and Credit Relay COM.

The WEL-RM044 is ideal as a replacement or service cable when you need the correct connector and pinout configuration for compatible bill acceptor and machine interface applications.

Key Features

• Part Number: WEL-RM044
• Connector 1: AMP 172340-1
• Connector 2: BLK-15*2(KEY)
• Operating Voltage: 12V DC
• Interface Support: STD Pulse and ICT Protocol (RS232)
• Functions Supported: Power, data communication, enable, inhibit, and credit relay connections
• Application: Replacement wiring harness for compatible bill acceptor setups

Pin Functions

This harness wiring includes connections for the following signal and power assignments:

• 12V DC
• Ground (GND)
• Enable+
• Enable-
• Inhibit+
• Inhibit-
• Credit Relay N.O.
• Credit Relay COM

Please verify your machine’s connector type and pinout requirements before ordering to ensure compatibility.
