Descripción

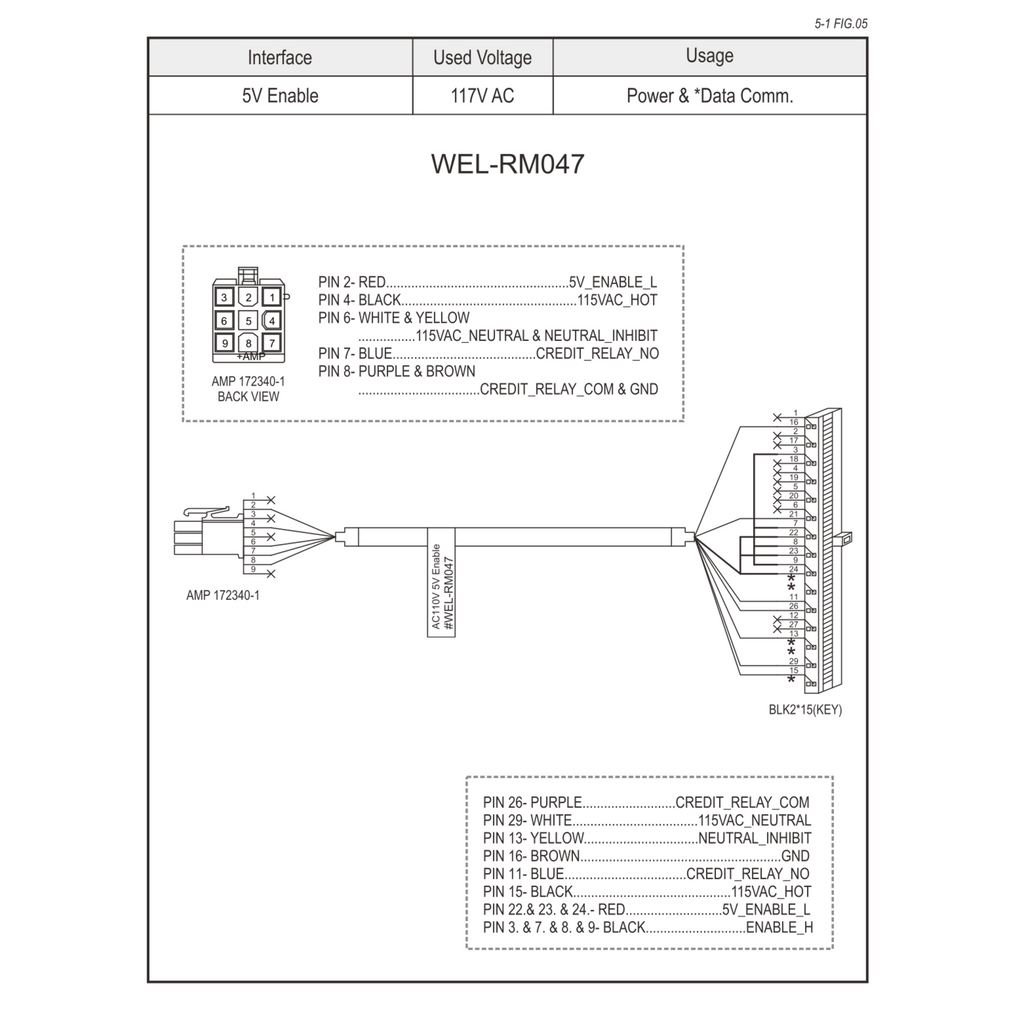

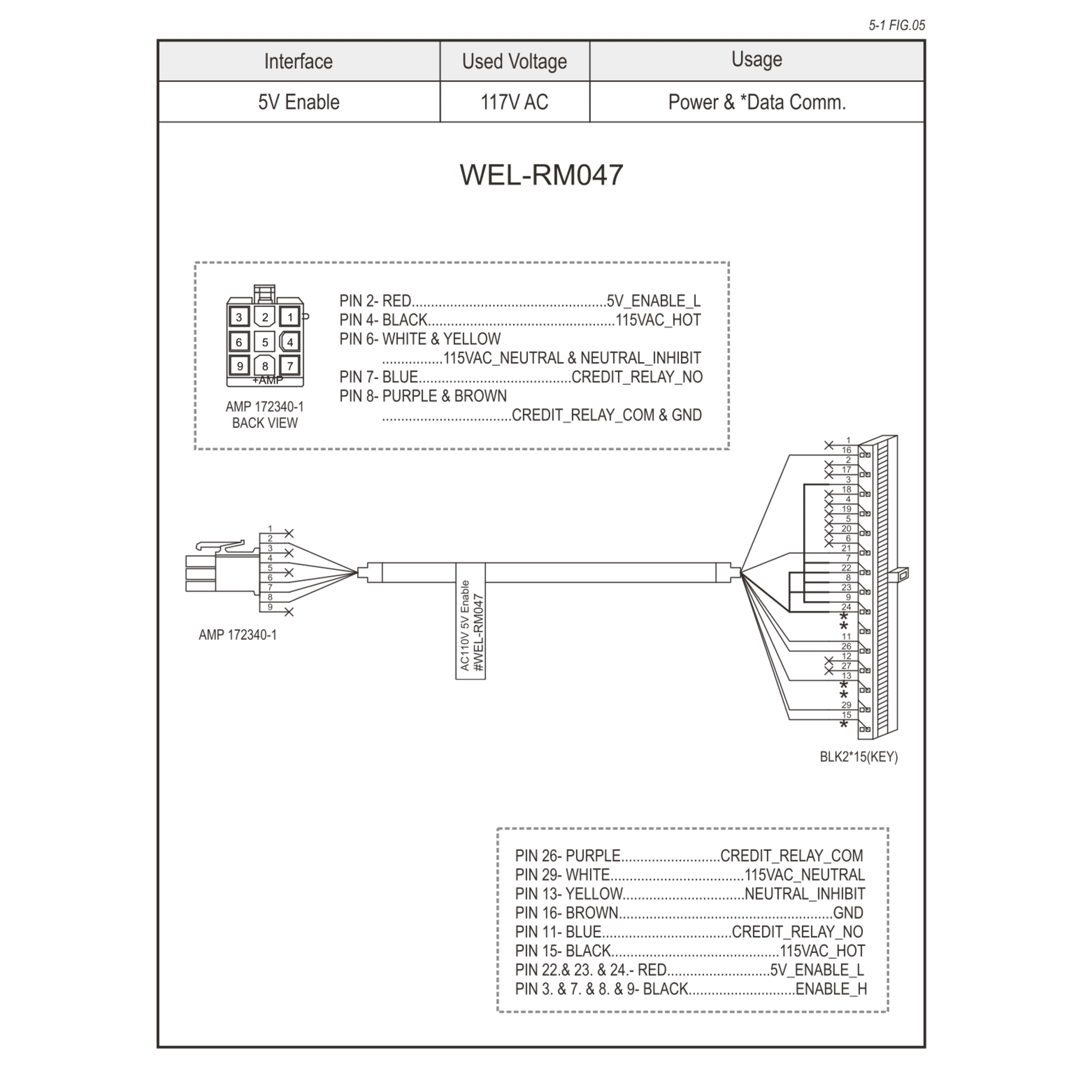

The WEL-RM047 is a 117V AC wiring harness cable designed to connect an AMP 172340-1 plug to a BLK2*15(KEY) connector. According to the wiring diagram, this harness is configured for 5V Enable interface applications and is used for power and data communication.
This harness is built for compatible bill acceptor and machine interface setups requiring 115VAC hot, 115VAC neutral, neutral inhibit, 5V enable low, enable high, ground, and credit relay connections. It is ideal as a replacement or service harness where the correct connector style and pinout are required.
Key Features
- Part Number: WEL-RM047
- Connector 1: AMP 172340-1
- Connector 2: BLK2*15(KEY)
- Operating Voltage: 117V AC
- Interface Type: 5V Enable
- Usage: Power & Data Communication
- Functions Supported: AC power, enable signals, inhibit, ground, and credit relay connections
- Application: Replacement wiring harness for compatible AC-powered bill acceptor systems
Pin Functions
This harness wiring includes connections for the following signal and power assignments:
- 115VAC Hot
- 115VAC Neutral
- Neutral Inhibit
- 5V Enable L
- Enable H
- Ground (GND)
- Credit Relay N.O.
- Credit Relay COM
Please verify your machine’s connector type, interface type, voltage requirements, and pinout before ordering to ensure compatibility.
Especificaciones técnicas
| Brand | ICT |
| Voltage | 110v |
| Condition | New |
