Description

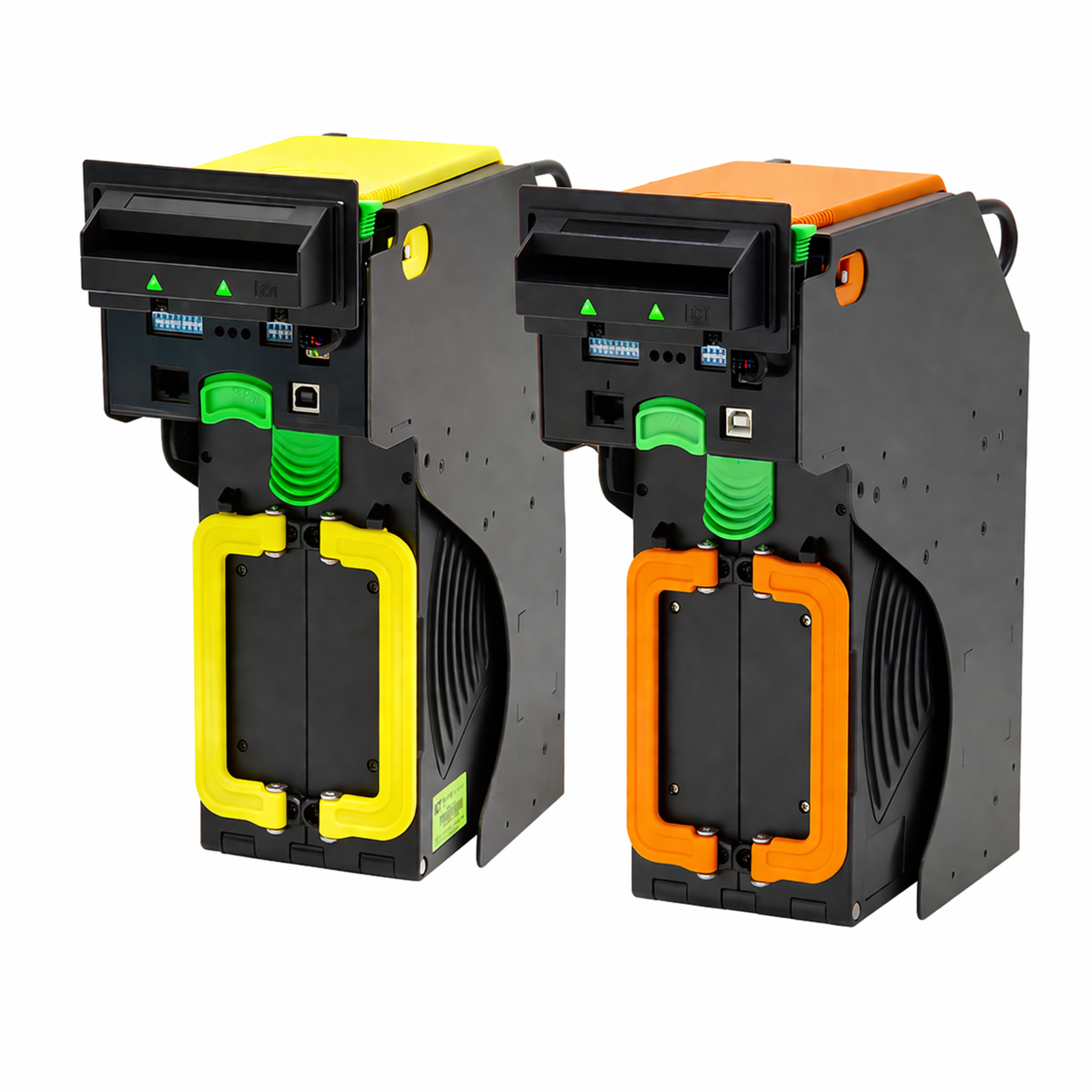

The ICT NBA-D1TR-5BU-US6 Bill Validator (NBA Series) is designed for high-security bill validation in vending, gaming, and automated payment systems.
It operates on DC 12V–24V power and supports Pulse and ICT104U (serial) communication, ensuring compatibility with a wide range of systems.
This model includes IR Anti-fish technology, along with barcode and RFID support, providing enhanced security and modern functionality.
It comes with 4 types of harness included, allowing flexible installation options. The validator also features a 500 note double locked cashbox with yellow shell for secure and easy cash handling.
According to the NBA installation guide, the series provides high acceptance accuracy, auto bill centering, and stable performance in demanding environments .
Key Features
- High security optical bill detection system
- Pulse and ICT104U (serial) communication
- IR Anti-fish (anti-string) technology
- Barcode reading support (coupon/ticket)
- RFID support
- 500 note double locked cashbox (yellow shell)
- 4 types of harness included
- Four-way bill insertion
- Auto bill centering function
- Fast firmware upgrade support
- Interface / Protocol: Pulse / ICT104U (Serial)
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | USD: $1, $5, $10, $20, $50, $100 |
| Condition | New |
