Description
The ICT WEL-RXBA21 Cable supports ccTalk interface with 12/24V DC for power and data communication. Designed for vending and amusement machine integration.
WEL-RXBA21 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| ccTalk | 12/24V DC | Power & *Data Comm. |

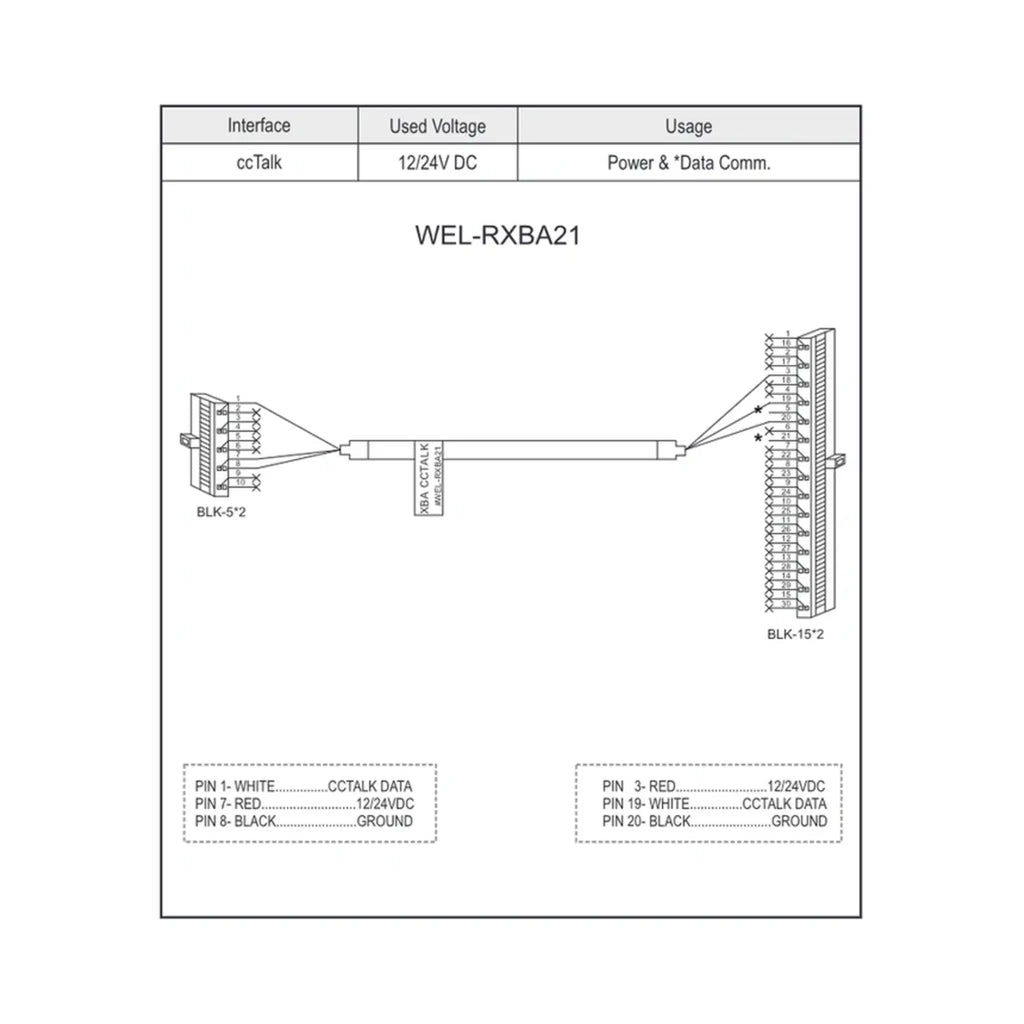

WEL-RXBA21
BLK-5*2 Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | White | CCTALK DATA |
| PIN 7 | Red | 12/24VDC |
| PIN 8 | Black | GROUND |
BLAK-15*2 Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 3 | Red | 12/24VDC |
| PIN 19 | White | CCTALK DATA |
| PIN 20 | Black | GROUND |
Technical Specifications
| Brand | ICT |
