Description

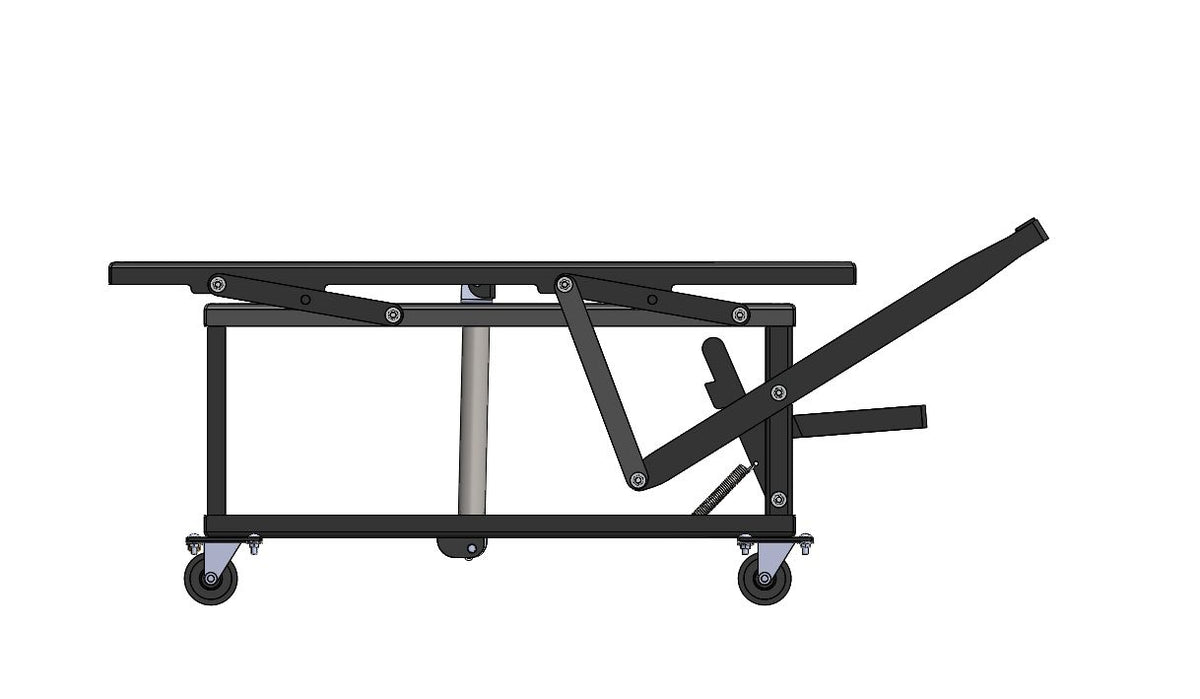

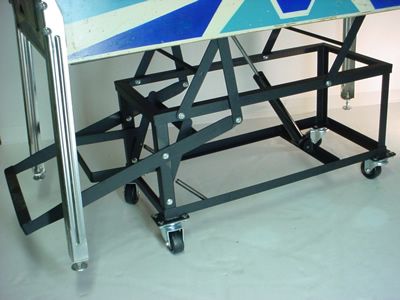

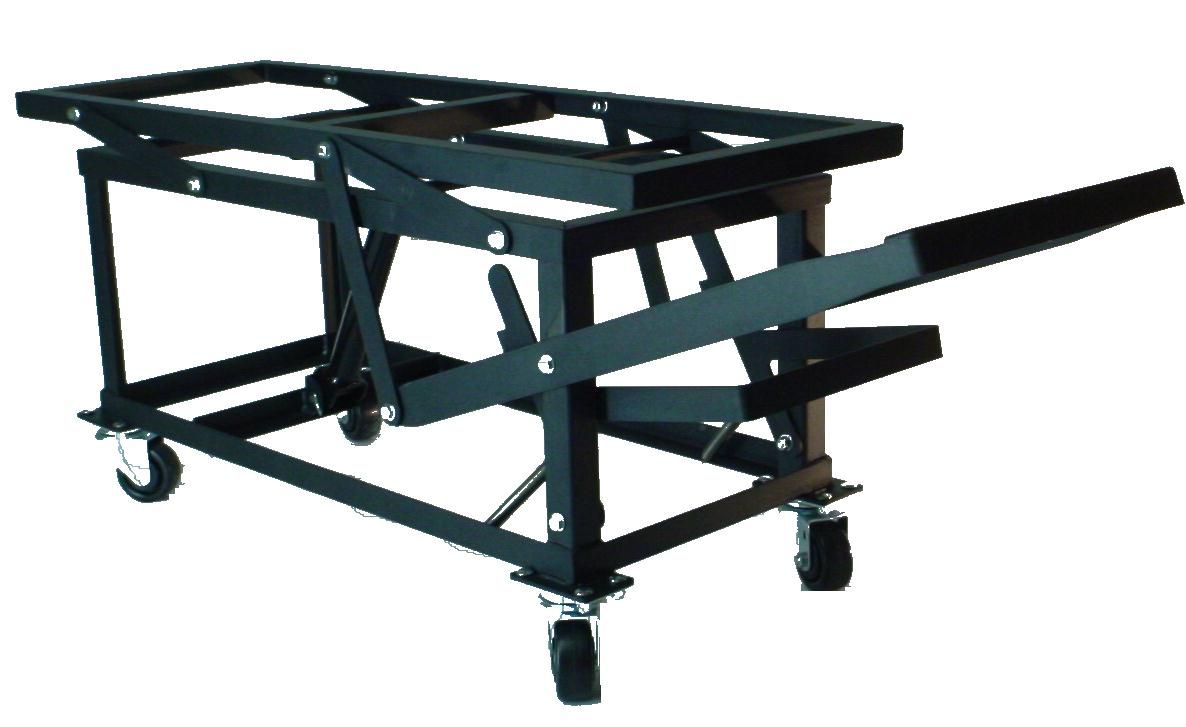

The LD-1 hydraulic pinball lift is designed to raise a pinball machine for service and handling. Its custom hydraulic cylinder is described by the supplier as providing a controlled lowering action under normal loads, helping make descent more manageable during routine work.
Features and specifications
- Raised height: 26 inches.
- Lowered height: 19-1/2 inches.
- Unit weight: 70 pounds.
- Black wrinkle powder-coated finish.
- Handle assembly requires two accessible bolts; the supplier identifies UPS shipment as an available method.
Selection and installation notes
Check the machine's underside clearance and the lift's contact arrangement before use. A rated lifting capacity is not provided in the listing and should be confirmed before selecting the lift for a particular load. Follow the manufacturer's operating instructions and use appropriate handling procedures whenever lifting equipment.
