Description

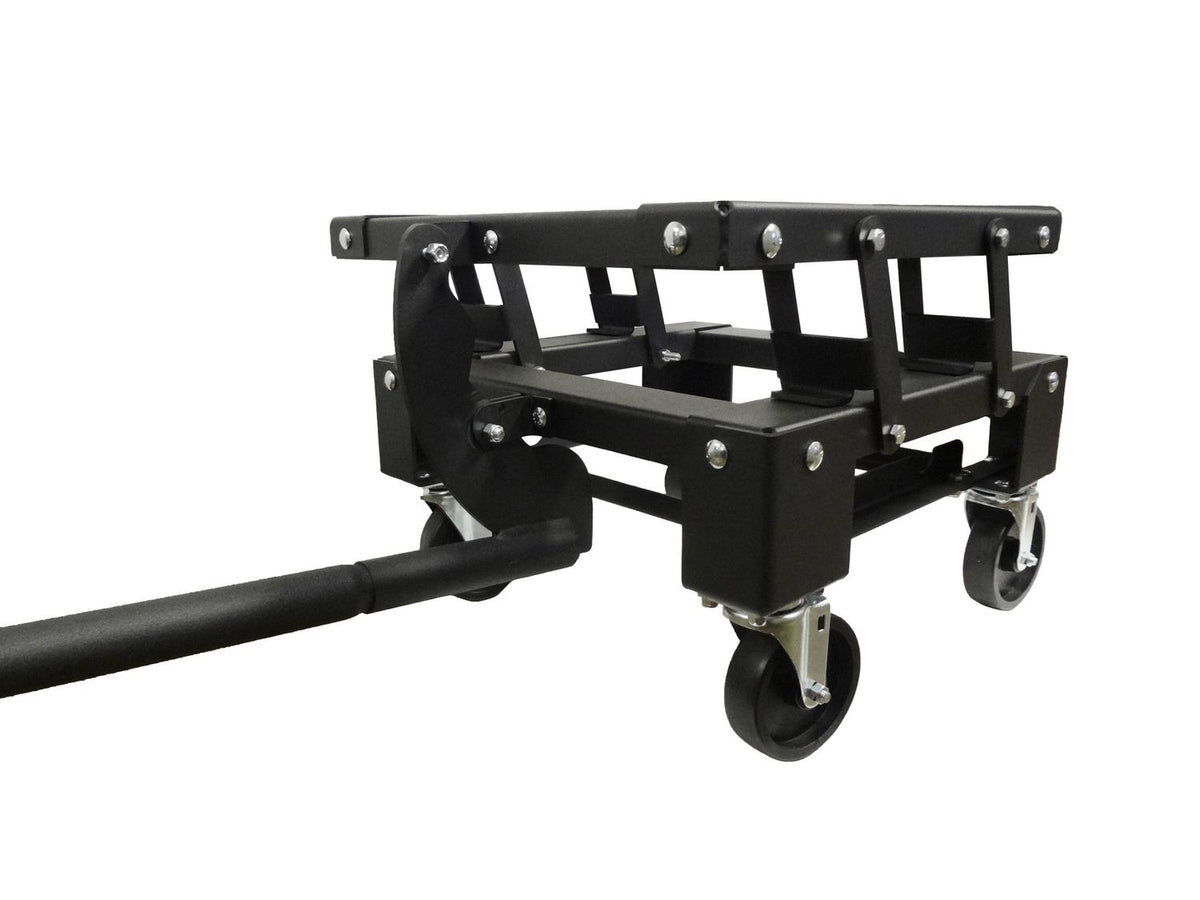

The LD-2-R lifting device is intended for moving compatible coin-operated pool tables and air hockey tables. It combines a short lifting range with rolling wheels and a locking pin, allowing the table to be supported at the raised position during movement.
Features and specifications
- Lowered height: 14-5/8 inches.
- Raised height: 17 inches.
- Five-inch hard-plastic wheels for use on hard floors and carpet.
- Locking pin maintains the raised position.
- Two-piece handle stores beneath the device and has a rubber-coated grip.
Selection and installation notes
Before use, confirm the table's clearance, support points, and suitability for the device. The product listing does not state a rated load capacity, so obtain that information before assigning the lift to a particular table. Plan the travel path and follow the manufacturer's lifting and moving procedures.
