Description

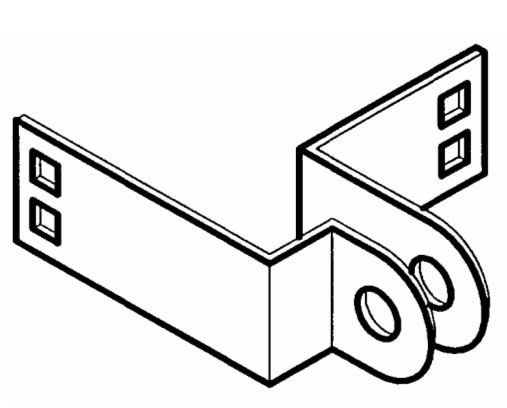

The S-12 corner-bracket series provides a choice of profiles for cabinet installations where the bracket must fit around an edge or trim. Each version uses 1/8-inch steel, with the drop dimension determining how far the formed section reaches around the cabinet detail.
Features and specifications
- Smooth black powder-coated steel construction.
- Mounting hardware is included.
- Available drops: flush, 1/2 inch, 3/4 inch, 1 inch, 1-1/2 inches, and 2 inches.
- Flush corresponds to S-12-SF; the other model designations follow their stated drop size.
- The drop is the bend distance around the cabinet trim, not the overall bracket length.
Selection and installation notes
Measure the cabinet edge and trim before choosing a drop. A bracket that is too shallow or too deep may not align with the intended mounting surface. Custom dimensions are described by the supplier as available for orders of 50 or more, but are not selectable standard variants here; contact BillAcceptors.us to discuss a custom requirement.
