Description

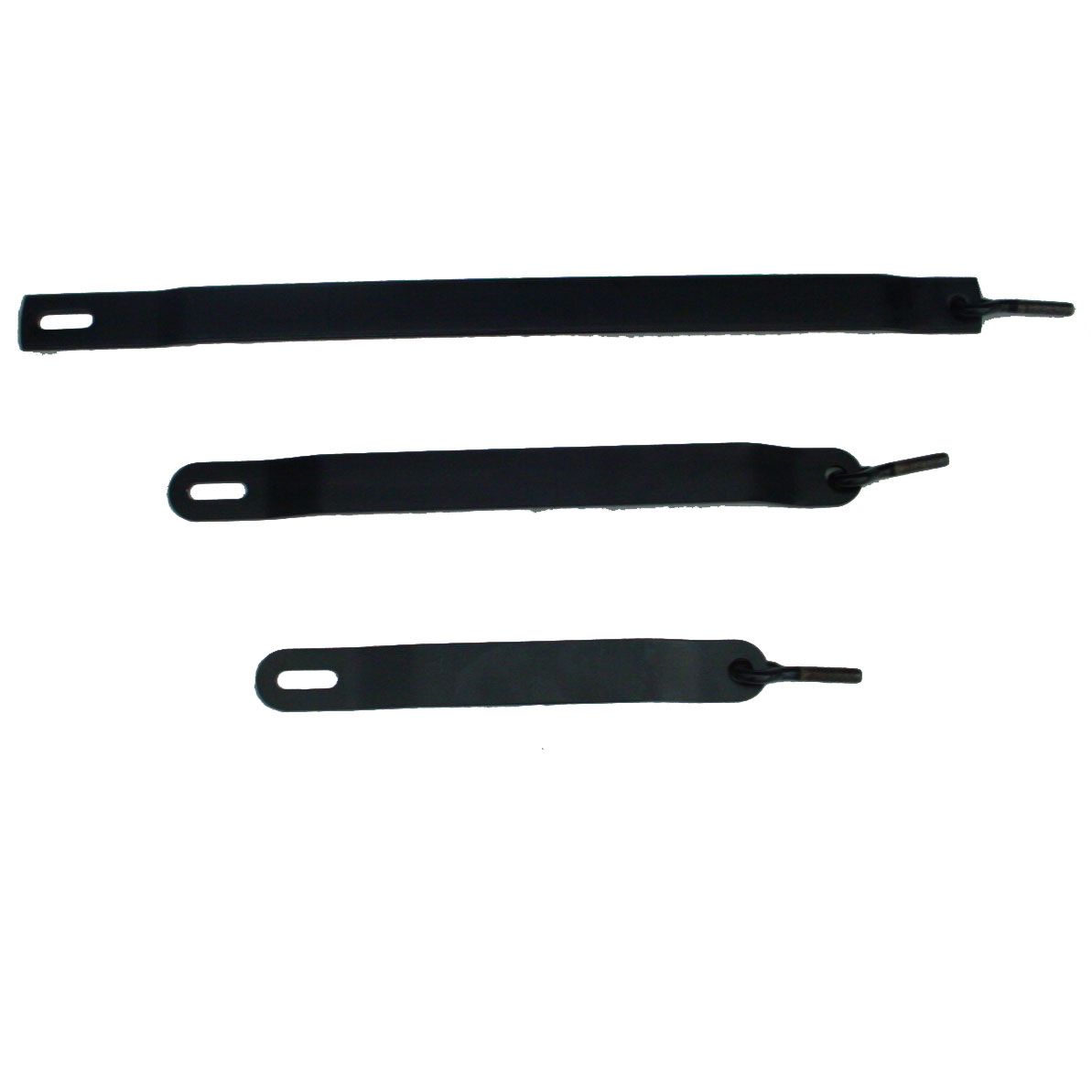

The S-9 offset flat bar offers three lengths for compatible cabinet-security installations. It uses a steel flat-bar section and an eyebolt attachment, allowing the selected length to be matched to the cabinet span and mounting position.
Features and specifications
- Steel section: 1-1/2 inches wide by 3/16 inch thick.
- Available lengths: 12, 17, and 25 inches.
- Model designations: S-9-12, S-9-17, and S-9-25.
- Secured using the supplied 3/8-inch welded eyebolt.
- Smooth black powder-coated finish; eyebolt, washer, and nut are included.
Selection and installation notes
Measure the required span and mounting clearance before choosing a length. The three sizes are individual purchasing options, not a kit containing all three bars. Confirm that the cabinet can accommodate the eyebolt arrangement and that the fitted bar will not obstruct the access needed for authorized maintenance.
