Description

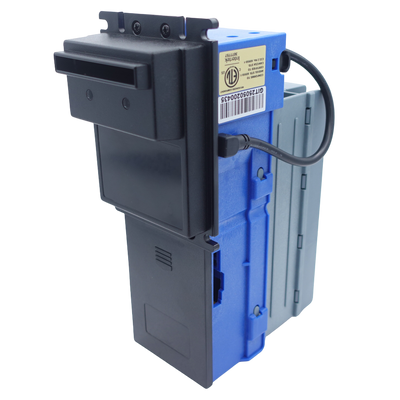

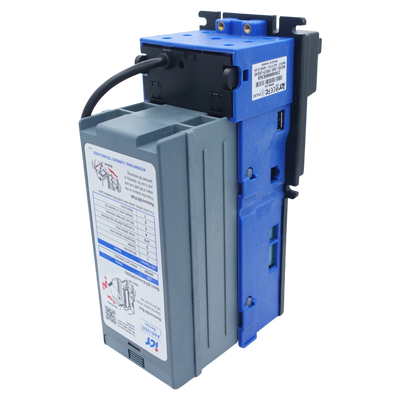

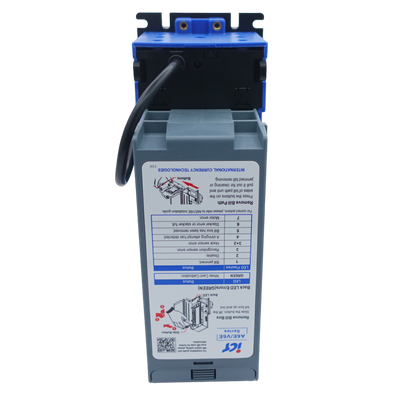

The ICT A6E-15SCP-USD4 Bill Validator (A6E Series) is designed for secure and efficient banknote validation in vending and automated payment systems.
This model operates on 110V AC power and supports the Pulse (STD Pulse) interface, ensuring compatibility with a wide range of machines.
It features a 500-note stacker capacity and comes with a standard bezel, providing reliable bill insertion and consistent operation. This version includes a cover mounting kit, allowing easy installation into compatible machines.
High acceptance accuracy (96% or higher), fast processing (~3 seconds), and reliable performance.
Key Features
- Standard bezel configuration
- Cover mounting kit included
- Four-way bill insertion
- Auto-calibration
- Easy installation and maintenance
- Series: ICT A6E Series
- Interface / Protocol: Pulse (STD Pulse)
- Power Supply: 110V AC
- Stacker Capacity: 500 notes
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds
- Bill Width Accepted: 60–67 mm
- Operating Temperature: 0°C to 55°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$20 |
| Condition | New |
