Description

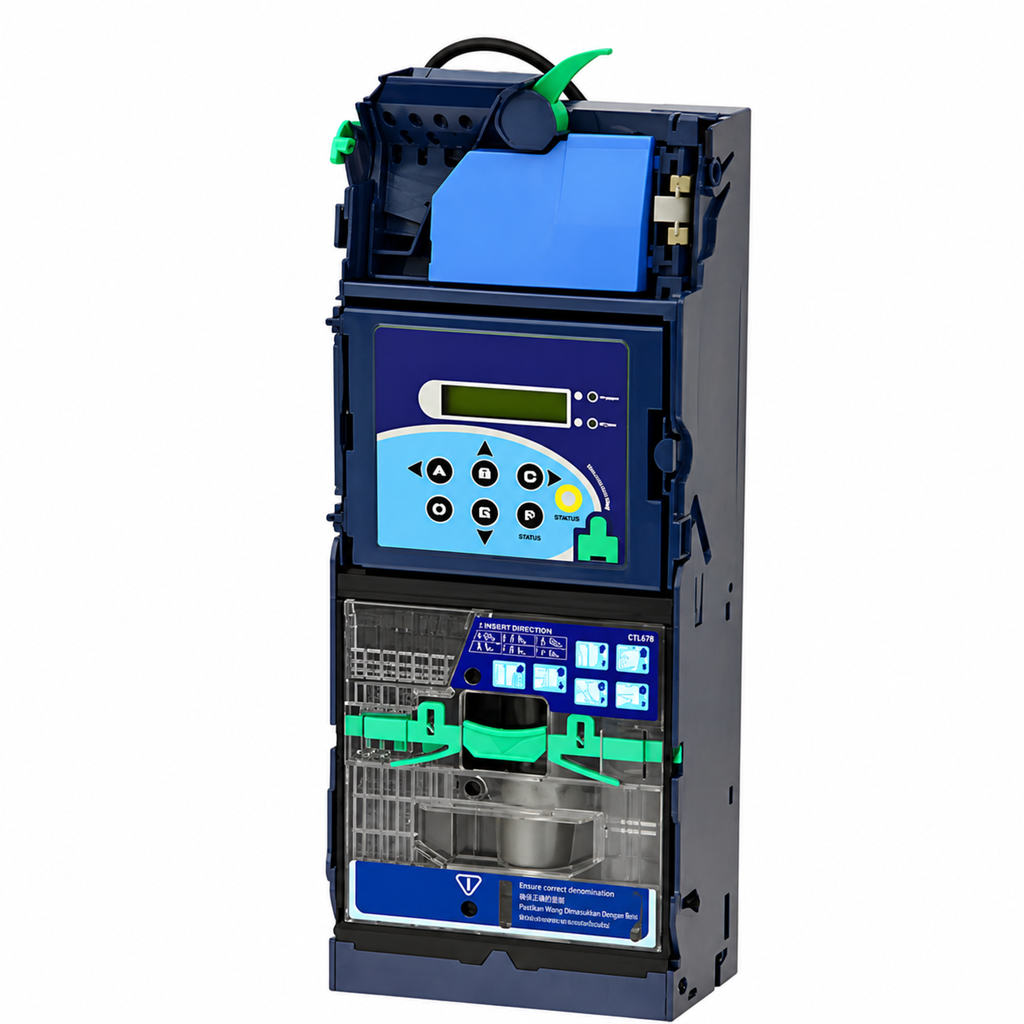

The ICT CC6100M1L001ZMX4B000 Coin Changer (CC6100 Series) is designed for efficient and reliable coin handling in vending and automated payment systems.
It operates on MDB DC power (20V–45V DC range) and supports MDB communication, ensuring compatibility with vending machines and coin-operated systems.
This model features a single cash drawer with six coin tubes, allowing storage and dispensing of multiple coin denominations. It is configured without barcode reader and without escrow function, making it suitable for standard coin change applications.
According to the CC6100 installation guide, the system supports up to six coin types, fast dispensing (~1 coin/sec), and anti-fishing security, ensuring stable and secure performance .
The features section (page 4) also confirms modular design, LCD display, and easy maintenance.
Key Features
- MDB interface support
- Operates on DC power (20V–45V range)
- Six coin tube cassette system
- Single cash drawer configuration
- No barcode reader
- No escrow function
- LCD display for status indication
- Anti-fishing security mechanism
- Modular design for easy maintenance
- Product Type: Coin Changer
- Model: CC6100M1L001ZMX4B000
- Series: ICT CC6100 Series
- Interface / Protocol: MDB
- Power Supply: DC 34V (MDB powered)
- Coin Capacity: 6 tube cassette system
- Accepted Coin Diameter: 16mm – 28mm
- Coin Thickness: 1.2mm – 3.2mm
- Acceptance Speed: Approx. 1 coin per second
- Coin Dispensing: Up to 6 coin types
- Operating Temperature: -15°C to 60°C
- Humidity: Up to 85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | MDB |
| Denomination Acceptance | MXN: 0.05, 1.00, 1.00, 1.00, 5.00, 10.00 |
| Condition | New |
