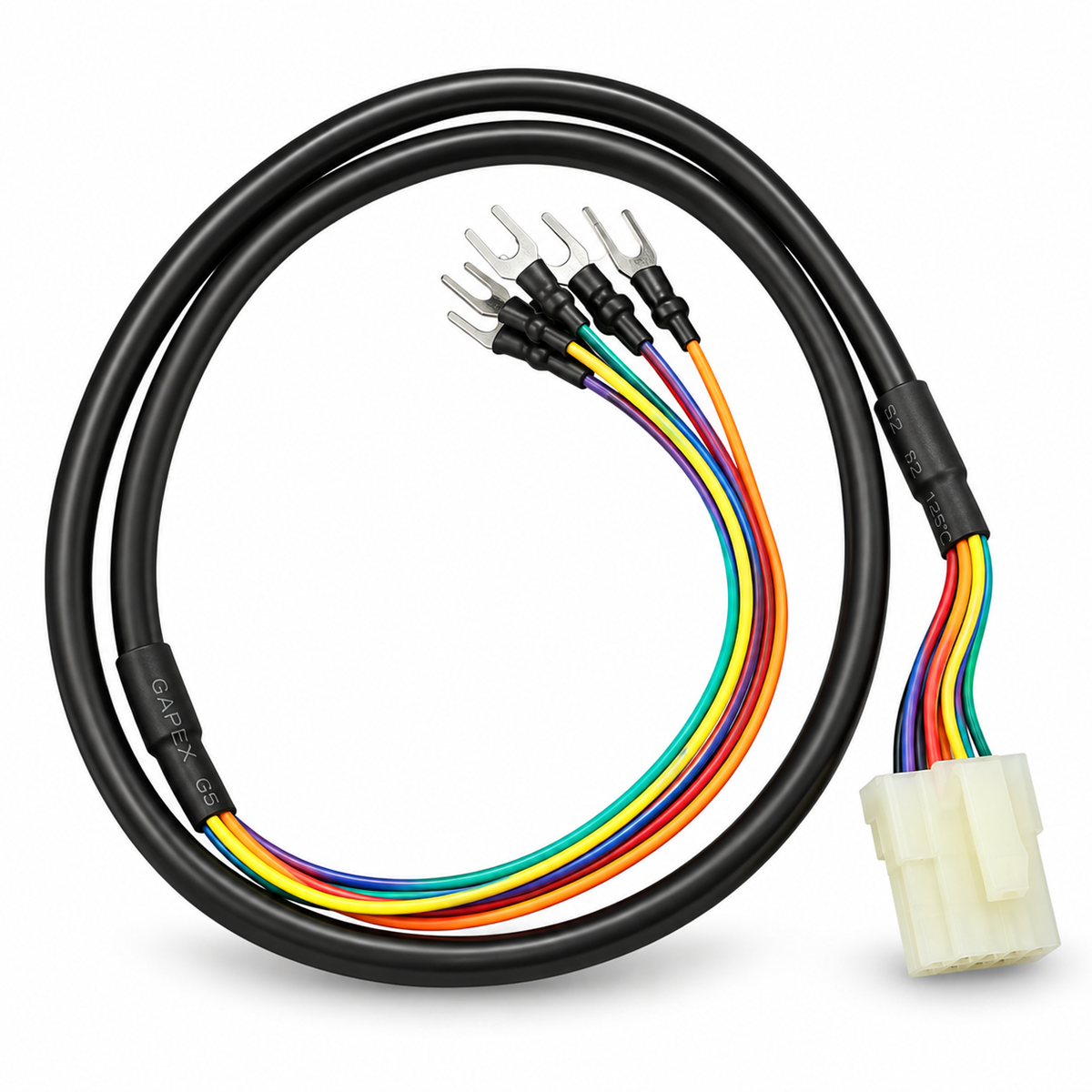

ICT CU-R961-1 Cable is a 12V DC extension cable designed for use with the WEL-RM007. It supports both STD Pulse and ICT Protocol (RS232), making it a reliable solution for ICT bill acceptor and communication applications in vending, amusement, and kiosk equipment.
CU-R961-1 Interface Specifications
| Interface |
Used Voltage |
Usage |
| STD Pulse |
12V DC |
Extension Wire for WEL-RM007 |
| ICT Protocol (RS232) |
12V DC |
Extension Wire for WEL-RM007 |
Connector Type
- AMP 172332-1 (9-Pin Connector)
CU-R961-1 Pin Assignments
| Pin |
Color |
Function |
| Pin 1 |
Yellow |
INHIBIT+ |
| Pin 2 |
Green |
INHIBIT- |
| Pin 5 |
Red |
+12V DC (Power In) |
| Pin 7 |
Blue |
Credit Relay NO |
| Pin 8 |
Purple |
Credit Relay COM |
| Pin 9 |
Orange |
GND (Power In) |
Key Features
- Genuine ICT CU-R961-1 cable
- 12V DC extension cable
- Supports STD Pulse and ICT Protocol (RS232)
- Designed for use with WEL-RM007 or a comparable cable
