Description

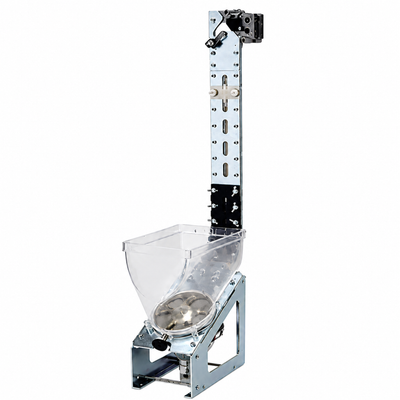

The ICT Leonid-KMH-249HANRO Coin Hopper (Leonid-KMH Series) is designed for reliable and efficient coin dispensing in vending and amusement systems.
This model operates on 24V DC power and uses a hopper mode interface, ensuring compatibility with coin-operated machines.
It features a large coin capacity of approximately 900–1000 coins and is equipped with a non-reversible motor, providing stable and consistent coin payout. The right-facing configuration allows flexible installation depending on machine layout.
Dispensing speed of 6–7 coins per second ensures fast and efficient operation.
Key Features
- Hopper mode interface
- Approx. 900–1000 coin capacity
- Non-reversible motor design
- Right-facing configuration
- Normally open relay output
- Single optical sensor counting
- Dispensing speed: 6–7 coins/second
- Series: ICT Leonid-KMH Series
- Power Supply: 24V DC (21.6–26.4V)
- Coin Diameter: 23mm–26mm
- Coin Thickness: 1.7mm–1.9mm
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 70°C
- Humidity: 0%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 24v |
| Condition | New |
