Description

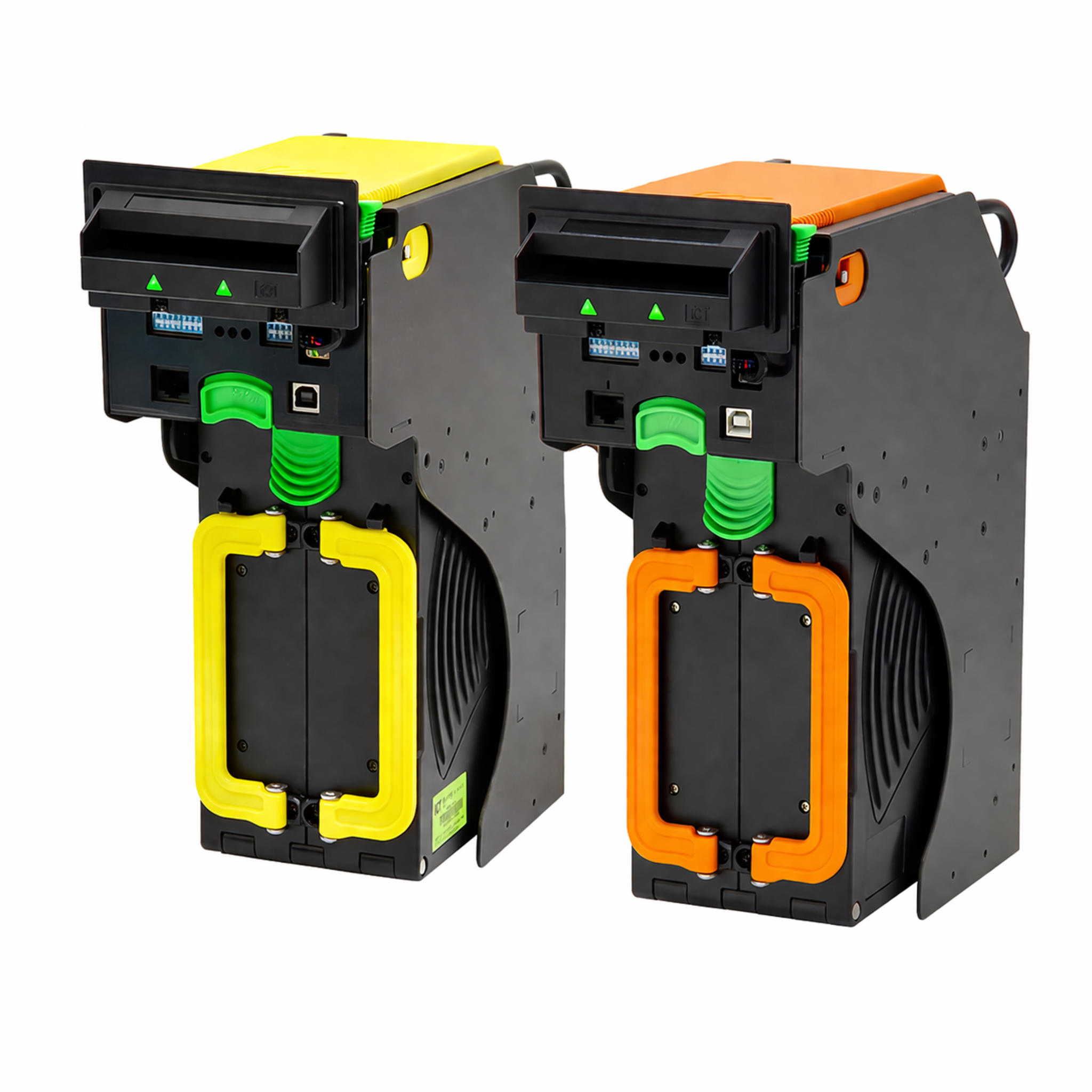

The ICT NBA-D104-5FU-MX5 Bill Validator (NBA Series) is designed for high-security bill validation in vending, gaming, and automated systems.
It supports multiple communication protocols including Pulse, RS232, and ICT protocol, allowing flexible system integration.
This model features a 500 note cashbox and supports bill widths between 62mm–83mm, making it suitable for Mexican currency handling.
The NBA series also includes barcode reading functionality, improved optical detection, and fast transaction processing for reliable operation in high-traffic environments .
Key Features
- High security optical bill detection system
- Pulse, RS232, and ICT protocol communication
- 500 note cashbox
- Supports 62mm–83mm bill width
- Four-way bill insertion
- Barcode reading function (coupon/ticket support)
- Auto bill centering function
- Double lock cashbox or slide button cashbox
- Fast software upgrade support
- Interface / Protocol: Pulse / RS232 / ICT Protocol
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | MXP: 20, 50, 100, 200, 500 |
| Condition | New |
