Description

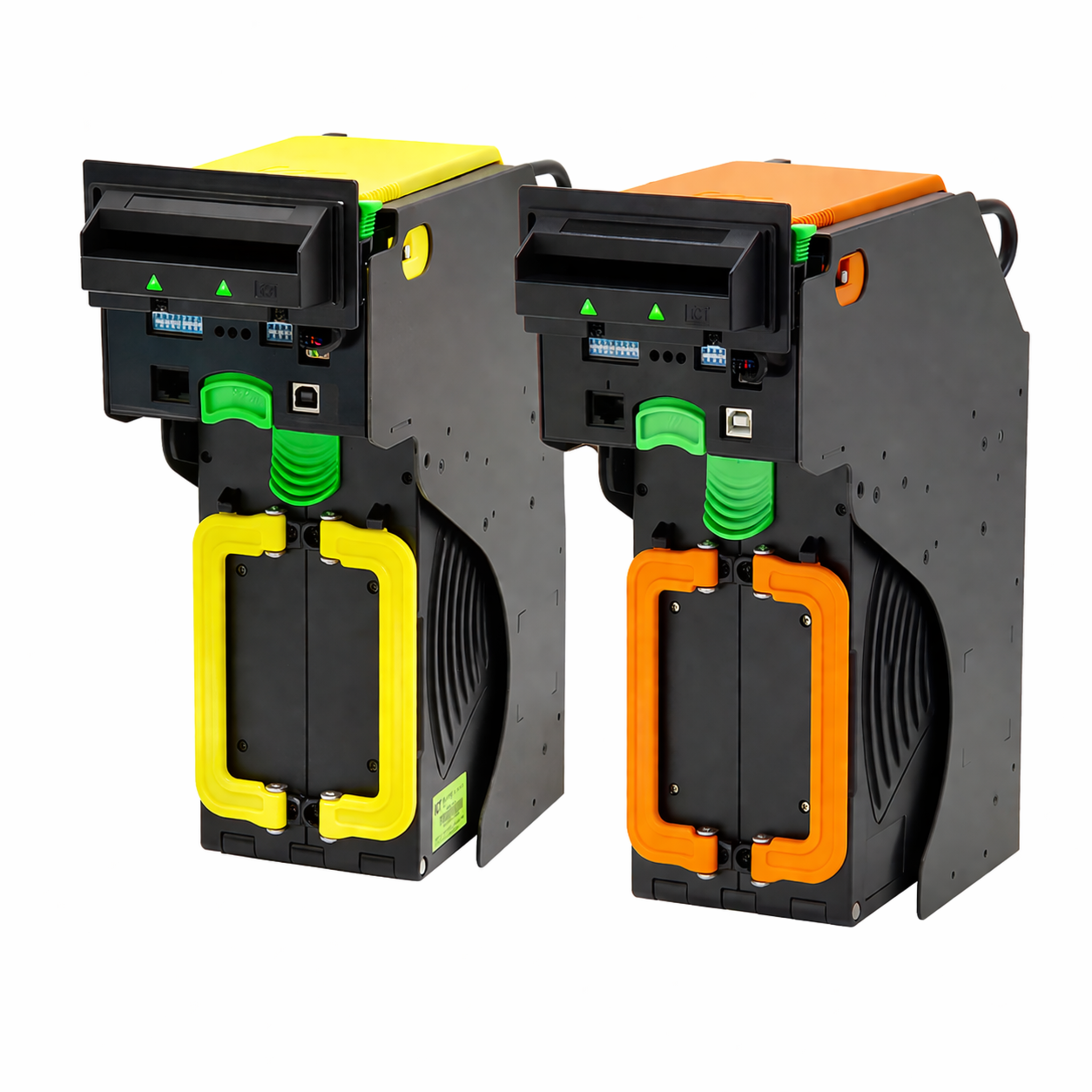

The ICT NBA-D10R-5BU-MX5 Bill Validator (NBA Series) is designed for high-security bill validation in vending, gaming, and automated systems.
It operates on 12–24V DC power and supports Pulse and RS232 communication, allowing flexible integration with compatible systems.
This model features IR anti-fishing technology, barcode reading, and RFID support, providing enhanced security and advanced transaction capabilities.
It includes a 500 note double-locked cashbox with yellow shell and supports bill widths from 62mm to 83mm, making it suitable for Mexican currency applications.
According to the NBA installation guide, the validator includes high acceptance accuracy, four-way bill insertion, and fast processing for reliable operation .
Key Features
- High security optical bill detection system
- Pulse (discrete) and RS232 communication
- IR anti-fishing (anti-string) technology
- Barcode reading function
- RFID support
- 500 note double-locked cashbox (yellow shell)
- Supports 62mm–83mm bill width
- Four-way bill insertion
- Auto bill centering function
- Fast firmware upgrade support
- Interface / Protocol: Pulse / RS232
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | MXP: 20, 50, 100, 200, 500 |
| Condition | New |
