Description

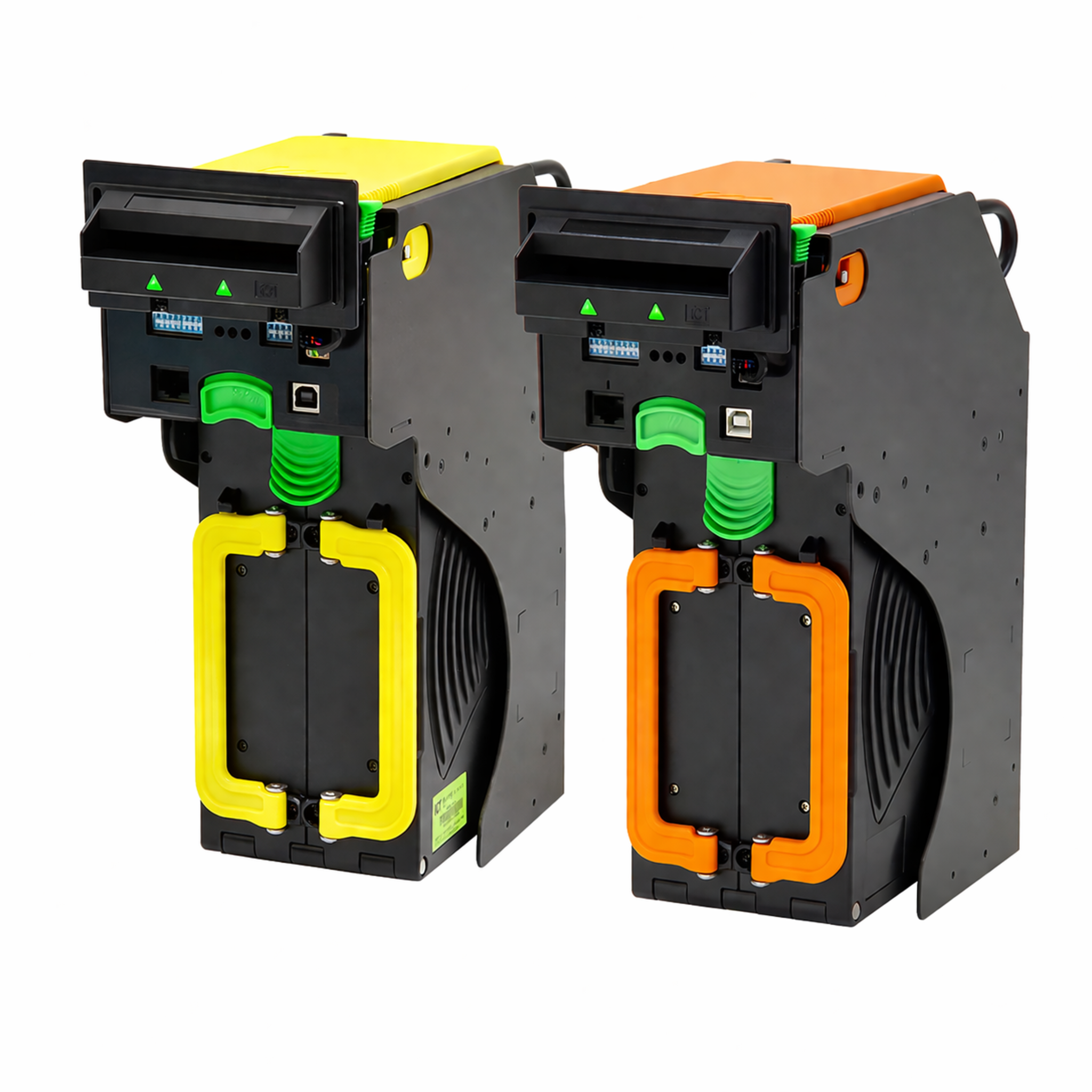

The ICT NBA-D1AR-5SU-US6 Bill Validator (NBA Series) is designed for advanced bill validation in vending, gaming, and automated payment systems.
It operates on DC 12V–24V power and supports Pulse and CCTalk communication, ensuring compatibility with a wide range of systems.
This model includes IR Anti-fish technology, along with barcode and RFID support, providing enhanced security and functionality for modern applications.
It features a 500 note double locked cashbox for secure cash handling and supports a wide range of U.S. bill denominations. The NBA series also offers high acceptance accuracy and stable performance in demanding environments .
Key Features
- High security optical bill detection system
- Pulse and CCTalk communication
- IR Anti-fish (anti-string) technology
- Barcode reading support (coupon/ticket)
- RFID support
- 500 note double locked cashbox
- Four-way bill insertion
- Auto bill centering function
- Double lock cashbox design
- Fast firmware upgrade support
- Interface / Protocol: Pulse / CCTalk
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse, ccTalk |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | USD: $1, $5, $10, $20, $50, $100 |
| Condition | New |
