Description

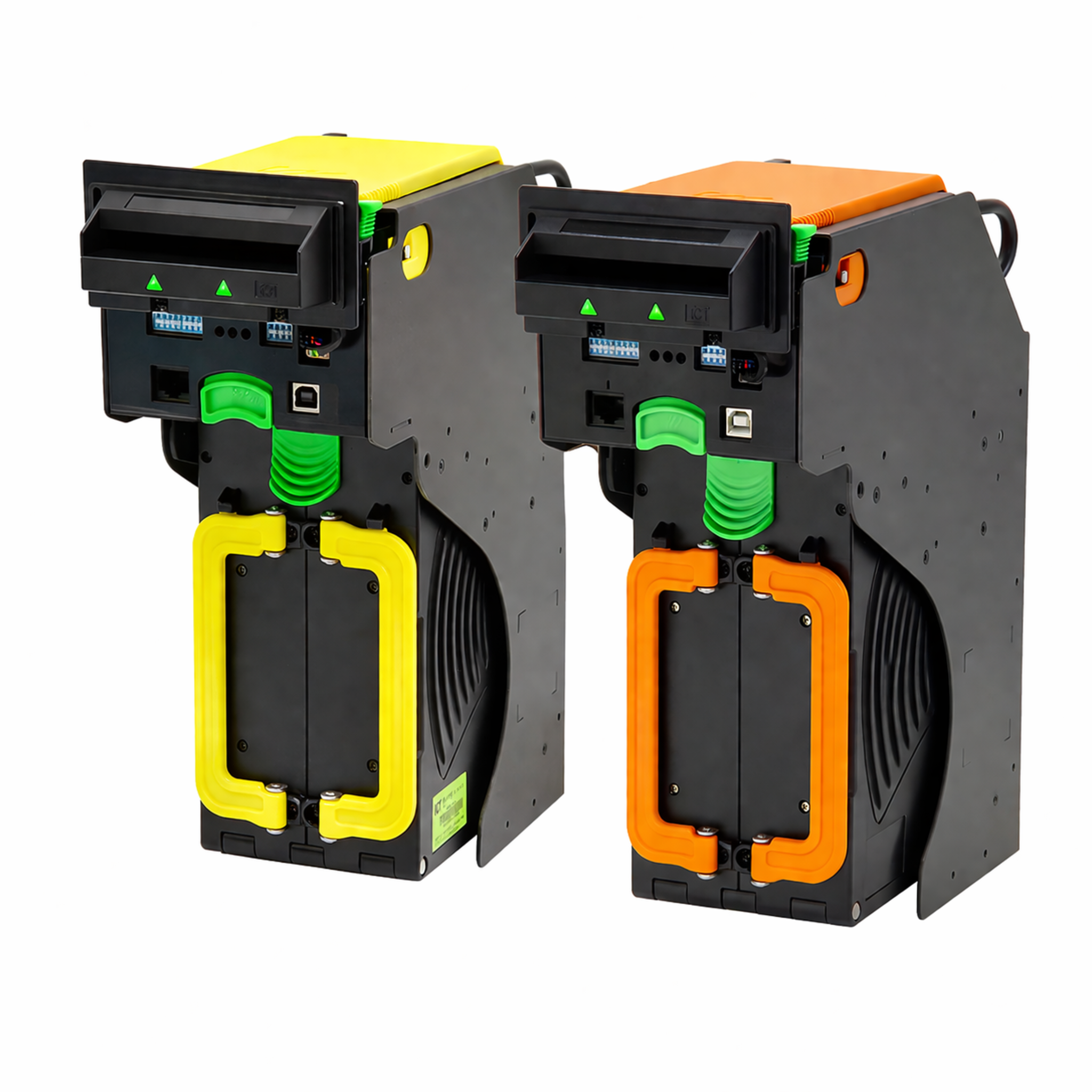

The ICT NBA-E104-5EU-MX5A Bill Validator (NBA Series) is designed for reliable bill validation in vending, gaming, and automated systems.
It operates on DC 12V–24V power and supports Pulse communication, allowing integration with compatible systems.
This model includes IR Anti-fish technology for protection against stringing and fraud attempts. It does not include barcode or RFID functionality, making it a simplified and cost-effective solution.
It features a 500 note double lock cashbox with orange shell, providing secure cash storage. The validator is supplied without harnesses, so compatible wiring must be installed separately.
According to the NBA installation guide, the series provides high acceptance accuracy, auto bill centering, and stable performance in demanding environments .
Key Features
- High security optical bill detection system
- Pulse communication
- IR Anti-fish (anti-string) protection
- No barcode or RFID support
- 500 note double lock cashbox (orange shell)
- No harness included
- Four-way bill insertion
- Auto bill centering function
- Fast firmware upgrade support
- Series: ICT NBA Series
- Interface / Protocol: Pulse
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | MXP: 20, 50, 100, 200, 500 |
| Condition | New |
