Description

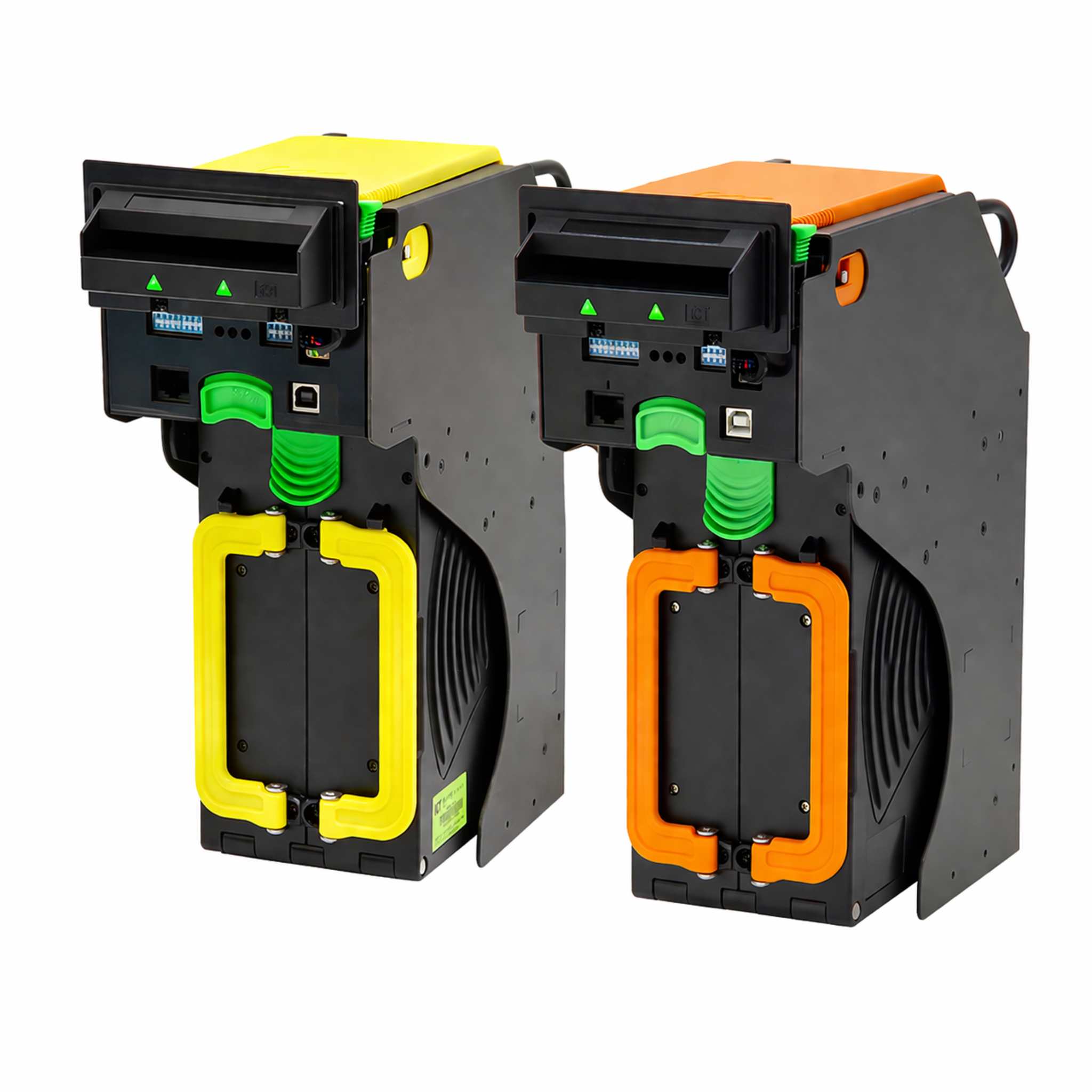

The ICT NBA-E1AR-5BU-MX5 Bill Validator (NBA Series) is designed for secure and reliable bill validation in vending, gaming, and automated payment systems.
It operates on DC 12V–24V power and supports Pulse communication, allowing integration with compatible systems.
This model is equipped with IR Anti-fish technology to prevent fraud and improve operational security. It features a 500 note single lock cashbox for efficient cash handling and includes the WEL-RNJ11 harness for installation.
Unlike advanced NBA models, this version does not include barcode or RFID support, making it a cost-effective solution for standard bill validation needs.
According to the NBA installation guide, the validator provides high acceptance accuracy, four-way bill insertion, and stable performance in various environments .
Key Features
- High security optical bill detection system
- Pulse communication
- IR Anti-fish (anti-string) technology
- 500 note single lock cashbox
- WEL-RNJ11 harness included
- Four-way bill insertion
- Auto bill centering function
- Easy installation and maintenance
- Interface / Protocol: Pulse
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | MXP: 20, 50, 100, 200, 500 |
| Condition | New |
