Description

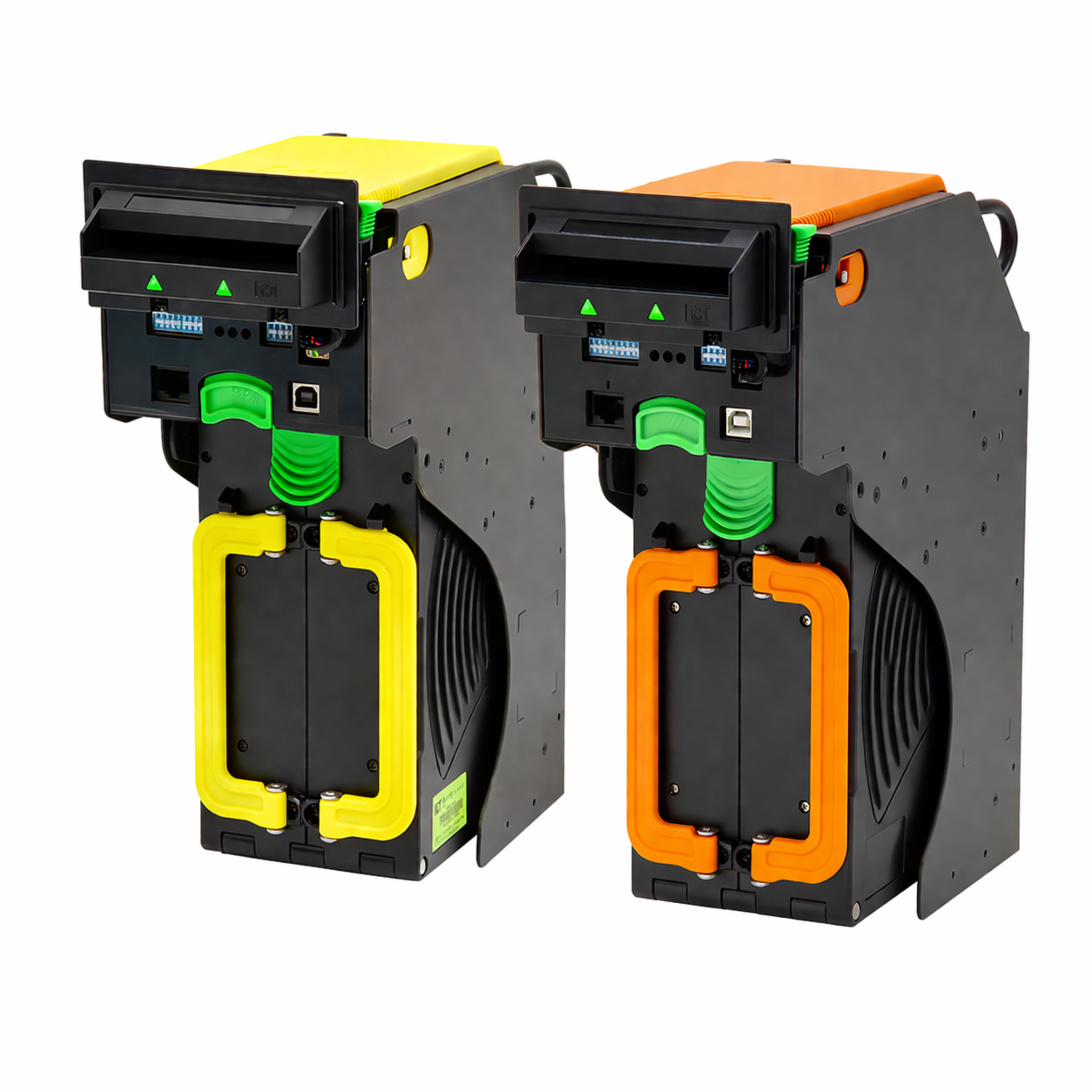

The ICT NBA-E1AR-5BU-US6 Bill Validator (NBA Series) is designed for secure and reliable bill validation in vending, gaming, and automated payment systems.
It operates on DC 12V–24V power and supports Pulse communication, allowing integration with compatible systems.
This model includes IR Anti-fish technology to help prevent fraud and improve operational security. It features a 500 note single lock cashbox and includes the WEL-RNJ11 harness for installation.
This version does not include barcode or RFID support, making it a cost-effective solution for standard bill validation applications.
According to the NBA installation guide, the validator supports four-way bill insertion, high acceptance accuracy, and stable performance in various environments .
Key Features
- High security optical bill detection system
- Pulse communication
- IR Anti-fish (anti-string) technology
- 500 note single lock cashbox
- WEL-RNJ11 harness included
- Four-way bill insertion
- Auto bill centering function
- Easy installation and maintenance
- Interface / Protocol: Pulse
- Power Supply: 12V–24V DC (11.4V–25.2V DC)
- Bill Box Capacity: Approx. 500 bills
- Bill Width Accepted: 62mm–83mm
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 5 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Denomination Acceptance | USD: $1, $5, $10, $20, $50, $100 |
| Condition | New |
