Description

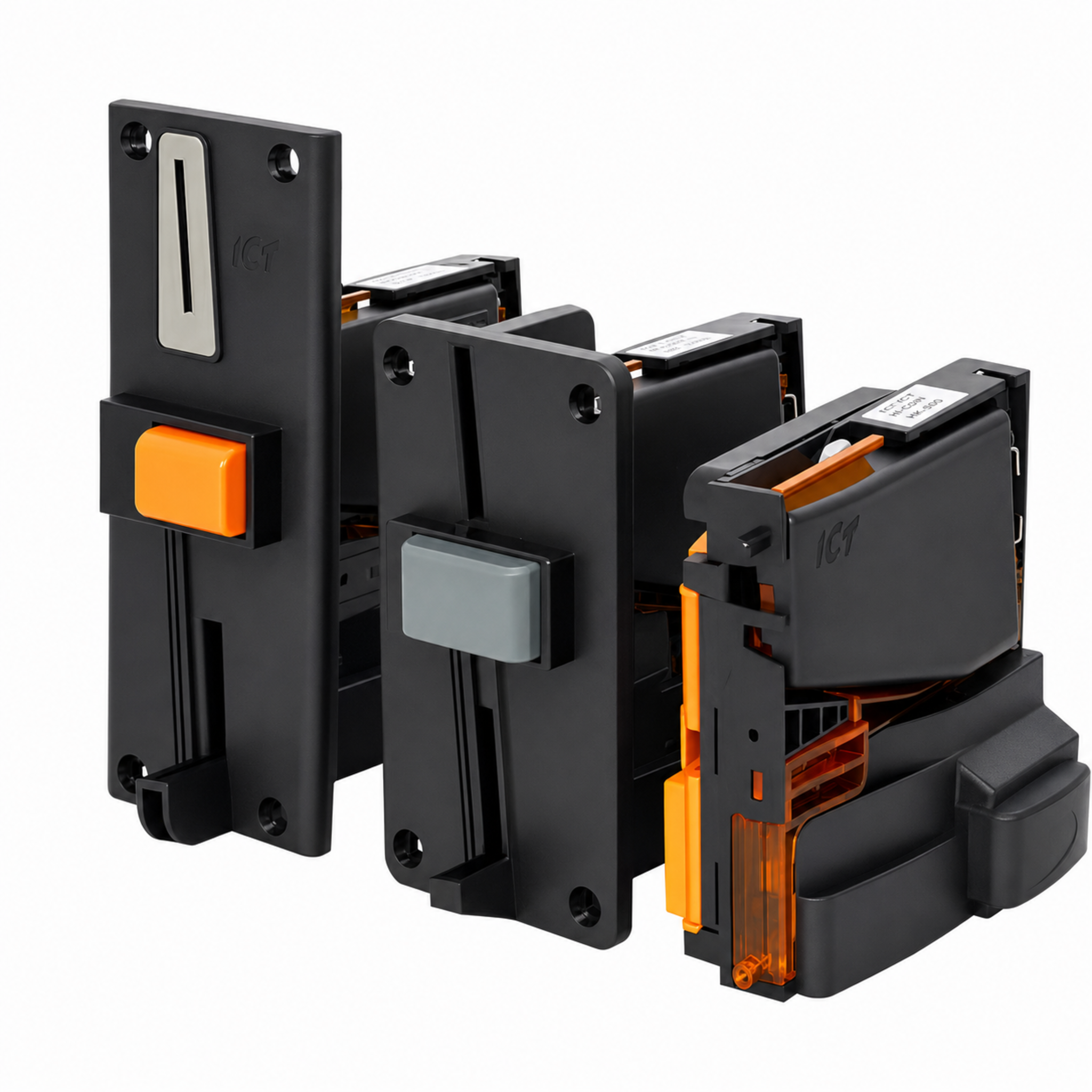

The ICT SCA1-SCMUS4 Coin Acceptor (SCA1 Series) is designed for reliable and secure coin validation in vending and automated payment systems.
This model operates on 12V or 34V DC power and supports Pulse, RS232, and MDB interfaces, ensuring compatibility with a wide range of machines.
It features a side entry design with short panel bezel, allowing flexible installation in compact machine layouts. The unit provides smooth coin handling with controlled routing to the cashbox.
The device is configured to accept USD coins and uses advanced validation technology to reduce counterfeit acceptance.
High acceptance rate of 96% or higher and fast processing ensure stable and efficient operation.
Key Features
- Multi-interface support (Pulse, RS232, MDB)
- Side entry coin insertion design
- Short panel bezel configuration
- Configured for USD coins
- High acceptance rate (96% or higher)
- Advanced counterfeit detection
- Fast coin processing (up to 3 coins/sec Pulse / 2 coins/sec ccTalk/MDB)
- Series: ICT SCA1 Series
- Power Supply: 12V DC / 34V DC
- Coin Diameter: 29mm
- Coin Thickness: 2.5mm
- Acceptance Speed: Up to 3 coins/sec (Pulse/Parallel), 2 coins/sec (ccTalk/MDB)
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -25°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v34v |
| Supported Protocols | Pulse, MDB |
| Denomination Acceptance | USD: 0.05, 0.10, 0.25, 0.25, 0.25, 1.00 |
| Condition | New |
