Description

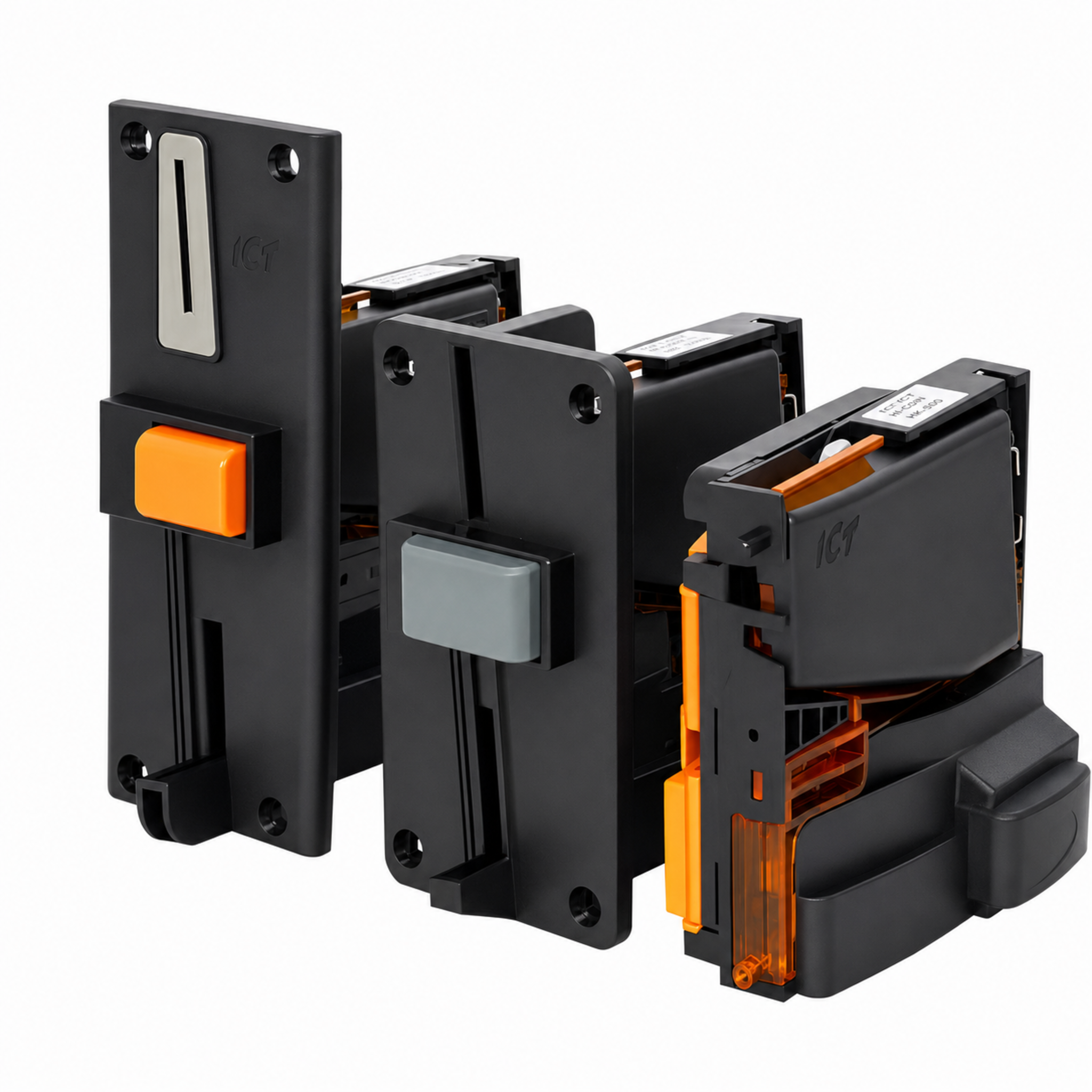

The ICT SCA1-WOCMX6 Coin Acceptor (SCA1 Series) is designed for reliable and secure coin validation in vending and automated payment systems.
This model operates on 12V or 34V DC power and supports the ccTalk interface, ensuring compatibility with modern vending and payment systems.
It features a top entry and bottom exit (Top in / Bottom out) design with a short panel bezel, allowing compact installation and smooth coin flow.
The device is configured to accept Mexico coins and uses advanced validation technology to reduce counterfeit acceptance.
High acceptance rate of 96% or higher and fast processing ensure stable and efficient operation.
Key Features
- ccTalk interface support
- Top entry / Bottom exit design
- Short panel bezel configuration
- Configured for Mexico coins
- High acceptance rate (96% or higher)
- Advanced counterfeit detection
- Fast coin processing (up to 2 coins/sec ccTalk)
- Series: ICT SCA1 Series
- Power Supply: 12V DC / 34V DC
- Coin Diameter: 33mm
- Coin Thickness: 2.5mm
- Acceptance Speed: Up to 2 coins/sec (ccTalk/MDB)
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -25°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v34v |
| Supported Protocols | ccTalk |
| Denomination Acceptance | MXN: 0.50, 1, 2, 5, 10 |
| Condition | New |
