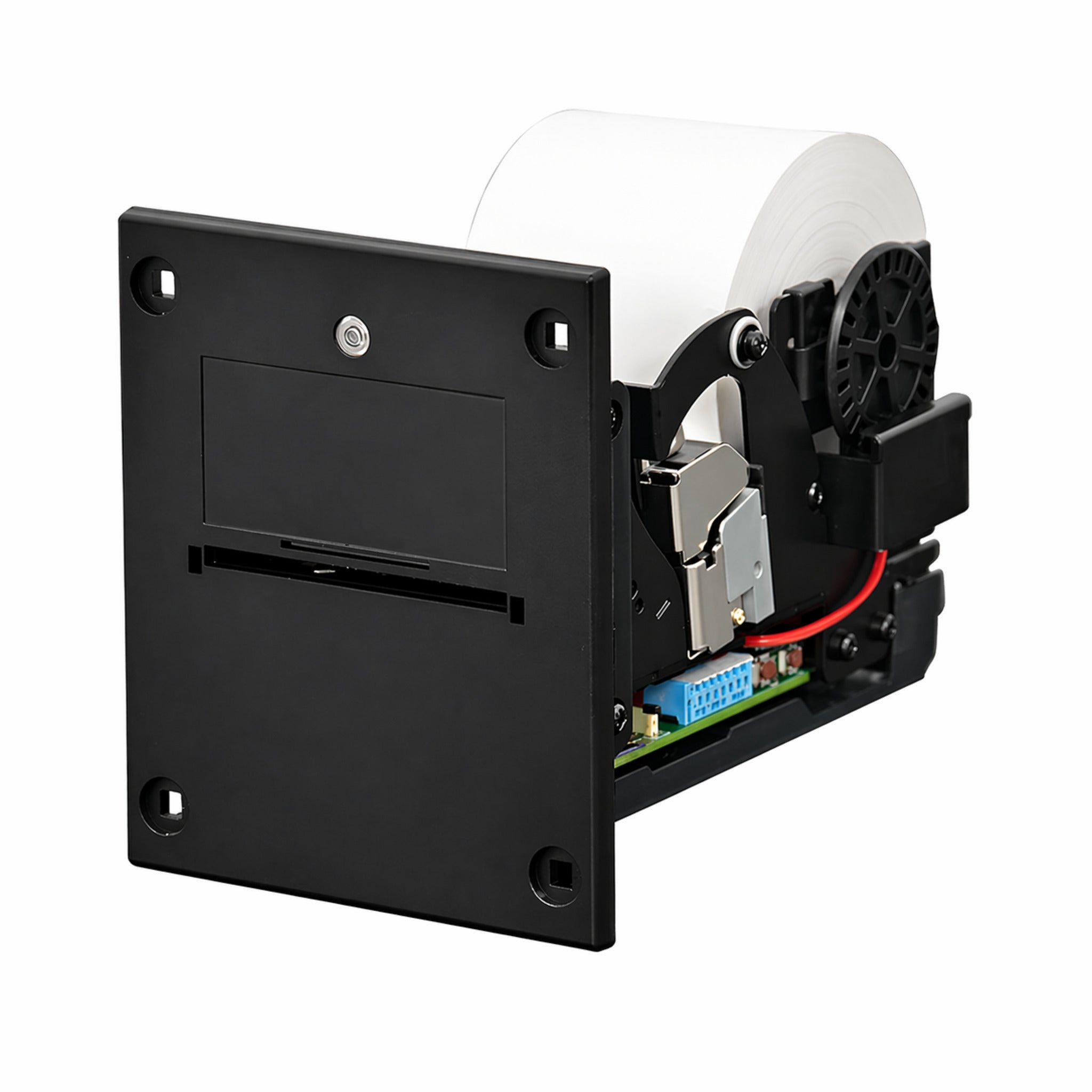

The ICT SP1-BNS Smart Printer (SP1 Series) is a reliable thermal printer designed for ticketing, vending, gaming, and kiosk systems.

The SP1 series includes a built-in real-time clock that allows printing of issue time on each ticket and provides daily and summary transaction reports .

It offers user-friendly tools that allow customers to design custom print formats and logos, which can be stored for future use via memory storage.

According to the model definition (page 3), the BNS variant is:
👉 With bezel and without anti-drag mechanism

This model supports multiple interfaces and ESC/POS command system, making it flexible for integration into various systems.

Key Features

• Built-in real-time clock for timestamp printing
• Daily and summary transaction reporting
• Full and partial auto cut function
• Fast thermal printing speed (up to 90 mm/sec)
• Bezel design (without anti-drag)
• Supports small and large paper rolls
• Multiple interfaces (RS232, USB, Pulse, Hopper, ESC/POS)
• Micro SD card support for data storage
• Easy installation and low maintenance
• Product Type: Thermal Printer
• Model: SP1-BNS
• Series: ICT SP1 Smart Printer
• Printing Method: Thermal dot-line
• Printing Speed: Up to 90 mm/sec
• Resolution: 8 dots/mm
• Paper Width: 56 ± 0.5 mm
• Paper Roll:
  • Small: 78 mm diameter
  • Large: 130 mm diameter
• Interface: RS232, USB, Pulse, Hopper, ESC/POS
• Power Supply:
  • 12V DC (10.8–13.2V)

• Power Consumption:
  • 12V: up to 72W

• Print Head Life: 50 km
• Cutter Life: 500,000 cuts
• Operating Temperature: 0°C to 50°C
• Humidity: 30%–85% RH (non-condensing)
