Description

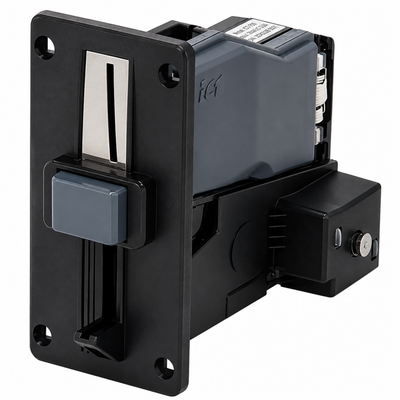

The ICT UCA1-220FSPUS4 Coin Acceptor (UCA Series) is designed for reliable and secure coin validation in vending and automated payment systems.
This model operates on 12V DC power and supports the Pulse interface, ensuring compatibility with a wide range of coin-operated machines.
It features a short panel design with 2.8mm coin opening, allowing compact installation while maintaining smooth coin flow.
The unit is configured to accept USD coins ($0.05, $0.10, $0.25, $1.00) and provides stable validation with mechanical and electrical anti-string protection.
High acceptance rate of 96% or higher and fast processing ensure efficient operation.
Key Features
- Pulse interface support
- Short panel compact design
- 2.8mm coin opening
- Configured for USD coins
- Mechanical and electrical anti-string protection
- Up to 8 coin channels supported
- Fast coin processing (up to 3 coins/sec)
- Series: ICT UCA Series
- Power Supply: 12V DC (10.8–13.2V)
- Acceptance Rate: 96% or higher
- Acceptance Speed: Approx. 3 coins/sec
- Coin Diameter Range: 20mm–32mm
- Coin Thickness Range: 1.2mm–3.2mm
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 75°C
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Denomination Acceptance | USD: $0.05, $0.10, $0.25, $1.00 |
| Condition | New |
