Description

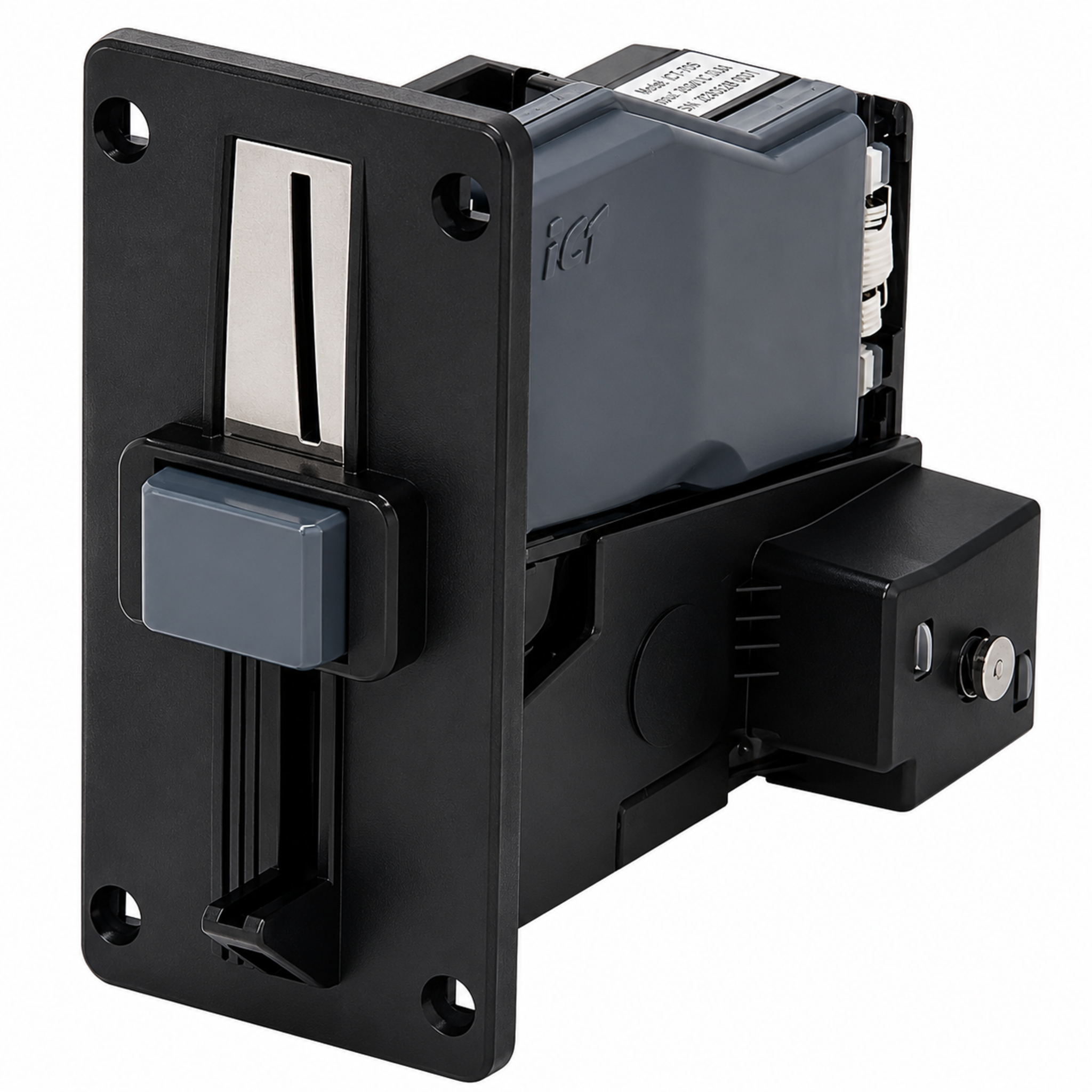

The ICT UCAES21DFSRCA3 Coin Acceptor (UCAES Series) is designed for reliable and secure coin validation in vending and outdoor payment environments.
This model operates on 12V DC power and supports the RS232 interface, ensuring compatibility with a wide range of systems.
It features a short panel design with 2.4mm coin opening and includes waterproof protection, making it suitable for demanding or semi-outdoor conditions.
The unit is configured to accept Canadian coins ($0.25, $1.00, $2.00) and provides stable validation with mechanical and electrical anti-string protection.
High acceptance rate of 96% or higher and fast processing ensure efficient and reliable operation.
Key Features
- RS232 interface support
- Waterproof design (UCAES series)
- Short panel compact configuration
- 2.4mm coin opening
- Configured for Canadian coins
- Mechanical and electrical anti-string protection
- Up to 8 coin channels supported
- Fast coin processing (approx. 3 coins/sec)
- Series: ICT UCAES Series
- Power Supply: 12V DC (10.8–13.2V)
- Acceptance Rate: 96% or higher
- Acceptance Speed: Approx. 3 coins/sec
- Coin Diameter Range: 20mm–32mm
- Coin Thickness Range: 1.2mm–3.2mm
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 75°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Denomination Acceptance | CAD: $0.25, $1.00, $2.00 |
| Condition | New |
