Description

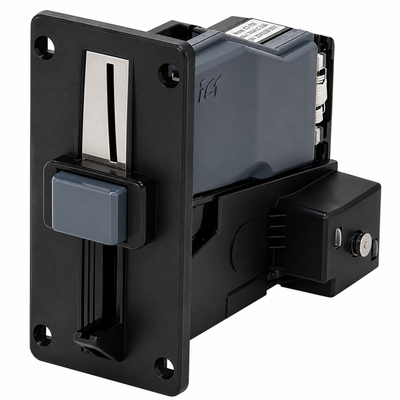

The ICT UCAES22DFSPMX5 Coin Acceptor (UCAES Series) is designed for reliable and secure coin validation in vending and outdoor payment environments.
This model operates on 12V DC power and supports the Pulse interface, ensuring compatibility with a wide range of coin-operated systems.
It features a side entry design with short panel bezel and 2.8mm coin opening, allowing flexible installation in compact machines.
The unit includes waterproof protection, making it suitable for outdoor or high-humidity environments.
It is configured to accept Mexico coins (0.50, 1.00, 2.00, 5.00, 10.00) and provides stable validation with mechanical and electrical anti-string protection.
High acceptance rate of 96% or higher and fast processing ensure efficient and reliable performance.
Key Features
- Pulse interface support
- Waterproof design (UCAES series)
- Side entry coin insertion
- Short panel compact configuration
- 2.8mm coin opening
- Configured for Mexico coins
- Mechanical and electrical anti-string protection
- Up to 8 coin channels supported
- Fast coin processing (approx. 3 coins/sec)
- Series: ICT UCAES Series
- Power Supply: 12V DC (10.8–13.2V)
- Acceptance Rate: 96% or higher
- Acceptance Speed: Approx. 3 coins/sec
- Coin Diameter Range: 20mm–32mm
- Coin Thickness Range: 1.2mm–3.2mm
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 75°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Denomination Acceptance | MXN: 0.50, 1, 2, 5, 10 |
| Condition | New |
