Description

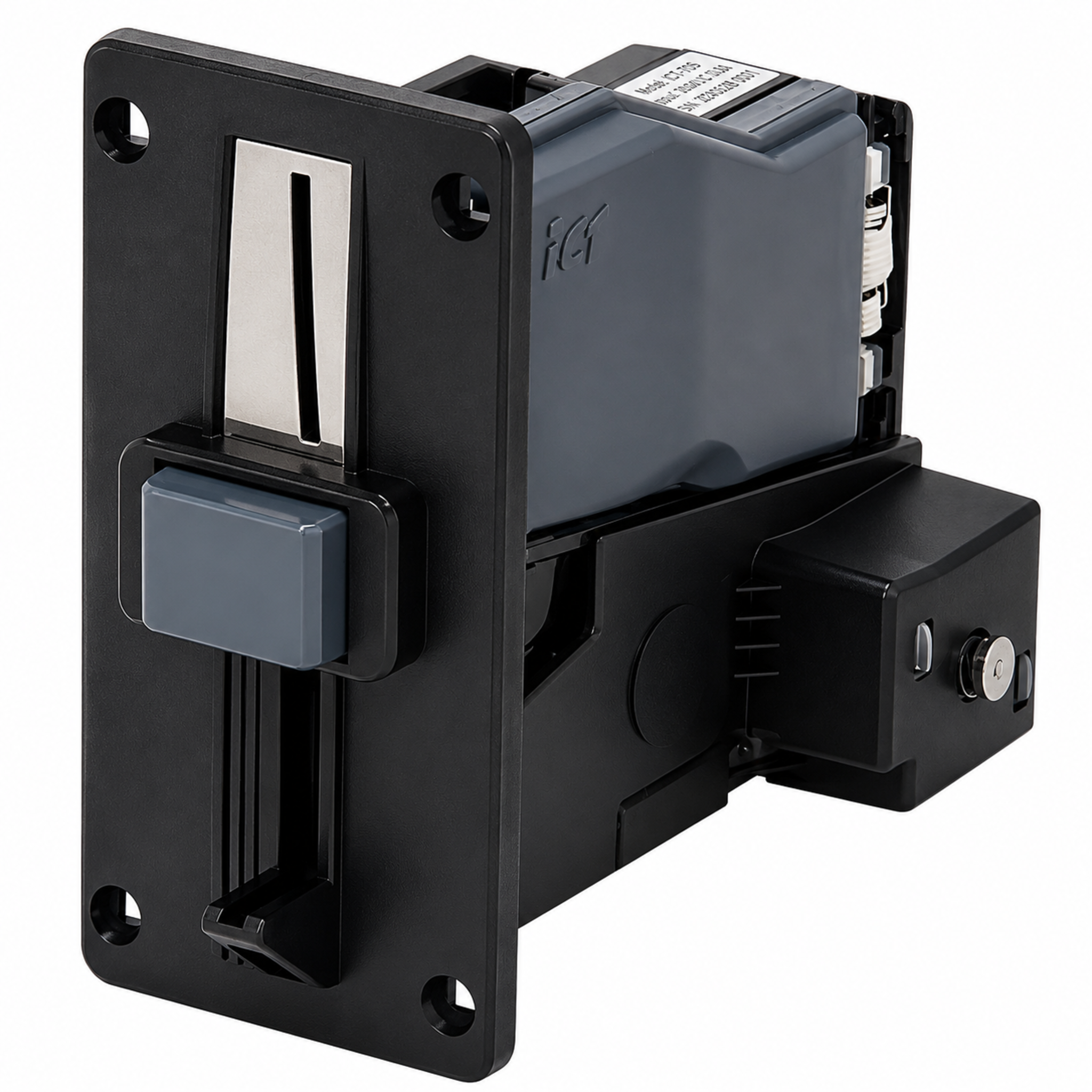

The ICT UCAES22DFSRUS5 Coin Acceptor (UCAES Series) is designed for reliable and secure coin validation in vending and automated payment systems.
This model operates on 12V DC power and supports the RS232 interface, ensuring compatibility with a wide range of machines.
It features a short panel design with 2.8mm coin opening, allowing compact installation while maintaining smooth coin flow.
This version is configured without waterproofing, making it ideal for indoor applications.
The unit is configured to accept USD coins ($0.05, $0.10, $0.25, $1.00) and tokens, providing flexible payment options.
High acceptance rate of 96% or higher and fast processing ensure efficient and reliable operation.
Key Features
- RS232 interface support
- Short panel compact design
- 2.8mm coin opening
- Configured for USD coins and tokens
- Mechanical and electrical anti-string protection
- Up to 8 coin channels supported
- Fast coin processing (approx. 3 coins/sec)
- Series: ICT UCAES Series
- Power Supply: 12V DC (10.8–13.2V)
- Acceptance Rate: 96% or higher
- Acceptance Speed: Approx. 3 coins/sec
- Coin Diameter Range: 20mm–32mm
- Coin Thickness Range: 1.2mm–3.2mm
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 75°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Denomination Acceptance | USD: $0.05, $0.10, $0.25, $1.00 |
| Condition | New |
