Description

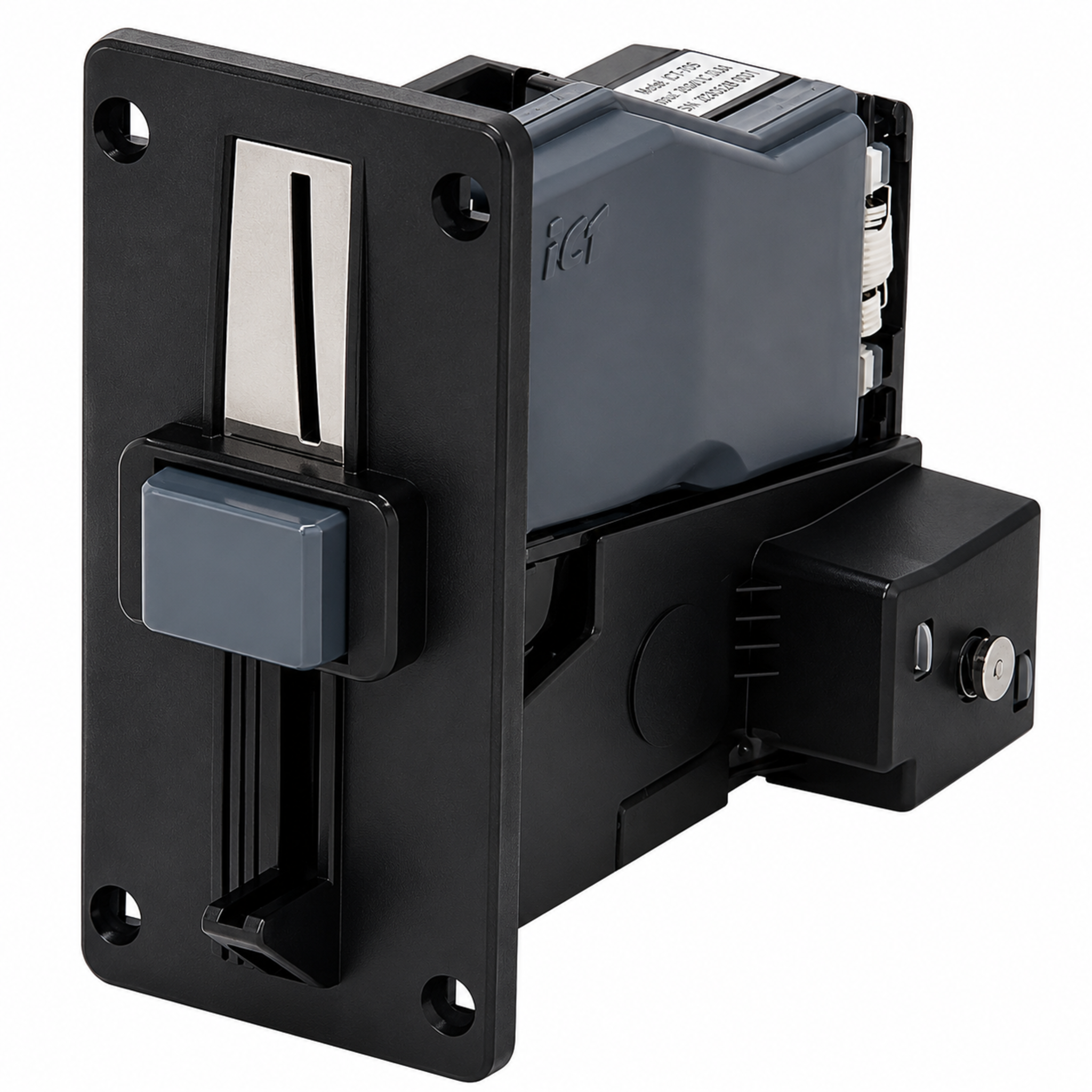

The ICT UCAES23DFSRGB5 Coin Acceptor (UCAES Series) is designed for reliable and secure coin validation in vending and outdoor payment environments.
This model operates on 12V DC power and supports the RS232 interface, ensuring compatibility with a wide range of machines.
It features a side entry design with short panel bezel and 3.3mm coin opening, allowing flexible installation in compact machine layouts.
The unit includes waterproof protection, making it suitable for outdoor or high-humidity environments.
It is configured to accept UK Pound coins (0.10, 0.20, 0.50, 1.00, 2.00) and provides stable validation with mechanical and electrical anti-string protection.
High acceptance rate of 96% or higher and fast processing ensure efficient and reliable performance.
Key Features
- RS232 interface support
- Waterproof design (UCAES series)
- Side entry coin insertion
- Short panel compact configuration
- 3.3mm coin opening
- Configured for UK Pound coins
- Mechanical and electrical anti-string protection
- Up to 8 coin channels supported
- Fast coin processing (approx. 3 coins/sec)
- Series: ICT UCAES Series
- Power Supply: 12V DC (10.8–13.2V)
- Acceptance Rate: 96% or higher
- Acceptance Speed: Approx. 3 coins/sec
- Coin Diameter Range: 20mm–32mm
- Coin Thickness Range: 1.2mm–3.2mm
- Operating Temperature: -5°C to 60°C
- Storage Temperature: -20°C to 75°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Denomination Acceptance | UK Pound Coins: £0.10, £0.20, £0.50, £1.00, £2.00 |
| Condition | New |
